High-Powered Active Subwoofer for Line Array Systems
The

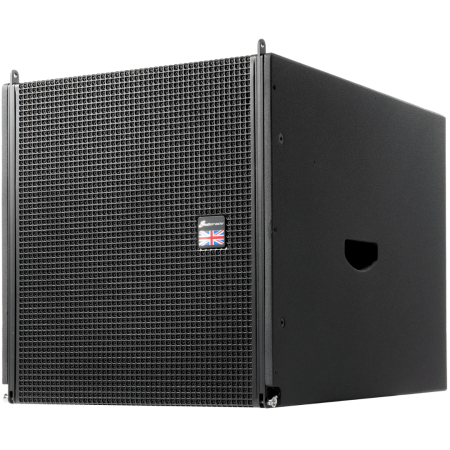

Studiomaster V6SA is a rugged, high-performance
active subwoofer module designed to pair seamlessly with the V6A line array speakers. Featuring a
single 15" LF driver with a massive 4" (100mm) voice coil and an integrated
1200W amplifier, this unit delivers deep, controlled bass with a peak output of
130 dB SPL. The lightweight, tour-ready design includes built-in DSP, providing precision tuning and system flexibility for professional live sound and fixed installations.
Studiomaster V6SA Competitive Differences
- High-Powered 1200W Amplifier: Class-leading performance for low-end punch
- Built-In DSP: Full control over gain, EQ, crossover, delay, and threshold
- 15" LF Driver with 4" Voice Coil: Delivers clean, extended low frequencies
- 130 dB SPL Output: High output with low distortion
- Road-Ready Construction: Durable yet lightweight reinforced enclosure
- Optimized for Line Array Use: Engineered to integrate with Studiomaster V6A
- Convenient Scoop Handles: Easy transport and positioning
- Optional Adjustable Suspension System: Ideal for flown or stacked array setups
Studiomaster V6SA Description
The
Studiomaster V6SA is purpose-built for high-performance bass reinforcement in array-based sound systems. Designed to match the V6A top modules, the V6SA delivers consistent low-end extension from
40 Hz to 150 Hz (-10 dB), making it ideal for touring applications, rental fleets, and fixed sound systems where compact yet powerful low-frequency reproduction is required.
A robust
15-inch LF driver with a
4-inch voice coil ensures maximum efficiency and clarity, even at high output levels. The onboard

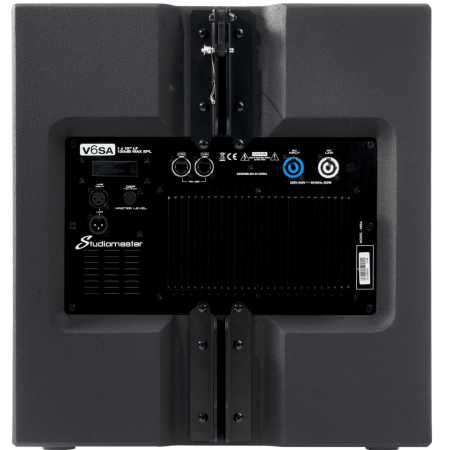

DSP processor provides advanced tuning capabilities including gain, EQ, delay, and crossover adjustments, allowing users to optimize system performance to any venue or environment.
Built into a reinforced composite cabinet with rugged construction and ergonomic scoop handles, the V6SA is designed for easy transport and long-term durability. The optional adjustable suspension system ensures flexible deployment, whether flown or ground stacked.
V6SA Features
- Active line array subwoofer designed to complement V6A modules
- Max SPL: 130 dB
- Frequency response: 40 Hz – 150 Hz (-10 dB)
- Built-in 1200W high-efficiency power amplifier
- 1 x 15" LF driver with large 4" (100mm) voice coil
- DSP functions: gain, EQ, crossover, delay, threshold
- Rugged reinforced composite cabinet

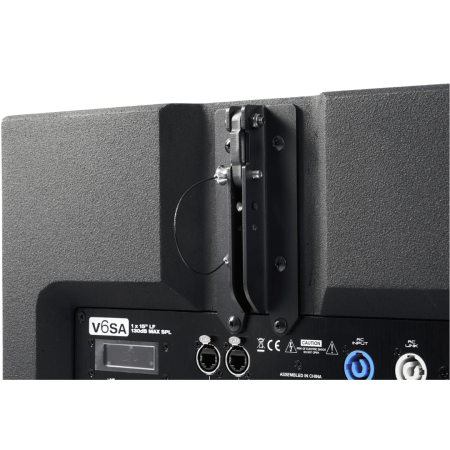

- Optional suspension system for flown arrays
- Ergonomic scoop handles for easy handling
V6SA Specifications
- Max SPL: 130 dB
- Amplifier Power: 1200W
- Cabinet Type: Active line array subwoofer
- Frequency Response: 40 Hz – 150 Hz (-10 dB)
- Sensitivity: 0 dBu
- LF Driver: 1 x 15" with 4" (100mm) voice coil
- DSP Functions: Gain, EQ, crossover, delay, threshold
- Dimensions (W x H x D): 18.66" x 19.92" x 26.5" (474 x 506 x 673 mm)
- Weight: 90.4 lbs (41 kg)
StudioMaster V6SA
(Studio Master V6-S-A)
