8-Input / 8-Output Matrix Mixer with DSP for Flexible Audio Control
The

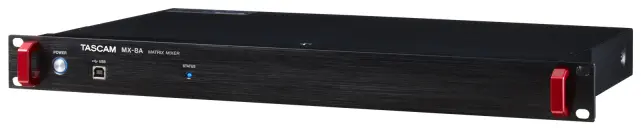

TASCAM MX-8A is a versatile matrix mixer designed for professional audio installations, offering 8 mic/line inputs and 8 line outputs with integrated DSP for seamless audio optimization. Ideal for small to mid-scale environments like restaurants, stores, or banquet halls, this mixer provides advanced audio control with customizable zones, making it perfect for various applications.
TASCAM MX-8A Competitive Differences
- 8-channel mic/line inputs with phantom power support (+48V).
- Advanced DSP with compressor, EQ, auto-leveling, and ducking features.
- 10-band EQ, high/low-pass filters, and limiter on line outputs.
- Compatible with TASCAM MX CONNECT (for integrators) and TASCAM EZ CONNECT (for end-users) for easy configuration.
- Built-in 2-in/2-out USB audio interface for playback/recording on Windows, macOS, Android, and iOS.
- Scene preset and timer event functions with up to 50 different configurations.
- Expandable with up to 8 wall-mount controllers for remote control via Cat5e cables.
- Supports remote control via RS-232C, RS-485, and Ethernet connections.
TASCAM MX-8A Description
The
TASCAM MX-8A is an exceptional solution for mixing audio across multiple zones, making it ideal for small to mid-scale installations. With its powerful integrated DSP, the mixer offers a comprehensive suite of audio processing tools, including compressor, parametric EQ, and auto-leveling for mic and line inputs. For outputs, the DSP allows for detailed sound shaping with 10-band EQ, filters, delay, and limiter settings, ensuring optimal performance in diverse environments.
Designed for ease of use, the MX-8A can be controlled through two dedicated apps: TASCAM MX CONNECT for integrators and TASCAM EZ CONNECT for end-users. These apps provide intuitive interfaces for adjusting zone volume, configuring system settings, and managing input/output routing. Additionally, the MX-8A supports scene presets and automatic event scheduling, allowing for effortless transitions between different audio setups.
With support for remote control via Ethernet, RS-232C, and RS-485, along with compatibility with external controllers like the RC-W100, the MX-8A offers flexible control options. The USB audio interface adds another layer of functionality, enabling audio playback and recording on multiple operating systems, making it a highly adaptable solution for a wide range of audio needs.
MX-8A Features
- 8-channel mic/line input with phantom power (+48v) support.
- Supports remote mic gain control.
- 8 line outputs with Euroblock connectors for secure connections.
- Remote control software available for Windows, macOS, iOS, and Android.
- Integrated DSP with compressor, parametric EQ, auto-level, and ducking.
- 10-band EQ, high-pass/low-pass filters, and limiter on line outputs.
- Scene presets with up to 50 recallable configurations.
- Compatible with RS-232C and RS-485 for remote system control.
- USB audio interface for playback/recording (Windows/macOS/Android/iOS).
- 1U rack-mountable design for easy integration into professional setups.
- Support for up to 8 wall-mount controllers via Cat5e cabling.
- Scene preset and timer functions for automatic configuration changes.
MX-8A Specifications
- Sampling Rate: 44.1kHz / 48kHz, 16-bit / 24-bit
- USB Transfer Rate: USB 2.0 High-Speed (480Mbps)
- Analog Inputs: Euroblock (balanced), -77.5 dBu min input, +26 dBu (mic), +24 dBu (line) max input
- Analog Outputs: Euroblock (balanced), +4 dBu nominal, +24 dBu max output
- Remote Control: RS-232C (D-sub 9-pin), RS-485 (RJ-45)
- Ethernet: RJ-45, 100BASE-TX
- Power: AC 100-240V, 50/60 Hz, 21W power consumption
- Dimensions: 19" (W) × 1.75" (H) × 12" (D) (483 x 45 x 304.1 mm)
- Weight: 6.6 lbs (3 kg)
TASCAM MX8A
(Tascam MX 8A)
