Versatile Multi-Zone Audio Mixer with Bluetooth for Commercial Applications
The

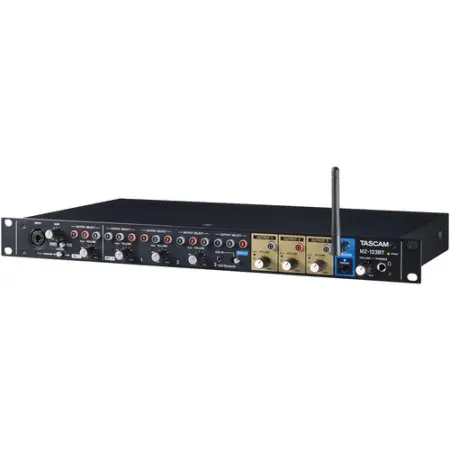

TASCAM MZ-123BT is a compact 1 RU multi-zone audio mixer, ideal for commercial environments like retail stores, restaurants, bars, and hotels. Designed for seamless audio distribution, it allows independent routing and mixing across up to three zones, making it perfect for background music and announcements. With Bluetooth capabilities and intuitive controls, this mixer ensures high-quality audio and ease of operation.
TASCAM MZ-123BT Competitive Differences
- Three Independent Zones: Control and distribute audio across three separate zones, each with its own volume and routing controls.
- Bluetooth Connectivity: Stream audio wirelessly from Bluetooth-enabled devices for easy integration with modern AV systems.
- Dual Mic Inputs with Phantom Power: Two mic inputs with +48V phantom power enable clear announcements, with automatic background music attenuation for superior intelligibility.
- Compact 1 RU Design: Fits easily into standard AV racks, saving space while providing professional-grade audio control.
- Euroblock Connectors for Fixed Installations: Equipped with rear-panel Euroblock connectors for secure, permanent installation and simplified wiring.
TASCAM MZ-123BT Description
The
TASCAM MZ-123BT is a professional-grade audio mixer designed for multi-zone control in commercial settings. Its 1 RU compact design makes it a perfect choice for environments where space is limited but audio versatility is crucial. With three stereo zone outputs and Bluetooth streaming capabilities, this mixer provides seamless audio distribution and control, allowing users to tailor sound in different areas or rooms.
This unit features two microphone inputs with phantom power, making it ideal for paging and announcements. The Talkover function automatically attenuates background music when an announcement is made, ensuring clear communication. Its intuitive front-panel controls allow for easy adjustment of volume, EQ, and zone selection, making it accessible for non-technical staff. Additionally, back-panel settings offer fine-tuning options for more advanced audio configurations.
MZ-123BT Features
- 3-zone music distribution for flexible audio control
- Bluetooth and AUX 3.5mm inputs for additional audio sources
- 2 microphone inputs with +48V phantom power
- 3-band EQ, gain control, and high-pass filter for each mic input
- Talkover function for automatic attenuation during announcements
- Separate volume control for each input and zone output
- Front-panel Bluetooth antenna for stable wireless connectivity
- Compact 1 RU rackmount design for easy installation
- Includes power cord, Euroblock plugs, rackmount screw kit, and Bluetooth antenna
MZ-123BT Specifications
- Mic Inputs: Balanced XLR-1/4" combo jack, rear-panel Euroblock connectors
- Input Levels: Rated -26 dBu to -2 dBu, Gain Adjustment Range: 39 dB
- Line Inputs: RCA connectors, -10 dBV nominal input level, ±16 dB gain range
- AUX Input: 3.5mm stereo mini-jack, -20 dBV nominal input level
- Stereo Outputs: Euroblock connectors, +4 dBu rated output level, +24 dBu max
- Headphone Output: 1/4" stereo jack, 80 mW output power
- Bluetooth Version: 4.2, 32.8' (10 m) unobstructed range
- Supported Profiles: A2DP with SBC, AAC, and aptX codecs
- Power: 100-240 VAC, 50/60 Hz, 25 W power consumption
- Operating Temperature: 32 to 104°F (0 to 40°C)
- Dimensions: 19.02" W x 1.83" H x 10.82" D (48.3 cm x 4.65 cm x 27.48 cm)
- Weight: 6.6 lbs (3 kg)
- Package Weight: 10.28 lbs
- Box Dimensions: 21.4" L x 14.2" W x 5.7" H
What's In The Box
- TASCAM MZ-123BT Mixer
- Power Cord
- Bluetooth Antenna
- Eight Euroblock Plugs
- Cable Band Kit
- Rackmount Screw Kit
