Line Array Fly Grid

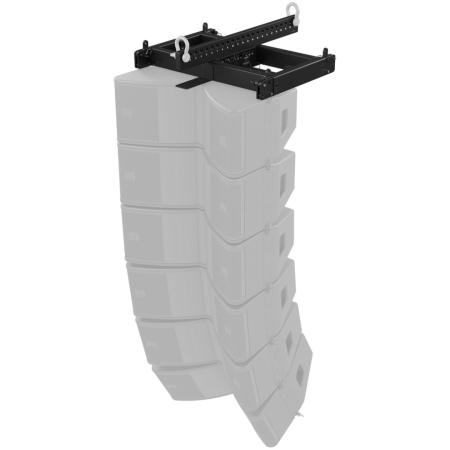

Turbosound TS-MAN-FG is a universal fly grid designed for safely suspending or ground stacking MV212/XV line array elements and MS215 subwoofers. Built for large-format touring and fixed installations, it offers exceptional load capacity, aiming control, and regulatory compliance for professional audio rigging.
Turbosound TS-MAN-FG Competitive Differences
- Supports up to 18 MV212 or 12 MS215 elements with 10:1 safety factor
- Meets international safety standards including DGUV 17 and ANSI E1.8-2018
Turbosound TS-MAN-FG Description
The
Turbosound TS-MAN-FG flybar is built for the MANCHESTER MV line, enabling safe and flexible deployment of MV212 and MS215 enclosures. Whether flying full-range speakers, subwoofers, or a mixed array, this grid ensures structural stability while maximizing rigging efficiency.

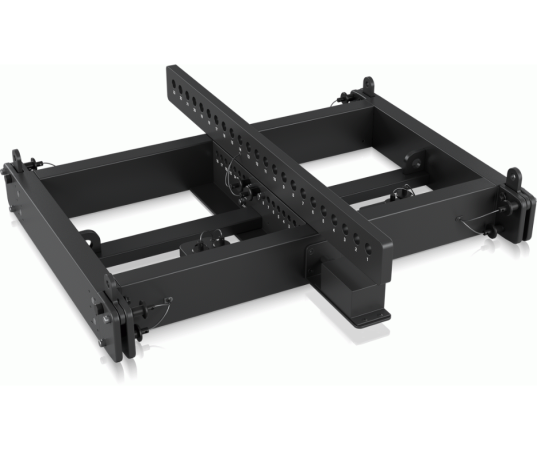

Made from lightweight, powder-coated structural steel, the TS-MAN-FG includes multiple rigging points to accommodate both single and dual suspension. A tip bar is included to provide flexible array angles, while a single-point shackle plate allows for minimal angle configurations when using one lift point.
For ground-stacked applications, the system includes an angle plate to precisely steer the mechanical tilt of the array. Each connection uses drop links and rigging pins, ensuring secure and repeatable setups.
Built to meet BGV-C1 and other international safety standards, the TS-MAN-FG is the go-to fly grid for large-scale MV212/MS215 audio systems, whether in touring rigs or fixed venues.
Model Features
- Compatible with MV212 line array and MS215 subwoofers
- Suspend up to 18 MV212 or 12 MS215 elements at 10:1 safety factor
- Multiple pick points for flexible suspension options
- Powder-coated structural steel for strength and durability
- Tip bar and single-point shackle plate included
- Ground stack angle plate for precise array steering
- Engineered to BGV-C1 and ANSI E1.8-2018 compliance
Model Specifications
- Material: Powder-coated structural steel
- Max Suspension Capacity: 18 MV212 or 12 MS215 enclosures
- Safety Compliance: DGUV 17, ANSI E1.8-2018, DIN EN ISO 12100, EN 818-6:2000
- Compatible Speakers: MV212, MS215
- Weight: 116.8 lb (53 kg)
- UPC: Not confirmed
What's In The Box
- TS-MAN-FG fly grid
- Tip bar
- Single-point shackle plate
- Ground stack angle plate
- Drop links and rigging pins
Turbosound TS-MAN-FG
(TurboSound MAN-FG)
