Line Array Fly Grid
Turbosound TS-MAN210-FG is a precision-engineered fly grid designed for safe and flexible suspension or ground stacking of MV210-HC line array elements and MS121 subwoofers. Compliant with international rigging safety regulations, it supports various configurations while maintaining stability and accuracy for live sound reinforcement applications.
Turbosound TS-MAN210-FG Competitive Differences
- Supports up to 12 MV210-HC or 9 MS121 elements in standalone arrays
- Compatible with flown and ground-stacked configurations
Turbosound TS-MAN210-FG Description
The

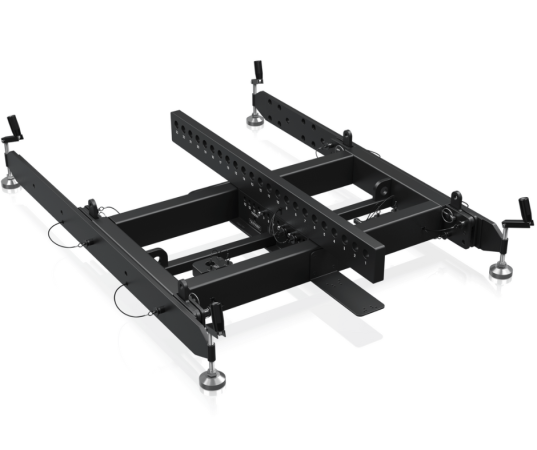

Turbosound TS-MAN210-FG fly grid provides a robust and adaptable rigging solution for the MANCHESTER series line array systems. Built from powder-coated structural steel, the frame ensures durability while maintaining a lightweight profile for efficient handling during installations.

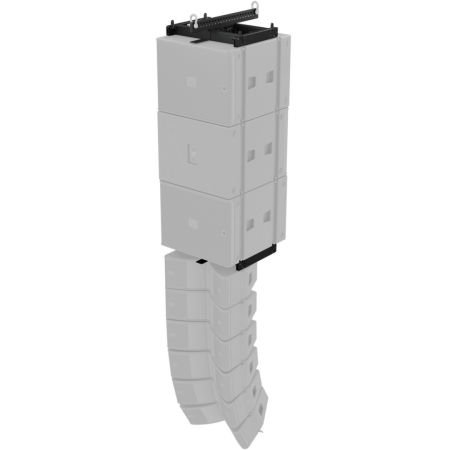

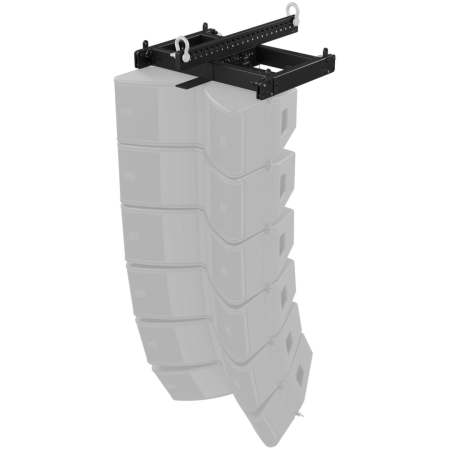

This versatile frame can suspend unique or mixed configurations of MV210-HC and MS121 elements with a 10:1 safety factor. Whether you're flying an array of full-range speakers, subwoofers, or both in combination, the TS-MAN210-FG offers multiple pick points for single or dual suspension methods to optimize balance and aiming.

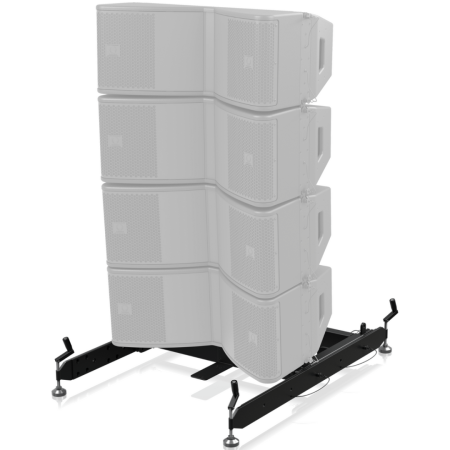

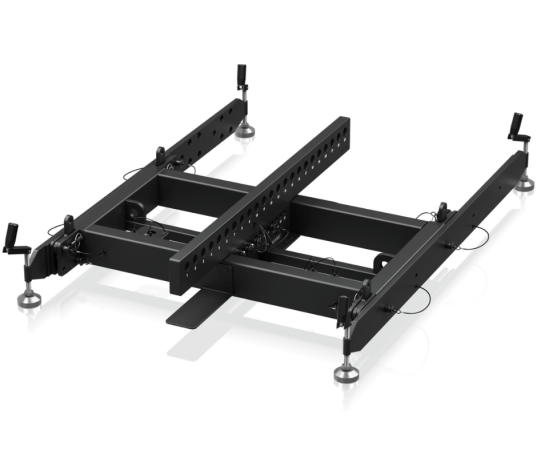

In addition to flying capabilities, the grid includes ground stack accessories such as angle plates and adjustable screw jack feet, allowing for precise mechanical steering in non-flown environments. Laser brackets and tip bars further expand aiming control, ensuring accurate acoustic coverage.
For audio professionals using acoustic modeling tools, the system integrates seamlessly with EASE Focus 3 via included GLL files, streamlining array design and deployment with real-world accuracy.
Model Features
- Universal support for MV210-HC line arrays and MS121 subwoofers
- Up to 12 MV210-HC or 9 MS121 elements suspended at 10:1 safety factor
- Multiple rigging points for flexible array suspension
- Ground stack compatible with angle plate and outriggers
- Tip bar and single-point shackle plate included
- Dual secondary safety rigging points
- Laser bracket for accurate aiming with inclinometer
Model Specifications
- Material: Powder-coated structural steel
- Suspension: Single or dual point
- Safety Compliance: DGUV 17, ANSI E1.8-2018, DIN EN ISO 12100, EN 818-6:2000
- Compatible Speakers: MV210-HC, MS121
- UPC: Not confirmed
What's In The Box
- TS-MAN210-FG fly grid
- Tip bar
- Single-point shackle plate
- Ground stack angle plate
- Outriggers with adjustable screw jack feet
- Laser bracket
- Drop links and rigging pins
Turbosound TS-MAN210-FG
(TurboSound MAN210-FG)
