3-Way Line Array Speaker Element
The

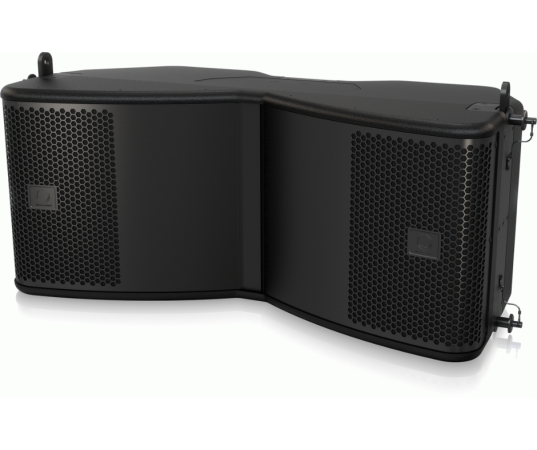

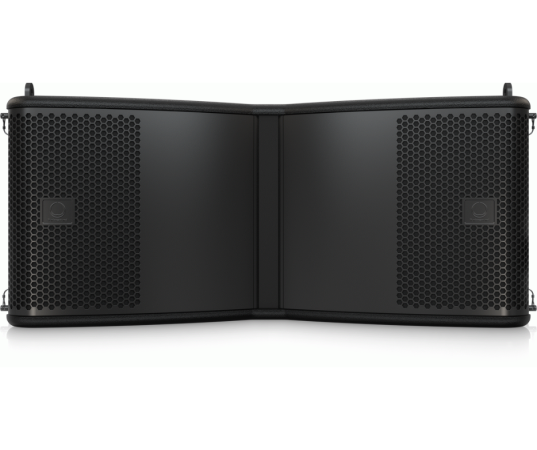

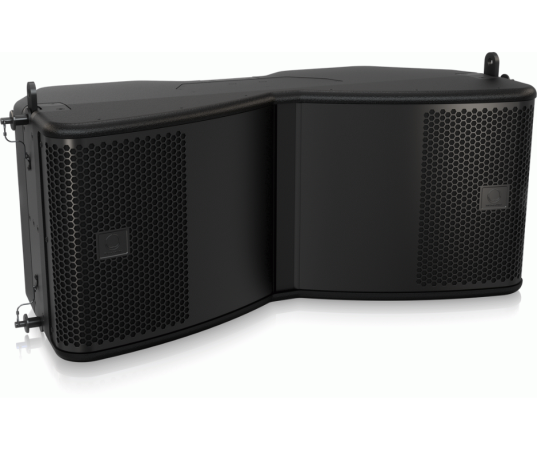

Turbosound TS-MV212 is a full-sized, bi-amplified 3-way line array element featuring dual 12-inch neodymium woofers and coaxial mid-high drivers. Designed for high-performance sound reinforcement in both touring and fixed installation environments, this module offers exceptional power handling and advanced waveguide design for accurate vertical coupling and consistent coverage.
Turbosound TS-MV212 Competitive Differences
- Dual 12" neodymium woofers with 980W continuous power
- Advanced FIR filtering and seamless Lake/Lab Gruppen integration
Turbosound TS-MV212 Description
The
TS-MV212 is engineered for demanding sound reinforcement applications, combining high-output performance with precise pattern control. Its bi-amplified 3-way design includes dual lightweight 12-inch low-frequency transducers and a pair of 1.4-inch coaxial compression drivers mounted on Dendritic Plane Wave Transformer (DPWT) waveguides, ensuring smooth vertical array coupling and even horizontal dispersion.
This model provides a 100° horizontal by 0°–5° adjustable vertical curvature, making it adaptable to different venue sizes and acoustical needs. Designed for use with Lake DSP and Lab Gruppen amplification, the TS-MV212 integrates easily into scalable system setups, delivering phase-linear performance through FIR hybrid processing.
With a rugged enclosure and compact footprint, the TS-MV212 is equally suitable for fixed installations in auditoriums or houses of worship, as well as mobile systems for touring acts and large-scale events.
Model Features
- Bi-amped 3-way design with 980W continuous power
- Dual 12" LF drivers with neodymium motors
- 2 x 1.4" coaxial neodymium compression drivers
- Dendritic Plane Wave Transformer (DPWT) for tight vertical coupling
- 100° horizontal x 0–5° vertical coverage
- Optimized for Lake DSP and Lab Gruppen amplifiers
Model Specifications
- Max Power: 3,920W Peak
- Power Handling: 980W Continuous
- Coverage: 100° Horizontal x 0–5° Vertical
- Dimensions: 13.9 x 31.9 x 19.3 in (35.4 x 81 x 49 cm)
- Weight: 116.8 lb (53 kg)
Turbosound TS-MV212
(TurboSound MV212)
