3-Way Line Array Speaker Element
The
Turbosound TS-MV212-XV is a powerful bi-amplified 3-way line array speaker designed for professional sound reinforcement in touring and installed systems. With dual 12" neodymium woofers and a coaxial compression driver, it delivers high SPL output and precision coverage using advanced waveguide and FIR filtering technologies.
Turbosound TS-MV212-XV Competitive Differences
- 790W continuous power with 3,160W peak output
- 100° horizontal dispersion with 5–10° variable vertical curvature
Turbosound TS-MV212-XV Description
The
TS-MV212-XV is purpose-built for demanding live sound environments where full-bandwidth clarity, flexible coverage, and durability are essential. Its dual 12-inch low-frequency transducers use lightweight neodymium magnets for reduced weight without sacrificing power, while a single 1.4-inch coaxial compression driver delivers smooth mids and highs.
Equipped with integral Dendritic waveguides, the MV212-XV ensures perfect vertical coupling across multiple array elements, creating a consistent and phase-aligned line source. The 100° horizontal coverage and variable 5°–10° vertical curvature provide excellent adaptability in large or asymmetrical venues.
Engineered for seamless integration with Lake DSP and Lab Gruppen amplification systems, this model features advanced linear phase FIR processing, enabling precise tonal shaping and optimized performance right out of the box. Whether used in a mobile PA rig or permanent install, the TS-MV212-XV is a reliable solution for high-output FOH applications.
Model Features
- Bi-amped 3-way design with dual 12" neodymium LF drivers
- Single 1.4" coaxial neodymium mid-high compression driver
- 790W continuous / 3,160W peak power
- 100° horizontal x 5–10° variable vertical coverage
- Dendritic waveguides for optimal array coupling
- Compatible with Lake DSP and Lab Gruppen amps
- Advanced linear phase FIR filtering for pristine audio
Model Specifications
- Max Power: 3,160W Peak
- Power Handling: 790W Continuous
- Coverage: 100° Horizontal x 5–10° Vertical
- Dimensions: 13.9 x 31.9 x 19.3 in (35.4 x 81 x 49 cm)
- Weight: 110.2 lb (50 kg)

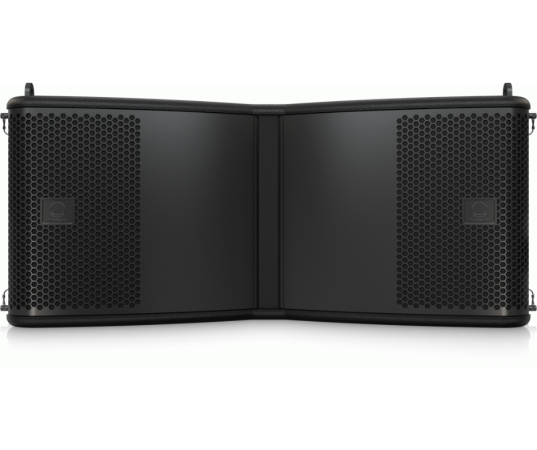

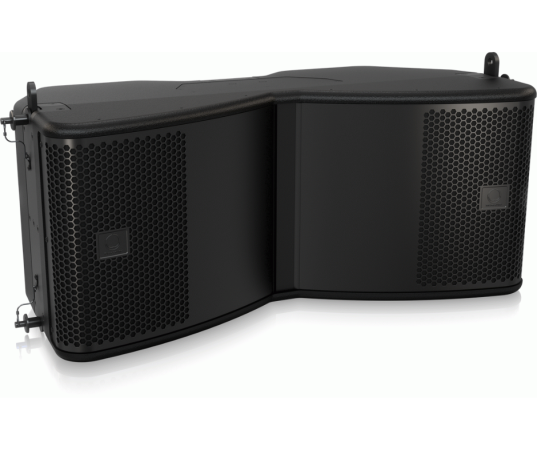

Turbosound TS-MV212-XV
(TurboSound MV212-XV)
