Air-Powered Series Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter
No more struggling to get your heavy speaker on to the top of the stand.Â
Now simply put your stand on the lowest height, lift you speaker on, then have
the air-powered stand help lift the speaker to its proper height.
Air-Powered Series speaker stands from Ultimate Support represent everything all
other speaker stands aspire to be. These Ultimate Support speaker stands incredibly strong, extraordinarily
sturdy, lightweight, 100% field serviceable, AND raise and lower speaker stands
on their own! Driven by innovation and years of research and development, the
Air-Powered Series feature an internal shock that lifts speakers weighing 50 lbs
and less with no effort, and requires just one hand's worth of effort to raise
speakers weighing more than 50 lbs! There are three models to choose from: the
TS-100B, TS-110B which offers additional height, and the TS-110BL which also
offers additional height plus a leveling leg that allows the speaker stand to
stay level on risers, stairs, and other uneven surfaces.
Ultimate TS-100B Product Breakdown:
Raise and Lower the Speaker with Ease!
Patented Tripod Design
Over-sized Heavy Wall Aluminum Tubing
100% Field Serviceable Parts
Raise and Lower the Speaker with Ease!
The Ultimate Support TS-100 is the easiest speaker stand to use thanks to the internal air-powered shock that literally raises the speaker for you. The stand's
internal shock easily raises speakers weighing 50 lbs and less with no effort
from the user (the Mackie SRM Series, JBL EON Series, and QSC K Series all weigh
far less than 50 lbs, for instance). And, the Ultimate Support TS-100 requires very little effort from the end user to raise speakers weighing more than 50 lbs. When you're ready
to lower the speaker, we've provided a convenient and ergonomic hand grip from
which you can lower the speaker - with just one hand. There's never been an
easier, more convenient, or safer way to set up and tear down speakers.
Patented Tripod Design
The TS-100's offset tripod base design provides more support than typical
"off-the-shelf" speaker stands. The design makes for very tight internal
fittings, doing away with unnecessary sloppy leg problems, and includes a super
strong die-cast metal collar that prevents over-tightening and breakage issues
associated with all plastic designs.
Over-sized Heavy Wall Aluminum Tubing
The entire stand (legs, mast, and telescoping tube) uses oversized, heavy-walled
aluminum tubing for durability, functionality, and weight savings. The TS-100
will not rust or corrode (thanks to its architectural anodized finish), is very
smooth to operate, and is extraordinarily strong yet lightweight.
100% Field Serviceable Parts
From the foot caps on the bottom of the tripod legs all the way up to the
speaker adapter at the top of the stand, the TS-100 is serviceable by parts as
needed over its very long lifespan. In the unlikely event that something does
break on the TS-100, simply replace with an affordable part instead of throwing
the entire stand away and buying a whole new one!
Part Name: TS-100B |
Part Number: 16759 |
Height: 3'8" - 6'7" (1118 mm - 2007 mm) |
Weight: 12.1 lbs. (5.5 kg) |
Base Diameter: 47" (1194 mm) |
Telescoping Tube Diameter: 1.5" (38 mm) |
Adapter Diameter: 1.375" (35 mm) |
Load Capacity: 150 lbs. (68.2 kg) |
Folded: 43.5" x 5.5" (1105 mm x 140 mm) |
I bought a pair of these stands from KPODJ and I was totally impressed with how light they are but still very stable. When I put my QSC speakers on them for the first time I could not believe how easy it was to raise the speakers to my desired level. It really takes the work out of having to manually raising speakers. Ultimate Support really hit on something great here. I would recommend these speaker stands to any mobile DJ. One other great thing is that there are replacement parts for these speakers "IF" they ever fail. No need to throw the whole stand out. Do yourself a favor and get you some of these. You will never regret it. Rock on. DJ Nate in Charlotte, NC
These Speaker Stands save my life every gig. As a female DJ its hard enough carrying around all my equipment. With these I can put the speaker on the stand at shoulder level (I am short) and they elevate themselves to the height I like. Clients and people are always impressed with this as well. They are also light but sturdy and easy to open and close. A must have!
i need to know if you can use scrim king or any other brand to cover the stand???? been asking and sending emails to kprodj but no concern about responding<br />

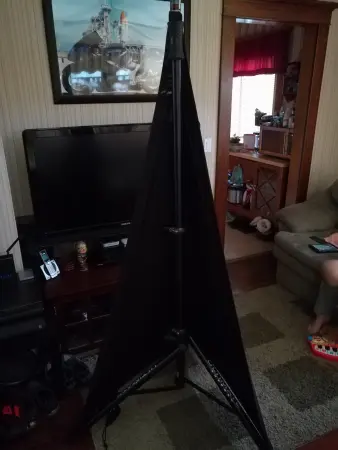

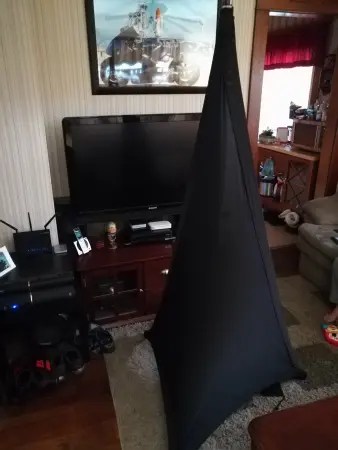

Burton Nuse: This is a bit late for a comment to this question, but I thought I would share this if any one was curious. I submitted photos of the On-Stage scrims I purchased for my other pair of stands. They fit nicely, I think even better than they did on a traditional tripod base. From what I can tell, I don't think you'd have a problem with pretty much any scrim out there. But, you never know unless you try , I guess.
Hands down, best stands on the market. Durable, easy to use, and Ultimate also fixed the air powered feature so you don't have to worry about getting punched in the face.
saved my shoulders...great product
I originally watched a video from a prominent school DJ where he demonstrated ANOTHER companies speaker stands. The other speaker stands had some cool features which included the easy lifting feature. The problem that I learned from online reviews were the difficulty in opening the speaker legs. They conveniently edited out that part from the demo video.<br /> <br /> I have some female staff with our company and then needed speaker stands that were shorter and had this cool lift assist feature. Now if I was using the speaker stands I would purchase the taller ones however the shorter version lift up pretty high and probably more than what is needed at about 90% of your events.<br /> <br /> For lighter weight speakers they will lift automatically. If they are a bit heavier they lift up with just a little bit of effort from the user. We've only used the speaker stands at a couple of events and they are working out very nicely. Hopefully they will last as long as our other Ultimate Speaker Stands. We've had the original stands, the Telelock stands and now the Lift Assist stands. Oh and KPODJ has the best pricing and ships most items for free.
In love with these speaker stands! Very sturdy and professional, yet so easy to set up. Cuts down my set up time to a fraction of what it used to be. It makes my job as a female mobile DJ much easier! ;)
Love these stands!! I've wanted them for awhile but had a perfectly good pair of ultimate stands without the air shocks. My brother bought a pair and immediately, told my I needed them. So I placed my order from KPODJ. Got them and used them tonight. I've got a pair of RCF TT22A's that weigh in at 53 pounds. So they are the perfect weight. I can effortlessly move them up & down. So happy I got them.<br /> Greg Hodges<br /> 5 Star Events<br /> Plymouth, MA
Best solution for mobile dj..save your back for those heavy speakers by using this air powered lift speaker stand..
These stands are simply awesome, and are a phenomenal value as well. Factoring in that I can pay 131.19 for a pair which look super clean and professional instead of getting a junky pair of stands that don’t have any features that this has, I am not buying anything but ultimate stands ever again.
The Ultimate Support TS-100B stands are a back saver. I recently purchased a set, as my Yamaha DSR115's are getting a bit too heavy and cumbersome to raise up by myself with regular speaker stands. It feels like I am raising maybe around 15-20 lbs. with these stands, compared to the whole weight of the speaker, which is 62 lbs. These stands make gigging much easier for me. They seem to be rock solid and the ability to order replacement parts is a plus as well. These stands make it much safer when raising or lowering, compared to traditional stands. I'm not a huge fan of the thumb screw design for the extending pole clamp, I'll have to see if I can come up with something that suites my needs better, but they'll serve their purpose for now. If you have any speakers that are over 40+ lbs. I highly recommend air assist speakers stands like these to anyone. Unless you like manhandling heavy speakers over your head.
Only used at two events so far. They seem sturdy and well built. Thinking about another set for the ceremony set up.
I have used Ultimate stands since the early 90's. Put simply they are the best money can buy. <br /> Plus a lifetime warranty<br /> KPODJ offers the best pricing on these stands in North America
The hand knobs strip after a few uses. Bad design from a good company.
Tom Capo: Yes, all Scrim King speaker stand scrims fit all versions of the Ultimate Support speaker stands. However, for the extra tall speaker stands, you may want to use the Scrim King lighting scrims. <br /> <br /> The TS-100B is not an "extra tall" stand, so the standard speaker scrims (that start with "SS-SPK") will work.<br /> <br /> I'm sorry for the delayed response. We don't get notified when customers post product reviews. The "questions" section is a better area for quick replies.
