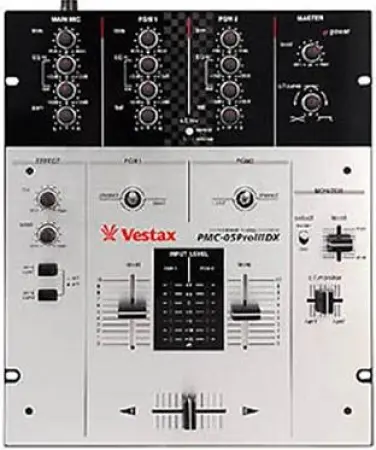

Vestax PMC05Pro 3DX

Vestax PMC05 Pro III DX (Vestax PMC05PRO3DX)

The world standard Vestax PMC-05Pro has evolved again. With additional input/output connection the PMC-05Pro3 DX can work with DJ software via audio interface, offers simple setup in clubs and enables DJs to switch their gear easily with other DJs. USB connection can be applied as an option by installing the TUB-1 USB board.

DX Mode Connection

The rear panel has the same input/output features as the PMC-05Pro3 VCA, available for turntables and CD players.

Set the software control vinyl / CD to the player.

Connect the output on the front panel to the audio interfaces LINE input and the audio interfaces output to the PGM 1 / 2 input on the front panel. Turn each PGM DX switch ON and connect the audio interface to the computer.

DJs can switch their gear easily at clubs to the next DJ without stopping the sound by switching the PGM DX switch one by one.

Features:

• The main control section is exactly the same as the HIP HOP / SCRATCH standard PMC-05Pro 3 VCA, which has well defined operability and reliability that outclass others.
• The main control section is exactly the same as the HIP HOP / SCRATCH standard PMC-05Pro 3 VCA, which has well defined operability and reliability that outclass others.
• The USB option board TUB-1 can be installed to the front panel in order to input audio signals via USB. The sound signal inputted via USB is assigned to PGM 1 by turning the DX switch and Option In switch ON. (Devices connected to INPUT PGM 1 on the front panel will have priority over USB)
• The CF monitor control & Master level fader have been moved closer to the top in order to free up more battle space around the cross fader for dynamic scratches and moves.
• The monitor sound can be selected from MASTER and CUE with the MONITOR SELECT SWITCH. Useful for monitoring before going on stage and practicing scratches on you own.
