Vestax VCM100

Vestax VCM100 (Vestax VCM 100)

USB MIDI & Audio Controller

Portable Mixing Workstation!

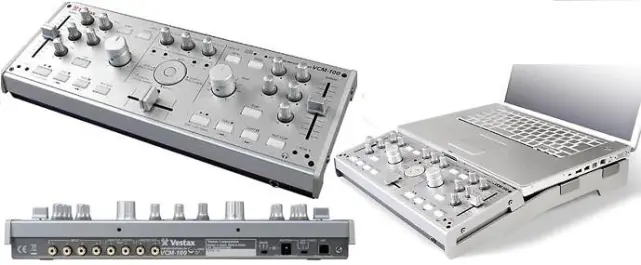

The VCM-100 is a compact USB MIDI & audio system, designed with Vestax's mechatronics technology developed in the past 30 years. Despite its compact size, the VCM-100 comes with 4in4out(Stereo x 2 in/out)connection, headphone output and high quality mechanical parts placed in the control section.

Having every feature fitted in to a solid metal body smaller than a standard laptop, the VCM-100 is easy to use and transportation friendly, which makes it the simple all-in-one USB audio interface that all PRO's want.

60 parameters of various software are assignable to the VCM-100's control section via USB MIDI IN/OUT.
The DATA SEND LED provides clear visual of the current status to assist in an authentic play mode in real time.
Monaural 4 in/ Stero 2 out (Master out L.R, Monitor/Booth out L.R), Headphone output. The VMC-100 provides a high definition sound, thanks to the audio codec IC designed with a built-in hardware sample rate converter, delta-sigma conversion 20bit stereo D/A converter and 18bit stereo A/D converter.
Support for ASIO 2.0, CoreAudio and MME / WDM, MAYA44 USB is compatible to all major music and DJ and DAW applications.
ESI(Ego systems Inc) designed ASIO driver apllied for its proven high reliablity.DAW application software and DJ application software work with the driver at a valiant low latency rate and high performance. (Windows will identify the VCM-100 as a 2in2out USB audio device when using the standard Windows WDM driver. Use the ASIO driver when using multi input/output with DTM application software. )
The VCM-100 provides simple plug & play features working with Apple and Windows computers.
The power source is selectable from USB bus-power and the exclusive power adaptor(not included). (For best performance and stable operation, please use the power adaptor if the computer's power capacity is low or if using a USB hub)
There are no issues if you don't have any software to operate. TRAKTOR LE (Native Instrument Inc.) is bundled to the VCM-100 with exclusive control assignment files.

Compatible with all software that allows MIDI control assignment. 3 versions of firmware can be selected to have the best match with the software. Each software's samples of MIDI control assignment files will be available at www.vestax.com soon.
The compact metal body is thin but highly durable, and convenient for transportation

MINIMUM SYSTEM REQUIREMENTS
Operating System
[Windows]
Requires Windows XP Service Pack 2. Does not support Windows 2000/98/Me
NOTE: DO NOT connect to a Windows 2000 Professional PC. The display will turn blue screen and the computer will freeze.


[Macintosh]
Supports Mac OS X10.4.7. Does not support previous system versions.
Multi client environments that operate the VCM-100 with more than 1 software are not supported.
※NOTE : Mac OS 10.6(Snow Leopard) not support
-Traktor 3 LE does not support Mac OS 10.6
For users who wish to use Mac OS 10.6, we recommend updating to Traktor Pro or Traktor Duo,for traktor 3 LE is currently not supported with Mac OS 10.6.


Hardware
[Windows]
CPU: Pentium III 500 MHz (Advanced CPU required for laptops)
Memory: 256MB RAM
USB 1.0/2.0 Interface

[Macintosh]
CPU: Macintosh G3 600/G4 667MHz (Advanced CPU required for laptops)
Memory: 256MB RAM
USB 1.0/2.0 Interface

These minimum system requirements are for the VCM-100 hardware. If the software's system requirements are higher than the VCM-100, please prepare an advanced operating system qualified. Macintosh CPU accelerator cards are not supported. The computer must have USB connection.


SPECIFICATIONS
ANALOG AUDIO
1. Sample Rates
44.1kHz, 48kHz
2. Analog Input
1) connector type: 4 channel analog inputs
* 4 RCA connectors (line in 1,2,3,4)
2) -10dBV input level, unbalanced
3) impedance: 10K Ohm
3. Analog Output
1) connector type: 4 channel analog line outputs
* 4 RCA connectors (Master out L.R, Monitor/Booth out L.R)
2) -10dBV output level, unbalanced
3) impedance: 100 Ohm
4. Headphone Amplifier
1) THD+N/S: -70dB, 0.03% (typical)
2) output power: 60mW max
3) signal to noise ratio: 110dB (typical)

DIGITAL AUDIO
1. Sample Rates
44.1kHz, 48kHz
2. A/D Converter
1) resolution: 18-bit
2) dynamic range: 85dBA
3) frequency response: 20~20KHz (@ fs=48kHz)
3. D/A Converter
1) resolution: 20-bit
2) dynamic range: 87dBA
3) frequency response: 20~20KHz (@ fs=48kHz)

DRIVER SOFTWARE
1. ASIO 2.0 support (Windows)
4 input channels / 4 output channels
2. CoreAudio support (Mac OS X)
4 input channels / 4 output channels
3. MME/WDM support (Windows)
2 input channels / 2 output channelsDIGITAL AUDIO

GENERAL
Power supply : DC 9V 500mA (Option)
Dementions : 350(W)×126(D)×40(H)mm (Excluding knob height)
Weight : 1.8 kg.
