DMX Lighting Controller
The

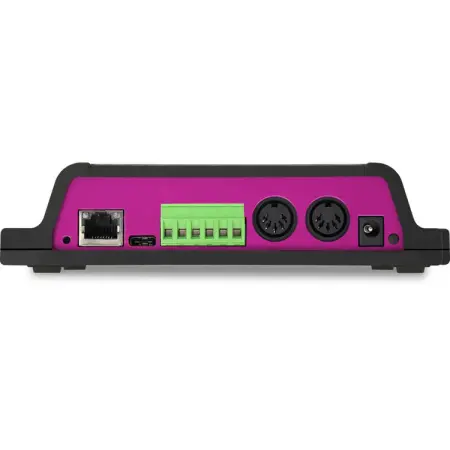

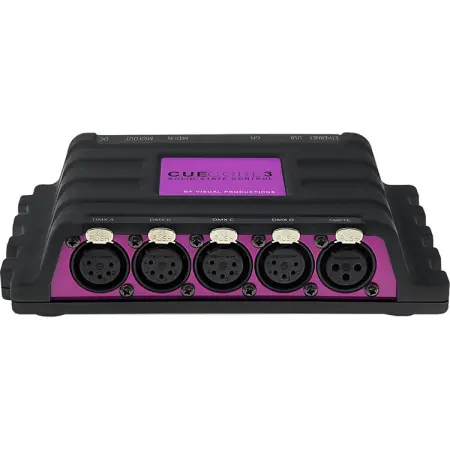

Visual Productions CueCore3 is a versatile and compact DMX lighting controller built for professional show control and architectural installations. Designed for permanent installations or critical environments, this unit is solid-state with no moving parts—ensuring reliable, low-maintenance operation with long-term stability. It supports up to 2048 DMX channels and enables advanced show playback and automation without the need for a computer.
Visual Productions CueCore3 Competitive Differences
- Standalone operation with 6GB internal memory for DMX show storage
- Multi-protocol compatibility: Art-Net, sACN, KiNet, MIDI, OSC, and more
Visual Productions CueCore3 Description
The
CueCore3 is designed for users needing high-channel-count DMX control with extensive automation and protocol support. Whether it’s for a concert venue, broadcast studio, theme park, or architectural installation, this controller can run complex lighting shows on its own or integrate with other networked devices.
Its robust 4-universe capacity (2048 channels) and bidirectional DMX512-A ports allow seamless communication with lighting fixtures. Users can trigger playback using internal scheduling, GPI, MIDI, SMPTE timecode, or IP-based commands like OSC and HTTP. A real-time clock and internal battery ensure consistent scheduling, while the embedded web interface allows for remote configuration.
Bundled software—CueluxPro, vManager, and Kiosc—makes programming intuitive, while the included power supply and Power over Ethernet support provide flexible installation options. The CueCore3’s desktop housing can also be DIN rail or rack mounted with optional accessories.
Model Features
- Standalone DMX lighting controller with no moving parts
- 4 bidirectional DMX512-A ports (2048 channels total)
- Onboard flash memory stores up to 6GB of show data
- Trigger playback via GPI, MIDI, SMPTE, OSC, or HTTP
- Supports Art-Net, sACN, KiNet, TCP, UDP, and more
- Includes CueluxPro, vManager, and Kiosc software
Model Specifications
- Max DMX Channels: 2048
- Power Input: 9–24 VDC, 500mA
- Power over Ethernet: Yes (Class III)
- Dimensions: 6.6 x 3.9 x 1.6 in (168 x 99 x 41 mm)
- Weight: 1.72 lb (0.78 kg)
- Operating Temp: -4 to 122°F (-20 to 50°C)
- Certifications: EN55103-1, EN55103-2

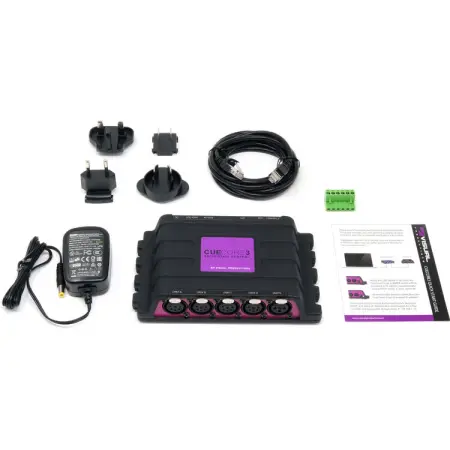

What's In The Box
- CueCore3 unit
- Power adapter
- Quick start guide
Visual Productions CueCore 3
(Visual Productions Cue Core 3)
