Visually Striking Three-Way Loudspeaker for Style-Driven Venues
The

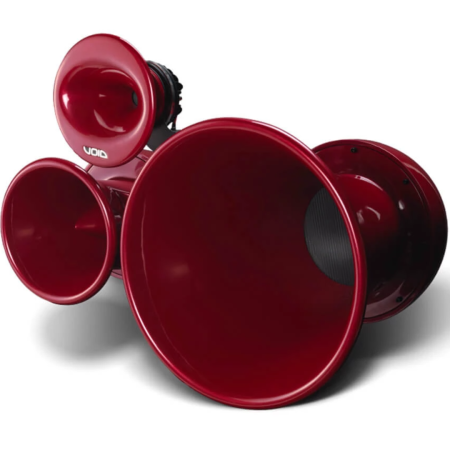

Void Acoustics Air Motion is a revolutionary three-way bi-amped sculpted loudspeaker array, designed to deliver high-impact audio performance with a striking visual aesthetic. Ideal for style-led environments such as nightclubs, live music venues, and VIP rooms, this system combines powerful sound output with sleek design. Featuring a 12” low-frequency driver, an 8” mid-frequency driver, and a 1.5” high-frequency compression driver, each loaded by an isometric conical horn, the Air Motion provides tight beamwidth control and balanced waveform transmission across its 60° x 50° dispersion pattern.
Void Acoustics Air Motion Competitive Differences
- Striking design for style-conscious venues
- Three-way system with 12" LF, 8" MF, and 1.5" HF compression driver
- Fibreglass Kevlar composite construction for durability
- 60° horizontal by 50° vertical dispersion for precise coverage
- Internal electronic control to prevent overdriving
- Integrated flying and mounting system for flexible installations
- Custom color options to match venue decor
- High efficiency with up to 138 dB peak output
Void Acoustics Air Motion Description
The Void Acoustics Air Motion redefines audio aesthetics by merging cutting-edge audio technology with eye-catching design. Its sculpted, skeletonized form is engineered for both performance and style, making it an ideal choice for high-end venues that require a visually striking sound system. The three-way bi-amped configuration features a 12-inch low-frequency driver, an 8-inch mid-frequency driver, and a 1.5-inch high-frequency compression driver, each mounted in an isometric conical horn. This design provides optimal sound clarity with tight control over the 60° horizontal by 50° vertical dispersion, ensuring balanced audio across any venue.
Constructed from fibreglass Kevlar composite, the Air Motion is lightweight yet robust, perfect for both fixed installations and portable setups. The built-in electronic control protects the drivers from overloading, ensuring reliable long-term performance. Whether ground-stacked or flown with the integrated rigging system, the Void Acoustics Air Motion delivers exceptional sound quality with high SPL levels, making it the ultimate choice for nightclubs, live music venues, and other high-impact environments.
Void Acoustics Air Motion Features
- Three-way bi-amped configuration with 12" LF, 8" MF, and 1.5" HF compression drivers
- Isometric conical horn for controlled 60°H x 50°V dispersion
- Fibreglass Kevlar composite construction for durability and weight reduction
- Internal electronic control to prevent overdriving
- Integrated flying and mounting system
- Optional floor stand or subwoofer-mounted ground support system
- Standard red finish with optional custom colors available
- 2 x 4-pole speakON™ NL4 connectors for secure signal transmission
Void Acoustics Air Motion Specifications
- Frequency Response: 140 Hz - 20 kHz ±3dB
- Efficiency:
- LF: 106 dB 1W/1m
- HMF: 108 dB 1W/1m
- Crossover Points: LF: 140Hz and 600Hz, HMF: 600Hz (passive at 1.7kHz)
- Impedance:
- Power Handling:
- LF: 500 Watts RMS
- HMF: 250 Watts RMS
- Maximum Output: 134 dB continuous, 138 dB peak
- Driver Configuration:
- 1 x 12" low-frequency driver
- 1 x 8" mid-frequency driver
- 1 x 1.5" high-frequency compression driver
- Dispersion: 60° horizontal, 50° vertical
- Connectors: 2 x 4-pole SpeakON™ NL4
- Dimensions (HxWxD): 23.6" x 33.5" x 29.9" (600mm x 850mm x 760mm)
- Weight: 77.9 lbs (35.4 kg)
- Enclosure: Fibreglass Kevlar composite
- Rigging: Integral mounting system
- Finish: Standard red, with custom colors available
