High-Performance Line Array Module for Large-Scale Events
The
Arcline 8 is a two-way active, three-way line array module designed for both indoor and outdoor events, touring, and live music venues. With a true cylindrical wavefront and 110° horizontal dispersion, the Arcline 8 delivers uniform sound across large audiences. Its advanced rigging system allows for quick setup with pre-selected angles, reducing labor and ensuring precise coverage. The horn-loaded low-mid section and new high-frequency horn design provide exceptional sound quality, even in challenging acoustic environments.
Arcline 8 Competitive Differences
- 110° horizontal dispersion with uniform polar pattern
- True cylindrical wavefront for even sound distribution
- Advanced rigging system for fast and easy setup
- Phase shading device for optimized acoustic coupling
- Horn-loaded low-mid drivers for enhanced projection
- Lightweight 15mm birch plywood enclosure with textured TourCoat finish
- Ground stackable design for flexible installations
Arcline 8 Description
The Arcline 8 is a compact yet powerful line array module that brings advanced sound technology to large-scale events and venues. Equipped with two 8" horn-loaded low-frequency drivers, two 8" midrange drivers with a phase device, and two 1.4" compression drivers, this speaker ensures high efficiency and clarity across its frequency range. The speaker's unique phase shading device and cylindrical wavefront technology provide consistent sound quality from front to back, eliminating common high-frequency performance compromises found in traditional line arrays.
Designed with flexibility and ease of use in mind, the Arcline 8 features a rigging system that allows angles to be pre-selected before flying the system, reducing setup time and the need for additional rigging personnel. The lightweight 15mm birch plywood enclosure, finished in a durable TourCoat polyurea, ensures longevity while keeping weight low for easier transportation and installation. Whether used in indoor clubs or outdoor festival stages, the Arcline 8 offers precision, power, and ease of use.
Arcline 8 Features
- 110° horizontal by 12° vertical dispersion for wide coverage
- True cylindrical wavefront design for consistent SPL across large areas
- Dual 8" horn-loaded low-frequency drivers
- Dual 8" midrange drivers with phase device
- Dual 1.4" high-frequency compression drivers
- Pre-selected rigging angles for quick setup
- Ground stackable for flexible deployment options
- Durable 15mm multi-laminate birch plywood enclosure with TourCoat polyurea finish
- Perforated steel grille with foam filter for driver protection
Arcline 8 Specifications
- Frequency Response:
- Single enclosure: 110 Hz - 20 kHz
- Three enclosures: 90 Hz - 20 kHz ±3 dB
- Sensitivity (1W/1m):
- LF: 97 dB (100 dB referenced to 1W)
- MF/HF: 103 dB (106 dB referenced to 1W)
- Impedance: 2 x 16 Ohms
- Power Handling:
- LF: 500 Watts AES
- MF/HF: 500 Watts AES
- Maximum Output: 128 dB continuous, 145 dB peak
- Driver Configuration:
- 2 x 8" mid drivers with phase device
- 2 x 8" horn-loaded low-frequency drivers
- 2 x 1.4" high-frequency compression drivers
- Dispersion: 110° horizontal by 12° vertical
- Connectors: 2 x 4-pole SpeakONâ„¢ NL4
- Dimensions (HxWxD): 11.2" x 34.7" x 18.5" (285mm x 881mm x 470mm)
- Weight: 86 lbs (39 kg)
- Enclosure: 15mm multi-laminate birch plywood
- Rigging: Pre-selectable rigging angles, ground stackable
- Finish: Textured polyurea
- Grille: Perforated steel with foam filter

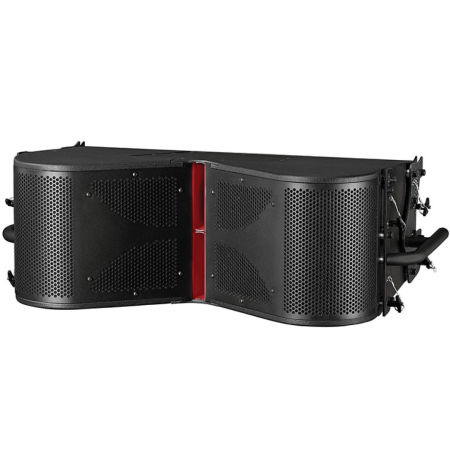

Void Arcline 8
(VOID Acoustics Arcline8)
