High-Efficiency Upper Bass Enclosure for Powerful Sound Systems
The

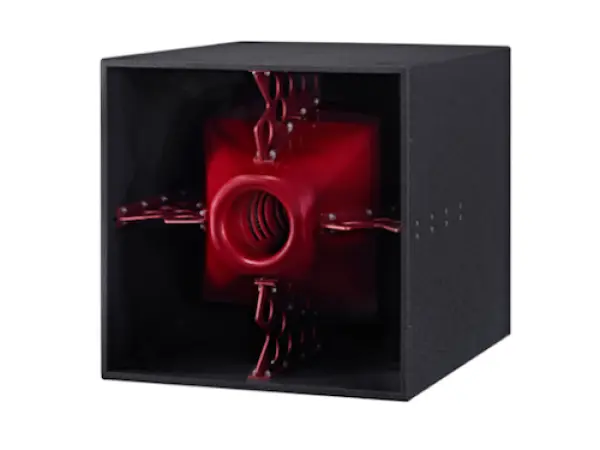

Void Acoustics Nexus Q is a high-powered, front-loaded horn upper bass enclosure, designed to deliver unparalleled upper bass frequencies with precision and clarity. Featuring four high-power 12" transducers in a newly developed 'pressure gradient' arrangement, the Nexus Q achieves exceptional output while eliminating turbulent or mechanical port noise. This unique design makes the Nexus Q an ideal choice for high-impact nightclubs, VIP rooms, and both indoor and outdoor dance events.
Void Acoustics Nexus Q Competitive Differences
- Four high-power 12" drivers with front-loaded horn design for superior efficiency
- Newly developed 'pressure gradient' arrangement for enhanced bass clarity
- Unparalleled output with maximum SPL of 151 dB peak
- Complete elimination of colouration from turbulent or mechanical port noise
- Dual Neutrik SpeakONâ„¢ NL4 connectors for easy and secure setup
Void Acoustics Nexus Q Description
The Nexus Q is part of the Nexus LF system and is specifically designed to handle upper bass frequencies with incredible efficiency and output. This powerful enclosure utilizes four 12" transducers arranged in a front-loaded horn configuration, ensuring high efficiency and impact. The newly developed 'pressure gradient' rear porting system provides the Nexus Q with seven distinct performance benefits, including unmatched definition and the total elimination of port noise.
The Nexus Q is ideal for high-impact nightclubs, large-scale dance events, and live music venues where accurate and powerful upper bass frequencies are essential. Its arrayable design ensures flexible deployment, whether used as a standalone unit or as part of a larger Nexus system. The enclosure’s rugged construction and high-performance components make it perfect for demanding environments.
Void Acoustics Nexus Q Features
- Four high-power 12" transducers for powerful upper bass performance
- Front-loaded horn design for high efficiency
- Newly developed 'pressure gradient' arrangement for noise-free performance
- Frequency response: 60Hz - 150Hz (-3dB)
- High SPL output: 145 dB continuous, 151 dB peak
- Arrayable design for flexible deployment
- Dual Neutrik SpeakONâ„¢ NL4 connectors
- Rugged, road-ready construction
Void Acoustics Nexus Q Specifications
- Frequency Response: 60Hz - 150Hz (-3dB)
- Efficiency: 110 dB 1W/1m
- Crossover Point: 70Hz
- Impedance: 2 x 4Ω
- Power Handling: 2 x 2000W RMS
- Maximum Output: 145 dB continuous, 151 dB peak
- Driver Configuration: 4 x 12" transducers
- Dispersion: Array dependent
- Connectors: 2 x 4-pole SpeakONâ„¢ NL4
- Dimensions (HxWxD): 738mm x 738mm x 860mm
- Weight: 130kg (287lbs)
Void Nexus-Q
(VOID Acoustics NexusQ)
