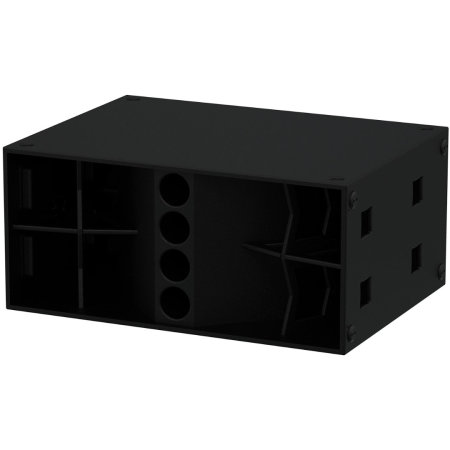

Powerful Double 18" Subwoofer for Large-Scale Touring and Venues
The
Void Acoustics Stasys X V2 is a high-performance double 18" horn-loaded subwoofer that builds upon the success of the original Stasys X, delivering enhanced power, precision, and efficiency for large-scale touring, live venues, and world-class nightclubs. With 3200W AES power handling and an innovative internal chamber design that improves cooling and reduces power compression, the Stasys X V2 ensures powerful low-end performance with greater transient response and phase accuracy.
Void Acoustics Stasys X V2 Competitive Differences
- 3200W AES power handling for extreme low-frequency output
- New internal chamber design minimizes power compression
- Improved transient and phase response for accurate timing
- Tough TourCoat polyurea finish for durability in rugged environments
- Truck-pack friendly dimensions and universal location receptors for easy transport and setup
Void Acoustics Stasys X V2 Description
The Stasys X V2 takes the renowned performance of the original Stasys X to the next level with significant design advancements. Its completely re-engineered internal resonant chambers improve cooling efficiency, eliminating the need for external heatsinks and greatly reducing power compression. This results in more consistent performance, even at high volumes. The redesigned chamber layout also enhances the subwoofer's transient and phase response, providing more uniform bass coverage and better predictability when used in arrays.
Equipped with two 18" low-frequency drivers, the Stasys X V2 delivers deep, impactful bass with a frequency response extending down to 30Hz. With a peak output of 142dB, it is capable of delivering powerful sound for large venues and outdoor events. The subwoofer's 18mm birch plywood construction and TourCoat finish provide durability for demanding touring environments, while its truck-pack friendly dimensions and universal location receptors make it easy to transport and set up. Dual Neutrik SpeakONâ„¢ NL4 connectors ensure reliable connections, making the Stasys X V2 an essential component in any professional sound system.
Void Acoustics Stasys X V2 Features
- Double 18" horn-loaded subwoofer for deep, impactful bass
- 3200W AES power handling for high-performance sound
- Improved transient and phase response for precise bass timing
- Negligible power compression for consistent, high-volume output
- Truck-pack friendly dimensions for easy transport
- Universal location receptors for secure stacking and setup
- 18mm birch plywood cabinet with TourCoat finish for durability
- Perforated steel grille with foam filter for driver protection
- Dual Neutrik SpeakONâ„¢ NL4 connectors for reliable connectivity
Void Acoustics Stasys X V2 Specifications
- Frequency Response: 30Hz - 180Hz ±3dB
- Efficiency: 103.8dB 1W/1m
- Crossover Point:
- 38Hz Hi-Pass 24dB/oct
- 100Hz - 145Hz Lo-Pass 24dB/oct
- Impedance: 4Ω
- Power Handling: 3200W AES
- Maximum Output: 138dB continuous, 142dB peak
- Driver Configuration: 2 x 18" low-frequency drivers
- Dispersion: Array dependent
- Connectors: 2 x 4-pole SpeakONâ„¢ NL4
- Dimensions (HxWxD): 562mm x 1218mm x 896mm (22.1" x 48" x 35.3")
- Weight: 130kg (286.6 lbs)
- Enclosure: 18mm birch plywood
- Finish: Textured polyurethane
- Grille: Perforated steel with foam filter
Void Stasys X V2
(VOID Acoustics Stasys-Xv2)
