High-Efficiency, Visually Striking Three-Way Loudspeaker for Style-Led Venues
The
Void Acoustics Tri Motion is a cutting-edge three-way bi-amped loudspeaker array designed for venues seeking both high-impact sound and striking aesthetics. Featuring a sculpted fibreglass Kevlar composite enclosure and triangular waveguides, the Tri Motion delivers superior pattern control and sound dispersion. Ideal for high-impact nightclubs, VIP rooms, and live music venues, this loudspeaker offers exceptional SPL, wide horizontal coverage, and powerful low-end response, making it a must-have for performance-driven environments.
Void Acoustics Tri Motion Competitive Differences
- Three-way bi-amped system for superior sound clarity and performance
- Triangular waveguides for improved pattern control and coverage
- Powerful 15" low-frequency driver for extended bass response
- Striking fibreglass Kevlar composite construction in Void’s signature red, with custom color options available
- Integrated flying and mounting system for flexible installation options
Void Acoustics Tri Motion Description
The Void Acoustics Tri Motion builds upon the success of the iconic Air Motion, delivering enhanced SPLs and expanded coverage in a more daring and compact format. With a sleek, triangular design and superior sound quality, the Tri Motion brings Void’s signature combination of art and acoustics to life in larger venues, providing excellent sound fidelity with wide horizontal dispersion and controlled vertical patterning.
The Tri Motion’s low-frequency section is powered by a 15" driver that extends down to 120Hz, allowing for more SPL and seamless integration into larger sound systems. The midrange is driven by an 8" horn-loaded transducer, offering high compression and asymmetrical vertical dispersion, while the high-frequency section features a 1.5" compression driver with diffraction slot loading for wide, even horizontal coverage.
This loudspeaker is designed for flexible deployment with its integrated flying and mounting system, making it suitable for both ground-stacked and flown configurations. Dual Neutrik SpeakON™ NL4 connectors ensure reliable connectivity, while the durable fibreglass Kevlar composite construction guarantees long-term reliability in demanding environments. Available in Void's signature red or custom colors to match your venue’s aesthetic, the Tri Motion is the perfect blend of performance and design.
Void Acoustics Tri Motion Features
- Three-way bi-amped loudspeaker for high-quality sound
- 15" low-frequency driver for extended bass response
- 8" horn-loaded midrange driver for precise pattern control
- 1.5" compression driver for wide high-frequency coverage
- Triangular waveguides for improved dispersion control
- Fibreglass Kevlar composite enclosure for durability and style
- Integrated flying and mounting system with optional stand or bracket
- Available in custom colors to match venue décor
Void Acoustics Tri Motion Specifications
- Frequency Response: 120Hz - 20kHz ±3dB
- Efficiency:
- LF: 107dB 1W/1m
- HMF: 110dB 1W/1m
- Crossover Points:
- LF: 120Hz and 500Hz
- HMF: 500Hz, passive 1.4kHz
- Impedance:
- Power Handling:
- LF: 700W RMS
- HMF: 350W RMS
- Maximum Output: 135dB continuous, 139dB peak
- Driver Configuration: 1 x 15" LF, 1 x 8" MF, 1 x 1.5" HF compression driver
- Dispersion: 90° horizontal, 60° vertical
- Protection: Internal electronic control
- Connectors: 2 x 4-pole SpeakONâ„¢ NL4
- Dimensions (HxWxD): 600mm x 800mm x 800mm (23.6" x 31.5" x 31.5")
- Weight: 47.1kg (103.8 lbs)
- Enclosure: Fibreglass Kevlar composite
- Rigging: Internal fly/mounting system, optional stand or bracket
- Color: Custom colors available upon request

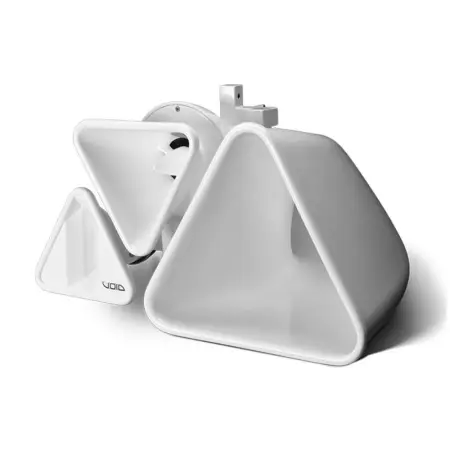

Void Tri Motion - White
(VOID Acoustics Tri-Motion White)
