Passive Line Array Element

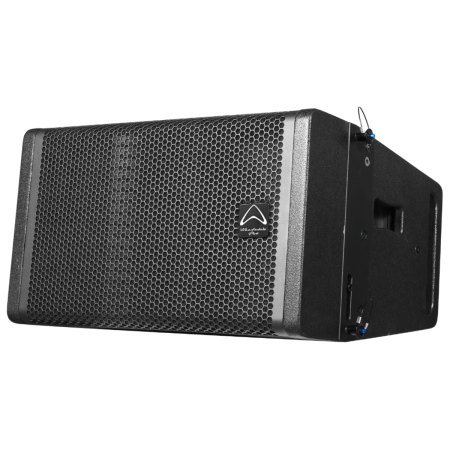

Wharfedale Pro WLA-112 is a 12-inch coaxial hybrid curvature array element designed for professional touring and fixed installation systems. It delivers high-output, controlled coverage from a compact passive enclosure with integrated rigging for flown, ground-stacked, or pole-mounted deployment.
Wharfedale Pro WLA-112 Competitive Differences
- Coaxial 2-way design with Beyma driver for coherent point-source performance
- EVO-Fold waveguide delivers controlled 100° x 20° nominal coverage
- 450W continuous, 900W program, and 1800W peak power handling
- 133dB max SPL for demanding touring and installation applications

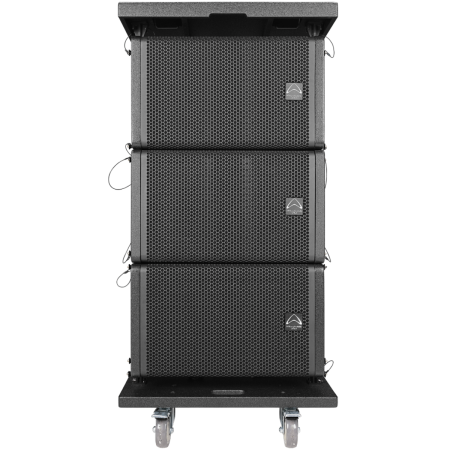

- Integrated 3-point rigging with flying, ground, and pole deployment options
Wharfedale Pro WLA-112 Description
The Wharfedale Pro WLA-112 is part of the WLA-1 System and is built for applications where output, precision, and consistent coverage are required. Its coaxial 2-way configuration helps reduce phase and spacing issues associated with traditional separated-driver designs.
At the core of the WLA-112 is a 12-inch Beyma ferrite LF driver with a 4-inch voice coil, paired with a compression driver using a 2.87-inch high-frequency voice coil. Together, the system delivers 450W continuous power handling and a maximum SPL of 133dB at 1 meter.

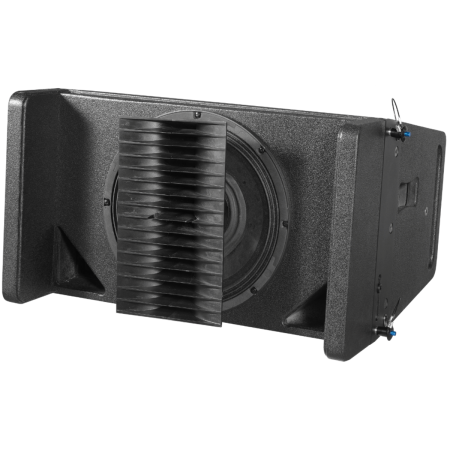

The EVO-Fold waveguide supports smooth horizontal and vertical dispersion, while dedicated FIR preset support helps provide phase-coherent response. This makes the WLA-112 suitable for live sound companies, production providers, venues, houses of worship, and installed performance spaces.

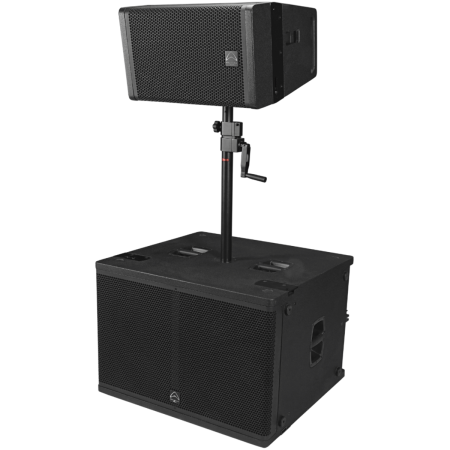

The birch plywood trapezoid cabinet features a black Tough-Tone finish, powder-coated perforated steel grille, multiple handles, and integrated rigging hardware. Deployment options include flying, ground stacking, and 35mm dual-angle pole mounting.
WLA-112 Features
- 12-inch passive coaxial hybrid curvature array element
- Coaxial 2-way configuration
- Beyma driver with ferrite LF magnet
- EVO-Fold waveguide technology
- 450W continuous, 900W program, 1800W peak power handling
- 133dB maximum SPL at 1 meter
- 100° x 20° nominal HF coverage
- Vertical splay angles of 0°, 5°, 10°, and 15°
- Dedicated preset library with FIR preset support
- Birch plywood trapezoid enclosure
- Powder-coated perforated steel grille
- Integrated 3-point rigging
- Supports flying, ground, and pole deployment
- 35mm dual-angle pole mount with -2.5° / +7.5° angles
WLA-112 Specifications
- Active or Passive: Passive
- System Type: Array element
- Configuration: Coaxial 2-way
- System Continuous Power: 450W
- System Program Power: 900W
- System Peak Power: 1800W
- Max SPL: 133dB at 1m
- Frequency Response: 55 Hz - 20 kHz (+/-3 dB)
- Frequency Range: 35 Hz - 25 kHz (-10 dB)
- Driver Brand: Beyma
- LF Driver Size: 12 in
- LF Magnet Material: Ferrite
- LF Frame Material: Aluminum
- LF Voice Coil Size: 4 in
- HF Driver Type: Compression driver
- HF Voice Coil Size: 2.87 in
- HF Diaphragm Material: Composite titanium / polyester
- HF Exit Size: 1.5 in
- HF Power: 80W
- HF Rated Impedance: 16 ohms
- HF Nominal Coverage: 100° x 20°
- Vertical Splay Angle Range: 0°, 5°, 10°, 15°
- Horizontal Splay Angle: 15°

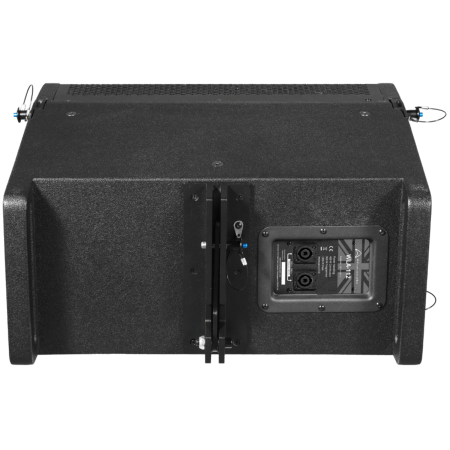

- Input Connectors: 2 x 4-pole speaker connectors
- Waveguide Type: EVO-Fold
- Cabinet Type: Trapezoid
- Enclosure Material: Birch plywood
- Grille: Powder-coated perforated steel
- Finish: Black Tough-Tone
- Handles: 2 side / 2 back
- Deployment: Flying, ground, pole
- Pole Mount: 35 mm dual angle, -2.5° / +7.5°
- Rigging: Integrated 3-point rigging
- Sensitivity: 101dB, 2.83V / 1m
- System Rated Impedance: 8 ohms
- Crossover Frequency: 1.2 kHz
- Recommended HPF: 30 Hz, BW 18 dB/oct
- Dimensions: 13.1 x 22.3 x 18.3 in (332 x 566 x 465 mm)
- Rear Height: 9.7 in (246 mm)
- Weight: 64.8 lb (29.4 kg)
What's In The Box
- Wharfedale Pro WLA-112 array element
- Brackets
- User manual
Wharfedale Pro WLA-112
(Wharfedale Pro WD-WLA-112)
