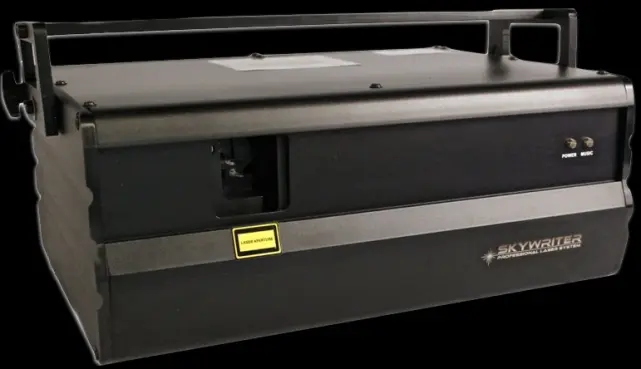

X-Laser Skywriter Series
“Skywriter” – The name alone conjures up endless possibilities that are uniquely
suited for an X-Laser. Production companies at home and abroad alike agreed and
ordered it in record numbers making it our most frequently specified high
powered laser platform of the last few years.
Roadworthy and field serviceable, the 2012 Skywriters now feature higher output
power, crisper optics, double the scanner speed, and even an SD card reader
built right in so .ild files can be fired remotely from DMX.
FDA Certified, Class IIIB & IV. Skywriters comply with UL, cUL, ETL, CE and IEC
standards for high powered entertainment laser systems.
XLaser Sky Writer Series
X-Laser Skywriter Highlights
2X Scanner Speed
The 2012 Skywriters now feature even faster graphics scanners with up
to 2x the speed of the 2010-2011 models. More speed is great for
rendering larger or more complex graphics smoothly.
Road Ready
Skywriter’s front panel flips down allowing laser technicians to
easily perform critical alignments and field service while on the road
with nothing more than an allen key set.
Loaded With Features
From filtered air intakes to an integrated SD card reader and beyond,
X-Laser’s 2012 Skywriters are ready to meet virtually any task wherever
it may be.
Features
- 2x Scanner Speed: 2012 Skywriter models feature
30,000pps graphics scanners, doubling the speed from previous models
allowing you to project HUGE billboard sized graphics.
- Up to 4x Power: 2012 Skywriters now feature
power levels up to 2W, and RGB power more than twice that of
previous models.
- Many Modes of Control: 14 Channels of DMX,
Sound Active, Auto, Playback .ild Files on SD card via DMX, Auto SD
on power-up, and of course, ILDA with a passthrough.
- Safety Systems: FDA & IEC compliant, Skywriters
safety systems are second to none and include both an interlock
circuit and FDA compliant key lock. An optional scan fail system is
available by request.
Many other options and power levels are available by request as
custom builds. Skywriters come in two sizes depending on the amount
of hardware included in the housing. Large size housings ship in ATA
flight cases and small housings ship in custom shock resistant
boxes. Please note that BEYOND and Quickshow do not presently export
to .ild for use with the SD card system. Stock .ild files can be
purchased online, made custom by a variety of online vendors or
created using a number of software packages including Pangolin’s
LD2000.
Different X-Laser Sky Writer Series Models
- Green: 150, 300, 500 & 1,000mW
- Red: 300mW
- Blue: 300, 600 & 2,000mW Sapphire Blue
- RGY: 450mW Red, Green & Yellow
- GBC: 450mW Green, Blue & Cyan
- RGB: 750mW Red, Green, Blue, Yellow, Cyan, Magenta
& White.
