Xvive U45

Wireless In-Ear Monitor System

The Xvive U45 is a compact 5.8 GHz wireless in-ear monitoring system designed to send a mono monitor mix from a mixer, audio interface, or other audio source directly to a performer's earphones or headphones. With 24-bit/48 kHz audio, 5 ms latency, a 20 Hz–20 kHz frequency response, and up to 100 ft of line-of-sight operating range, it provides performers with a portable monitoring solution for live shows, rehearsals, recording sessions, and private practice.

Xvive U45 Competitive Differences

• 5.8 GHz True Diversity wireless operation uses a less crowded frequency range than typical 2.4 GHz wireless environments
• Receiver can scan available wireless channels and select the optimal channel
• Six switchable channels with support for up to six systems operating simultaneously in one area
• High-resolution 24-bit/48 kHz digital audio with 5 ms latency
• Up to 100 ft (30.5 m) line-of-sight wireless operating range
• Rechargeable transmitter and receiver provide up to 5 hours of battery life

Xvive U45 Description

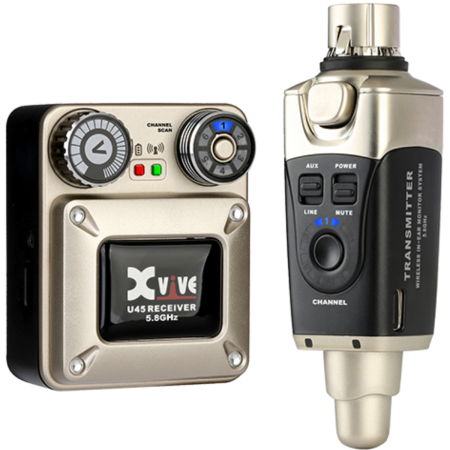

The Xvive U45 consists of a compact U45T transmitter and U45R belt-pack receiver. The transmitter connects directly to a balanced XLR audio output or to a mono 1/4 in TS output using the supplied adapter, while the receiver provides a 3.5 mm dual-mono headphone output for connecting in-ear monitors, earphones, or headphones.

Audio is transmitted at 24-bit/48 kHz resolution with a wide 20 Hz–20 kHz frequency response, 110 dB dynamic range, 110 dB signal-to-noise ratio, and 0.2% total harmonic distortion. The mono system operates in the 5.8 GHz ISM band and provides six selectable channels, allowing up to six compatible systems to operate in the same area. The receiver's channel-scan function helps identify the optimal available wireless channel before the transmitter is set to the matching channel.

Both components use molded plastic and cast metal housings for a balance of portability and durability. The transmitter weighs just 3.17 oz (90 g), while the receiver weighs 4.16 oz (118 g), making the system easy to integrate into a performer's stage setup. Internal rechargeable lithium-ion batteries deliver up to 5 hours of operation and recharge through USB in approximately 2.5 hours.

The U45 is suitable for musicians, vocalists, DJs, presenters, recording performers, and other users who need freedom of movement while monitoring audio. Multiple receivers can also be set to the same transmitter channel when several listeners need to hear the same mono signal.

U45 Features

• 5.8 GHz True Diversity wireless in-ear monitoring system
• Mono wireless audio transmission
• 24-bit/48 kHz high-resolution digital audio
• 20 Hz–20 kHz frequency response
• 110 dB dynamic range
• 110 dB signal-to-noise ratio
• 5 ms latency
• Up to 100 ft (30.5 m) line-of-sight operating range
• Six switchable wireless channels
• Up to six systems can operate simultaneously in one area
• Receiver channel-scan function selects the optimal available channel
• Balanced XLR transmitter input
• Mono unbalanced 1/4 in TS compatibility with supplied adapter
• Selectable Aux and Line input modes
• 3.5 mm dual-mono receiver headphone output
• Receiver volume control
• Internal rechargeable lithium-ion batteries in transmitter and receiver
• Up to 5 hours of battery life
• USB charging
• Molded plastic and cast metal housings

U45 Specifications

• Wireless Type: 5.8 GHz ISM worldwide open band
• Audio Format: 24-bit / 48 kHz
• Switchable Channels: 6
• Simultaneous Systems: Up to 6
• Audio Mode: Mono
• Frequency Response: 20 Hz–20 kHz (-3 dB)
• Dynamic Range: 110 dB
• Signal-to-Noise Ratio: 110 dB
• Total Harmonic Distortion: 0.2%
• Latency: 5 ms
• Operating Range: Up to 100 ft (30.5 m), line-of-sight
• RF Sensitivity: -88 dBm
• RF Output Power: 25 mW E.I.R.P. maximum
• Operating Temperature: 32°F–113°F (0°C–45°C)
• Transmitter: U45T
• Transmitter Input: Balanced XLR male
• Transmitter Input Impedance: 220 ohms at 1 kHz
• Aux Input Mode: -10 dBV, maximum +12.2 dBu
• Line Input Mode: +4 dBu, maximum +22 dBu
• Transmitter Dimensions: 3.8 x 1.2 x 1.1 in (100 x 30 x 28 mm)
• Transmitter Weight: 3.17 oz (90 g)
• Transmitter Battery: 3.7V rechargeable lithium-ion, 860 mAh
• Receiver: U45R
• Receiver Output: 3.5 mm / 1/8 in dual-mono headphone output
• Receiver Headphone Impedance Range: 6–600 ohms
• Receiver Dimensions: 2.36 x 1.85 x 1.61 in (60 x 47 x 41 mm)
• Receiver Weight: 4.16 oz (118 g)
• Receiver Battery: 3.7V rechargeable lithium-ion, 1200 mAh
• Battery Life: Up to 5 hours
• Charging Time: Approximately 2.5 hours for a full charge
• Charging Voltage: 5V USB
• Housing: Molded plastic and cast metal
• Antenna Type: 1/4-wave sleeve dipole, non-removable

What's In The Box

• U45T transmitter
• U45R receiver
• USB charging cable
• 1/4 in TS adapter

Xvive U45 (XVive U-45)
