8" bass-reflex studio powered subwoofer delivers low frequencies down to 22Hz
22Hz - 150Hz frequency response
High-power 150W amplifier exclusively designed for low frequencies
LOW CUT switch, LOW CUT control (80-120Hz) HIGH CUT control (80-120 Hz)
PHASE switch allow users to set up a subwoofer system with simple connections and no additional equipment
XLR and TRS phone for outputs and XLR for L and R and EXT SUB
Wanna feel the bass? The Yamaha HS8S delivers. This 8" bass-reflex powered subwoofer serves up accurate low frequencies down to 22Hz, so you hear everything that's on your recording. The good, the bad, the awesome. Yamaha has engineered the HS8S with a beefy 150W amplifier purpose-built for low frequencies. The ideal match for Yamaha's HS series full-range monitors, the HS8S is your affordable, compact solution for extended-range monitoring in your studio. And if your projects take you on the road, this 27.6-pound bass monster makes a perfect travel companion. Feel the low end - all of it - with the Yamaha HS8S.
Yamaha HS8S Specifications
Speaker type Powered subwoofer
Frequency range (-10dB) 22Hz - 160Hz
Components LF 8" cone
Output power 150W

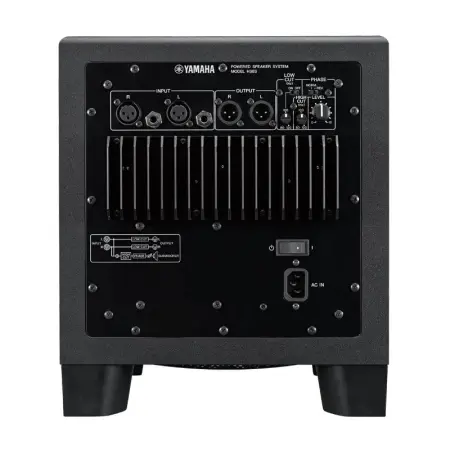

I/O connectors INPUT: XLR3-31 type (balanced) x2, PHONE (balanced) x2 / OUTPUT: XLR3-32 type (balanced) x2 (L&R), XLR3-32 type (balanced) x1 (EXT SUB)
Power consumption 70W
Shape Bass-reflex type
Cabinet material MDF
Dimensions W 300mm (11.8")
H 350mm (13.8")
D 389mm (15.3")
Net weight 12.5kg (27.6 lbs.)
Others LEVEL control, PHASE switch : NORM./REV., HIGH CUT control (80-120Hz, center click), LOW CUT control (80-120Hz, center click), LOW CUT switch (ON/OFF)
