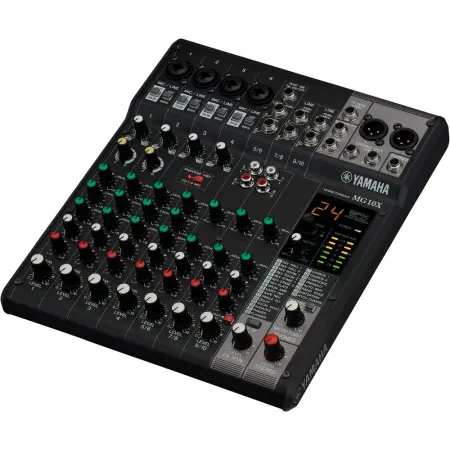

Audio professionals looking for a high-quality analog mixer with integrated effects will be impressed with the Yamaha MG10X, a compact ten-input mixer with built-in effects for performances, lectures, recordings, and similar applications. The mixer features four mic/line combo inputs with D-Pre mic preamps as well as six 1/4" line inputs with stereo level controls. Each of the four mic/line inputs is equipped with a 3-band EQ, pan control, and a high-pass filter. The four D-Pre mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26 dB attenuation switches for recording loud sound sources such as guitar amplifiers. Channels 1 and 2 are equipped with Yamaha's 1-knob compression for easy adjustment and professional results.
The MG10XU mixer has stereo XLR and TRS outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers, or devices such as digital recorders. Each of the MG10XU's channels feature a dedicated FX bus send level, and there are 24 effect presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion, and more, these effects can be used to help vocals and instruments sit better in your mix.
Features:
Four Mic/Line Combo Inputs
Six 1/4" Line Inputs
Built-In FX with 24 Presets
XLR and TRS 1/4" Stereo Outs
TRS Monitor Outs
D-Pre Mic Preamps with 48V Phantom
HPF and 3-Band EQ on Mic/Line Inputs
1/4" Headphone Output with Level Control
Yamaha Pro MG10X-CV
(Yamaha MG10X CV)
