Digital Mixing Console for Streaming, Live Sound & Video
The

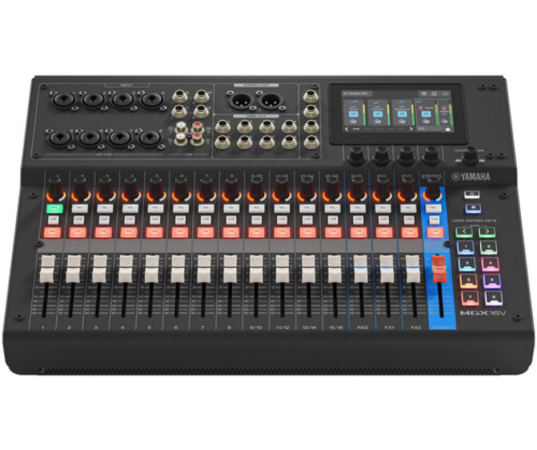

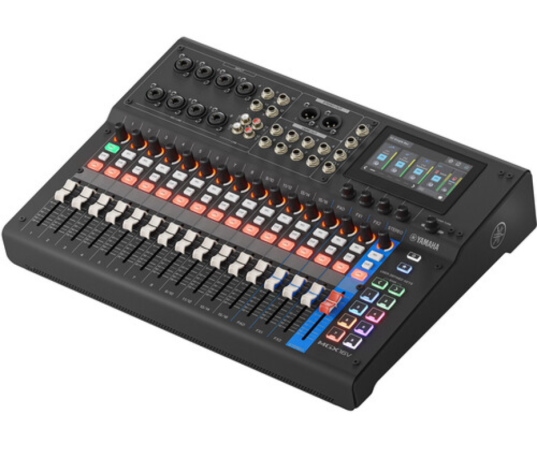

Yamaha MGX16V B is a powerful 22-channel digital mixer designed for hybrid productions, streaming, podcasting, and live sound. Combining Yamaha’s “True Sound” audio quality with advanced video capture and multitrack recording, this all-in-one console streamlines your setup with intuitive hands-on control, customizable workflows, and pro-grade connectivity.
Yamaha MGX16V B Competitive Differences
- HDMI capture and pass-through for integrated audio + video streaming
- Dual USB-C ports: 18x18 and 2x2 multitrack record/playback
Yamaha MGX16V B Description
The
Yamaha MGX16V B redefines what a compact digital mixer can do. Designed for professionals managing complex live productions or hybrid events, it offers versatile input/output routing, studio-grade processing, and seamless video/audio integration.
At its core are 8 high-gain combo mic/line inputs and a suite of stereo and RCA inputs, paired with 14 output channels including XLR mains, 8 Omni outs, and 4 headphone ports. The MGX mic preamps offer an ultra-clean 86dB gain range and 125dB dynamic range at output, ensuring exceptional sound clarity for vocals and instruments alike.
Beyond audio, the MGX16V includes HDMI video I/O for capture and pass-through at up to 4K60 or 1080p240, allowing direct integration with streaming and recording platforms. Dual USB-C ports offer powerful routing: one for full 18x18 multitrack recording/playback, and one for 2x2 stereo connectivity.
Built-in FX, compression, EQ, and gate tools are controlled via motorized faders, a 4.3" touchscreen, and assignable knobs. Smart features like auto gain, Clip Safe, ducking, and multi-band compression make it easy to maintain clean, consistent sound in dynamic environments. Eight customizable sound pads and banks let you trigger effects or recall scenes live.

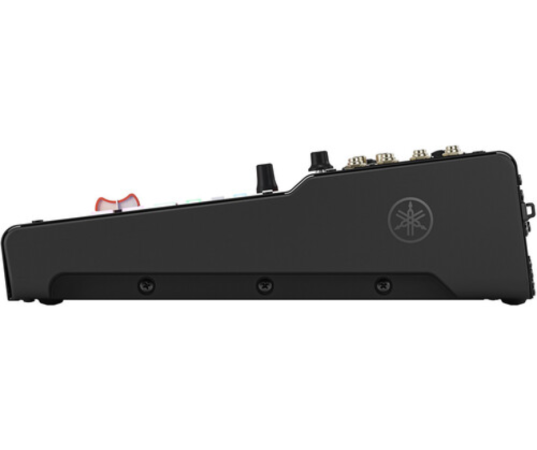

Despite its power, the MGX16V remains lightweight and rack-mountable, making it ideal for mobile use, studio setups, or permanent installations.
Model Features
- 16-channel digital mixer with 8 mic/line inputs and 4 stereo line inputs
- HDMI IN/THRU for 4K60 video capture and pass-through
- Dual USB-C ports for 18x18 and 2x2 multitrack audio
- Bluetooth 5.0 wireless audio input
- MicroSD recording and playback (up to 16-track recording)
- Built-in FX, EQ, compression, voice changer, amp sim, and gate
- Smart Gain, Clip Safe, ducking, and multi-band compression

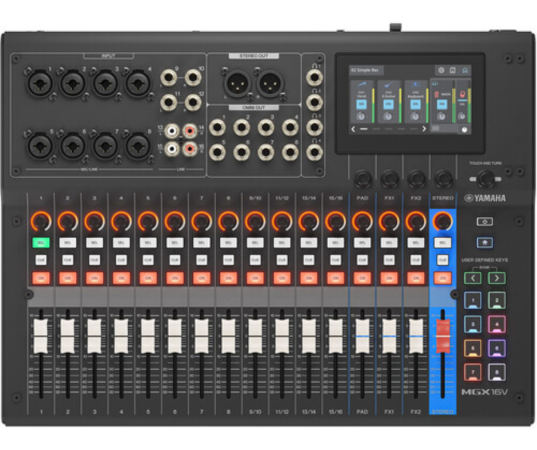

- 4.3" LCD touchscreen + motorized 60mm faders
- Customizable sound pads and assignable knobs with 4 banks
- Scene recall and simple mode for quick configuration
- Lightweight and rack mountable
Model Specifications
- Max I/O: 16 input / 14 output
- Mic Preamps: 8x combo XLR-1/4" TRS
- Line Inputs: 4x 1/4" TRS + 2x stereo RCA
- Main Outputs: 2x XLR
- Other Outputs: 8x 1/4" TRS Omni, 4x 1/4" headphone
- Faders: 16x motorized 60mm channel faders
- Display: 4.3" LCD touchscreen
- Built-in Effects: 11 FX types
- Digital Sample Rates: 44.1 kHz / 96 kHz
- Frequency Response: 20 Hz – 20 kHz (+1/-2 dB)
- Dynamic Range: 125 dB (output), 115 dB (in to out)
- THD: < 0.002%
- Noise Floor: -108 dBu
- Headphone Output: 100 mW per channel into 40Ω
- USB I/O:
- USB MAIN: 1x USB-C (18-in / 18-out multitrack)
- USB SUB: 1x USB-C (2-in / 2-out + control)
- Recording: 16-track SD card recording (MP3, WAV)
- Wireless: Built-in Bluetooth 5.0

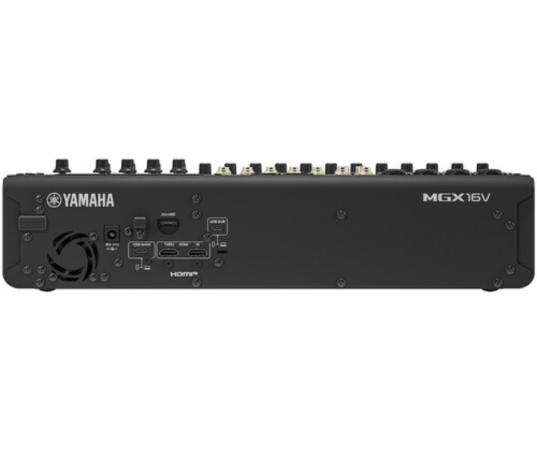

- HDMI: 2x HDMI (IN/THRU) – 4K60 and 1080p240 capture
- Power: 16 VDC @ 2.4A or 100–240V AC
- Dimensions: 16.5 x 3.8 x 12.5 in (419 x 96 x 318 mm)
- Weight: 10.8 lb (4.9 kg)
What's In The Box
- Yamaha MGX16V B digital mixer
- Power adapter
- Quick start guide
- Software bundle (Steinberg + MixKey)
Yamaha MGX16V B
(Ableton MGX16V-B)
