Dante I/O Expansion Card

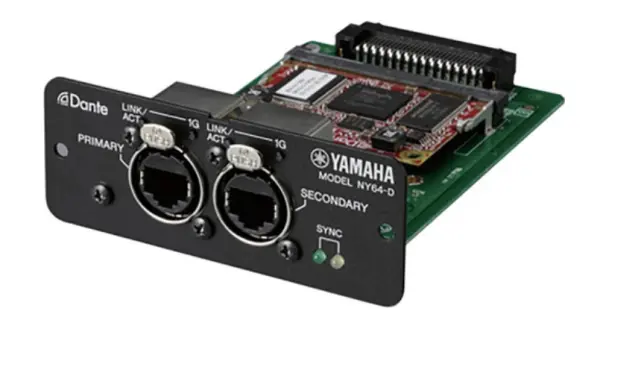

Yamaha NY64-D is a Dante expansion card designed for Yamaha TF-series digital mixers. It adds 64 channels of input and 64 channels of output over Dante audio networking, expanding the I/O capabilities of your system for stageboxes, audio routing, and multitrack recording.
Yamaha NY64-D Competitive Differences
- Enables 128 channels (64 in / 64 out) of 24-bit/48kHz digital audio
- Direct integration with Dante-enabled devices and networks
Yamaha NY64-D Description
The
Yamaha NY64-D gives TF-series digital mixer users access to the full power and flexibility of Dante audio networking. Once installed in the expansion slot of a TF1, TF3, or TF5 console, it allows up to 128 channels of bi-directional uncompressed digital audio (64 in / 64 out) at 48kHz and 24-bit resolution.
The card connects via two etherCON ports and integrates seamlessly with Dante-enabled devices and audio systems. It's ideal for live sound, installations, broadcast, and recording where high channel counts and flexible audio routing are needed.
Compatible with Yamaha’s Tio1608-D I/O rack, the NY64-D also supports scalable stagebox configurations. A single TF console equipped with an NY64-D card and paired with up to three Tio1608-D units can provide 48 mic/line inputs and 24 outputs, all routed and synced over a Dante network.
Model Features
- Expands TF-series mixer connectivity via Dante protocol
- Supports 64 channels in / 64 channels out (128 total)
- 24-bit/48kHz uncompressed digital audio transmission
- Dual etherCON connectors for Dante redundancy or daisy-chaining
- Seamless integration with Dante-compatible devices and software
- Pairs with Tio1608-D I/O rack for remote stagebox applications
Model Specifications
- Compatibility: Yamaha TF1, TF3, TF5 digital mixers
- Audio Format: 24-bit / 48kHz
- Channel Capacity: 64 in / 64 out
- Connectors: 2 x RJ45 etherCON
- Dimensions (Packaging): 8.8 x 7.1 x 3.6 in
- Weight: 1 lb
What's In The Box
- Yamaha NY64-D Dante expansion card
- Mounting screws
- Documentation
Yamaha NY64D
(Yamaha NYD-64)
