Yamaha URX22 W | 32-Bit Audio Interface with Touch...
$399.99
Yamaha URX22 W is a high-resolution 4-in/2-out USB-C audio interface engineered for modern creators. With onboard DSP effects, customizable touch controls, and dual USB-C ports for advanced routing, it's perfect for livestreaming, music production, podcasting, and content creation.

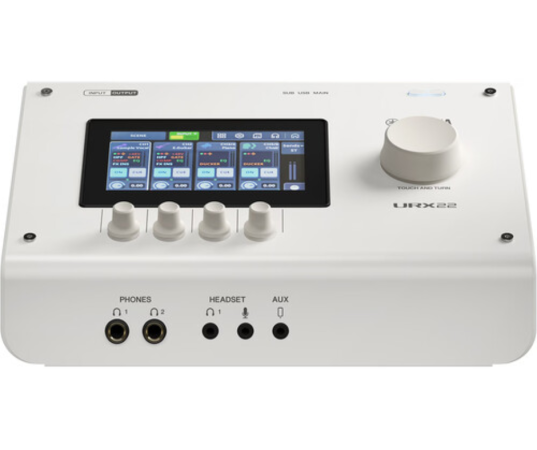

The Yamaha URX22 W brings powerful audio processing and user-friendly controls to the forefront with its 4.3" color touchscreen, four customizable knobs, and real-time DSP mixing. Designed with streamers and musicians in mind, it supports studio-grade 32-bit / 192 kHz audio resolution while offering onboard tools like EQ, compression, reverb, and pitch correction.

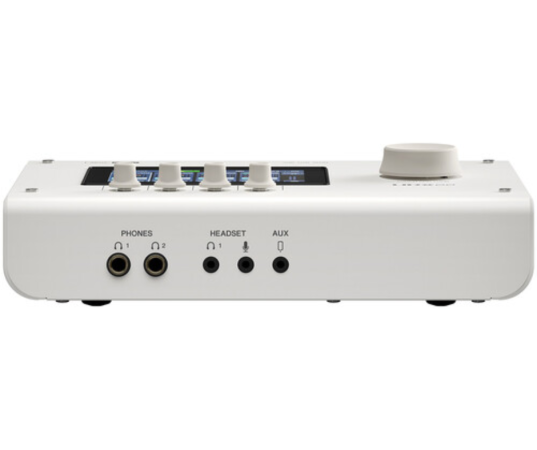

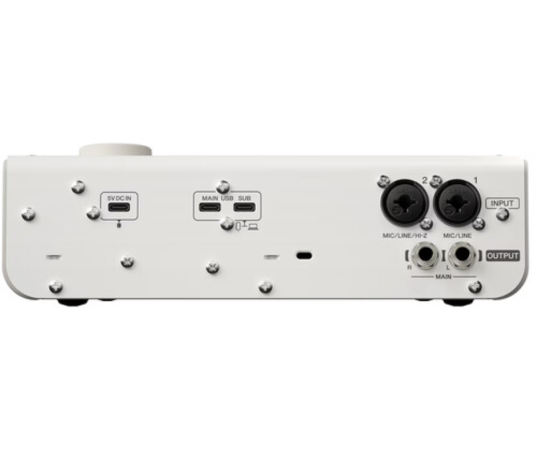

Input options include two combo XLR-1/4" mic/line/Hi-Z jacks and multiple 3.5mm aux, headset, and mic inputs. Outputs include TRS main and line outs, plus dual headphone jacks for collaborative monitoring. Phantom power, up to 78 dB of gain, and a dynamic range up to 125 dB ensure pro-level clarity.
The dual USB-C configuration sets it apart. Use the Main port for full 16-track operation or connect to the Sub port for simultaneous 2-track streaming. This allows for incredibly flexible routing setups across DAWs, streaming platforms, and hardware devices. Assistive tools like Auto Gain, Clip Safe, and Ducker help automate and polish your sound.
Scene Recall enables fast setup changes, and full integration with OBS Studio and Elgato Stream Deck rounds out the URX22 W as a control hub for hybrid workflows. It also comes bundled with a Steinberg software suite and Yamaha’s MixKey mixer to jumpstart your production journey.
| App Control | Compatible with OBS Studio and Elgato Stream Deck |
| Control Interfaces | 4.3" color touchscreen, 4 customizable knobs |
| Onboard DSP | EQ, gate, compressor, reverb, amp sim, voice changer, Auto Gain, Clip Safe, Ducker, multiband compression |
| Preset Storage | Scene Recall and Simple Mode for fast setup switching |
| Brand | Yamaha |
| Name | Yamaha URX22 W |
| Primary Category | USB Audio Interface |
| Channels | 4-in/2-out |
| Connectivity Protocols | Dual USB-C ports (Main and Sub) |
| Frequency Response | 32-bit / 192 kHz sampling hz |
| Power Consumption | 15W typical W |
| Dimensions | 9.6 x 7.2 x 3.1 in (24.4 x 18.3 x 7.9 cm) |
| Included Accessories | USB-C Cable, Software Download Information |
| Weight | 4.2 lb (1.9 kg) kg |
| Warranty Length | Not specified years |
