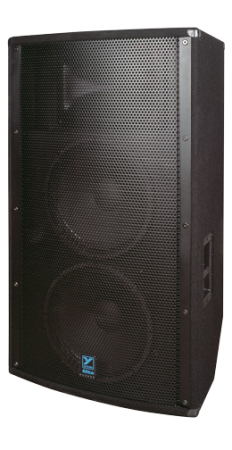

Yorkville E2152
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
Features
3200 Watt Full Range Loudspeaker (1600 Watts Program)
2x15-inch Woofers / 2-inch HF Driver (1.5-inch Throat)
Max SPL 137dB Peak (134dB Continuous)
Designed for Full Range Front-of-House Performance
90° x 40° Composite Conical Radial Horn
Effective ATPâ„¢ High Frequency Driver Protection
2 x Speakonâ„¢ and 2 x 1/4-inch Parallel Inputs
Integrated All Metal Speaker Standmount Adaptor
Solid 5/8-inch (15mm) Birch Plywood Construction
Made in Canada
Specifications
System Type Two-Way
Active or Passive Passive
Program Power (Watts) 1600 Watts (3200 Peak / 800 Continuous)
Biampable Yes
Nominal Impedance (Ohms) 4
Sensitivity (dB @1Watt/1m) 102
Max SPL (dB) 137dB Peak (134dB Continuous)
Frequency Response (Hz +/- 3dB) 50 - 20k
Crossover Frequency (Hz) 1500
Driver Configuration 2 x 15-inch / 1.5-inch
HF Driver(s) 2-inch Titanium Diaphragm (1.5-inch throat )
HF Horn Composite Conical Radial
HF Dispersion (°H x °V) 90 x 40
HF Protection ATPâ„¢
LF Driver(s) 2 x 15-inch (3-inch voicecoil)
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Wheels 2
Bar Handles 2 Corner, 2 Side
Flying Hardware 3/8-inch x 9 (All Corners)
Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
Grille Perforated Metal
Covering / Finish Black Ozite (Carpet)
Optional Covering / Finishes Black Ultrathane Paint (E2152B)
Processor (optional) EP2152
Dimensions (DWH xbackW, inches) 19 x 26 x 45 x 11
Dimensions (DWH xbackW, cm) 48 x 66 x 115 x 28
Weight (lbs/kg) 149 / 67.6
Overview
This 2 x 15-inch / 2-inch cabinet proves that matched drivers do make a cabinet better. The design of this bi-ampable trapezoidal cabinet incorporates a 2-inch high frequency driver which has exceptional upper frequency response yet provides highly efficient mid-range output as well. The driver fires through an ultra-modern true conical radial horn, back-set to optimize time alignment with the low frequency section.
The Yorkville designed 90° x 40° horn is composed of a rigid, non-resonant high-tech composite which virtually eliminates high frequency coloration. The E2152 features the ATPâ„¢ protection scheme. The electronics have also been updated to provide a firm acoustic bond between low and high frequency using phase correction filters.
Integrated flypoints mean the E2152 can be easily used in any install, touring or club rig. The E2152 is perfect for applications in medium to large sized venues, especially when used with an EP2152 processor and/or optional élite subwoofers.
E2152 - Black Ozite (Carpet) Finish
E2152B - Black Ultrathane (Painted) Finish
Technology
A modified trapezoidal shape and recessed input jack panel and handles mean these cabinets can function perfectly as a wedge monitor or front-of-house loudspeaker. Unlike some 'multi-function' loudspeakers currently in the marketplace, great care has been taken in the design process to ensure that élite cabinets will perform without compromising functionality as either a monitor or a front-of-house enclosure. Neither application was considered as an afterthought.
Several of the élite loudspeakers are loaded with 80° x 50° rotatable ABS Waveguide horn assemblies (the E10 utilizes a 100° x 25° horn). The ability to rotate the horn assembly ensures that the cabinet can provide optimum high frequency dispersion when the loudspeaker is used in either a vertical, horizontal or arrayed application.
Integrated stand mount adapters and flyware means these enclosures can be utilized in any permanent install or touring application. In addition, the modified cabinet shape means the élite series can be installed much closer to vertical surfaces and in some cases, under balconies in tight locations, and can be arrayed in a much tighter less obtrusive cluster.
Advanced Crossover Networks and Protection Schemes
The majority of the élite range feature seamless driver interaction through sophisticated high-slope passive networks and ingenious component protection schemes. Rugged jackplates are inset and include a combination of both Speakonâ„¢ and 1/4" phone jack inputs.
Advanced PTCâ„¢ Horn Protection makes its debut in the élite series.
PTCâ„¢ is an ingenious current sensing / self resetting breaker that offers some serious advantages over current protection schemes used in many loudspeaker cabinets. This protection scheme, while always present in the signal path, remains inaudible until it becomes necessary for it to react. It kicks in at a point where it effectively reduces output to the horn and protects that diaphragm from damage due to excessive power input or signal distortion. Unlike a breaker it does not require a physical reset to allow signal back to the horn driver, and unlike a bulb or fuse, does not need to be replaced if the circuit is tripped, and the fuse is blown.
Where PTCâ„¢ shines is in heavy feedback environments where most horn diaphragm damage occurs. In rare situations even where a microphone might be dropped in a monitor, the sustained 'squeal' can destroy diaphragms in seconds. PTCâ„¢ will significantly reduce output level to the horn to protect the diaphragm. When the situation has been rectified, and the feedback eliminated the horn will return to full operating level within half a second.
The E2152 features the ATPâ„¢ (Active-Transistor) protection system, which allows the horn driver to operate at levels significantly above those required for normal operation. The ATPâ„¢ brickwall element of the protection circuit uses power transistors configured to operate linearly yet have the fast attack required to protect against harmful transients. Along with ATPâ„¢, the crossover also incorporates air core coils and polypropylene capacitors to guarantee reliable and distortion free operation at extreme levels. The sonic benefit is higher output and greater transparency when operating at high levels.
Processor Controlled
Full function stereo analog processors that are configurable for passive or bi-amp operation, as well as live or recorded music applications make sure that your élite system is always tuned and ready.
Rugged Driver Mounting System
All élite cabinets feature a specially reinforced driver mounting system that makes sure the horn drivers will still be attached to the horns when you get to the show. The ABS or composite horns are pressure fitted to the driver which is bolted to the internal driver support.
Custom Design Horns
Custom ABS plastic and composite horns are specifically designed for each cabinet and manufactured right in our factory for optimum quality control. This insures proper waveguide output for better clarity and lower distortion.
Curved Metal Speaker Grilles
Curved metal grilles absorb shocks evenly to resist dings and dents while eliminating frequency resonance. The trapezoidal cabinet shape allows for arrayable performance without phase cancellation.
Recessed Handles
All élite cabinets feature attractively recessed bar handles. Great care is taken to make sure that they "stay out of the way", but are easy to get at when you need them.
Integrated Wheels
Tilt back wheels and top-mounted handles are standard issue on the larger cabinets such as the E215, E2152, LS1208 and LS1004.
