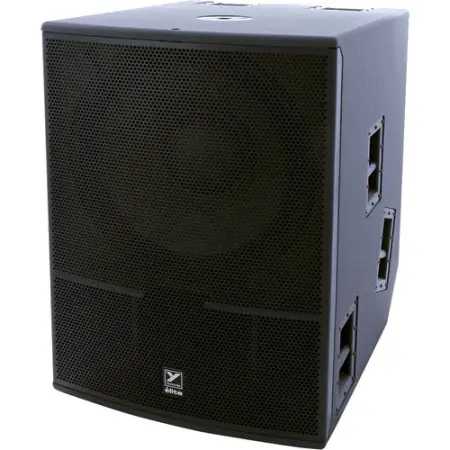

Yorkville ES21P

21-inch - 2400 watts
The most powerful subwoofer in the elite family.

The ES21P is a 21- inch active subwoofer that dials up the watts to produce an astonishing amount of low-end output. Adding to Elite's existing line of 12, 15 and 18 inch subwoofers, the ES21P is an accessible solution for demanding club and concert settings.

Features:

21-inch rear horn loaded subwoofer
2400 watts (3600 watts Peak)
142db Peak (136dB Continuous)
32-150 (Hz +/- 3dB) Max SPL
Selectable Punchy, Smooth and Deep modes
80Hz to 150 Hz High Frequency Roll-off
2 Wheels with rear tilt back
Handles 2X top rear, 2X bottom front, 3X each side
Pole mount adapter 1X Top (1 3/8-inch-3.5 cm)

Specifications:

System Type Rear Horn Loaded Subwoofer
Active or Passive Active
Program Power (Watts) 2400 watts (3600 Watts Peak)
Max SPL (dB) 142dB Peak (136dB Continuous)
Frequency Response (Hz +/- 3dB) 32 - 150 (Hz +/- 3dB)
LF Driver(s) 21-inch Cast Frame Woofer w/6-inch Voicecoil
LF Protection Thermal / Overcurrent (X-max) / Clip
Power Consumption (typ/max) 120V (4.0A / 5.6A), 230V (2.0A / 2.8A)
In / Out Connections 1 x XLR Input
1 x XLR Mono Blend Input
1 x ¼-inch Link Input
1 x ¼-inch Link Output
1 x XLR Link Output
Level Controls Master - Sub Level
LED Indicators Power, Activity, Protection (Clip, X-Max, Temp)
Other Controls / Features Active Controls: Mode - 1 Punchy, 2 Smooth, 3 Deep
High Frequency Roll-off - 80Hz to 150 Hz
Wheels 2 x Rear tilt-back
Bar Handles 1 x (Left Side ), 1 x (Right Side)
Pole Mount Adapter (1 3/8"-3.5cm) 1 (Top) (1 3/8-inch-3.5cm)
Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
Covering / Finish Black Ultrathane Paint
Dimensions (DWH xbackW, inches) 30.5 x 25.5 x 36 (D/W/H)
Dimensions (DWH xbackW, cm) 77.5 x 64.1 x 91 (D/W/H)
Weight (lbs/kg) 202 / 92

Yorkville ES21P (Yorkville ES-21P)
