High-Output Compact Powered Line Array Speaker
The

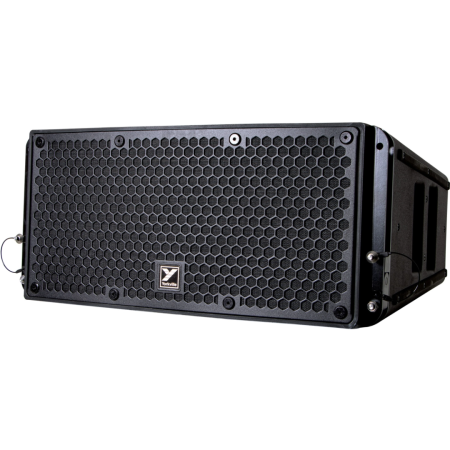

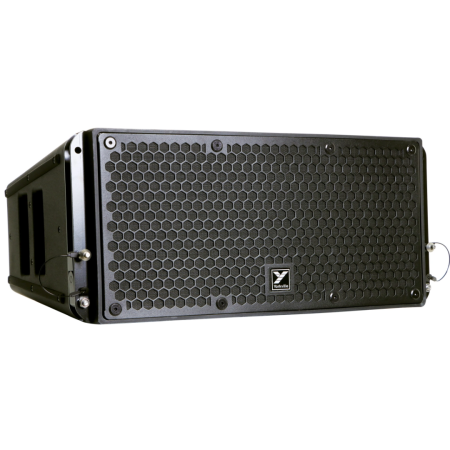

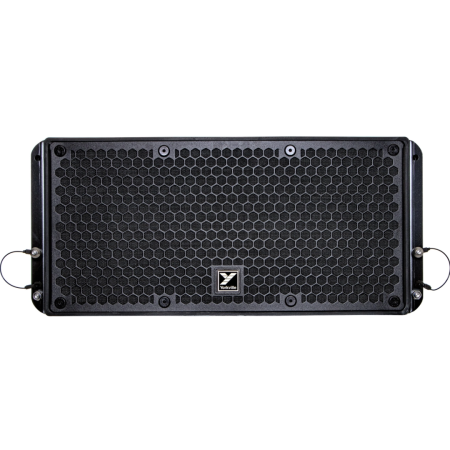

Yorkville PSA26 is a premium powered loudspeaker in the Paraline Compact Line Array series, delivering exceptional sound quality, high output, and rugged reliability. With 850 watts of peak power, neodymium drivers, and patented Paraline Lens and Synergy Horn technologies, it’s built for both touring and fixed installations. Its IP54 weather rating makes it ideal for outdoor events, while the compact design allows easy transport, ground stacking, or flying configurations.
Yorkville PSA26 Competitive Differences
- Patented Paraline Lens & Synergy Horn: Precise wavefront control for consistent coverage and reduced comb filtering
- 850W Peak / 600W Program Power: High-output neodymium LF and HF drivers for maximum performance
- IP54 Rated: Weather-resistant for dependable outdoor operation

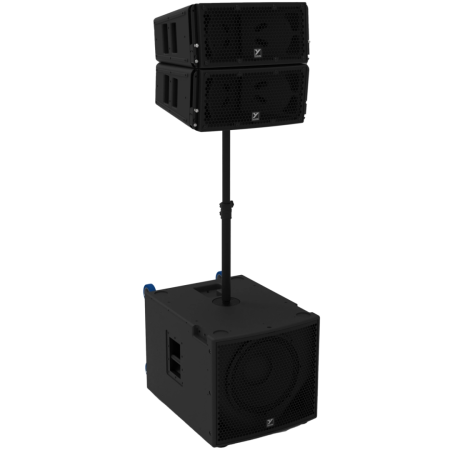

- Flexible Deployment: Flyable, pole-mountable (dual angle), or ground stackable
- Intuitive DSP Controls: High-pass filter (with sub mode), HF boost, nearfield mode, and array size compensation
- Rugged Build: Polypropylene enclosure, powder-coated steel grille, and flush-mounted rigging hardware
- Made in Canada: Built for professional use with premium components
Yorkville PSA26 Description
The
PSA26 is a next-generation powered line array loudspeaker designed for maximum performance in a compact form factor. Leveraging
Tom Danley’s patented Paraline Lens and
Synergy Horn technologies, the PSA26 delivers a seamless, continuous horn throat across multiple cabinets, virtually eliminating comb filtering and maximizing efficiency.

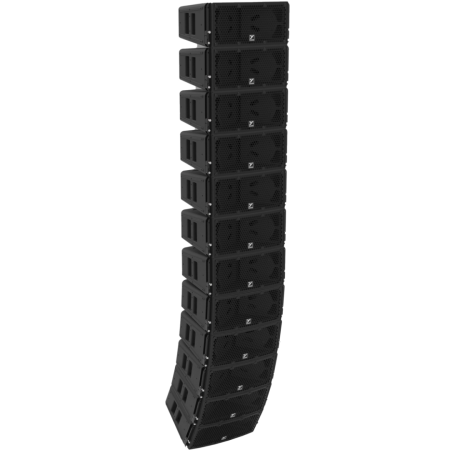

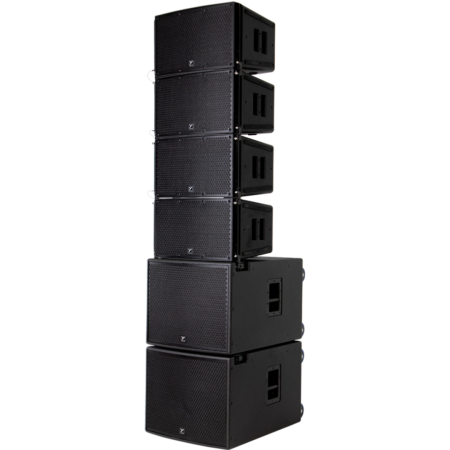

This speaker’s DSP tools allow quick optimization for any setup, including a switchable high-pass filter for subwoofer integration, a high-frequency boost for extra clarity, nearfield mode to tame HF levels for close-up listeners, and bass buildup compensation for large vertical arrays. Whether used as a standalone speaker or as part of a multi-cabinet array, the PSA26 offers exceptional coverage with a horizontal dispersion of 120° and vertical coverage of 10°.
Its rugged polypropylene enclosure and powder-coated perforated steel grille ensure durability, while
IP54 weatherproofing means it can handle outdoor shows with ease. With dual-angle pole mounting, integrated rigging, and PowerCON® locking connectors, the PSA26 is engineered for fast, reliable setups.
PSA26 Features
- 850 W peak (600 W program) power output
- 2 × 6” neodymium LF drivers and 1 × 1” exit neodymium HF driver
- Patented Paraline Lens and Synergy Horn technologies
- DSP controls: Gain, HPF (sub mode), HF boost, nearfield mode, array size compensation
- IP54 rated for outdoor use

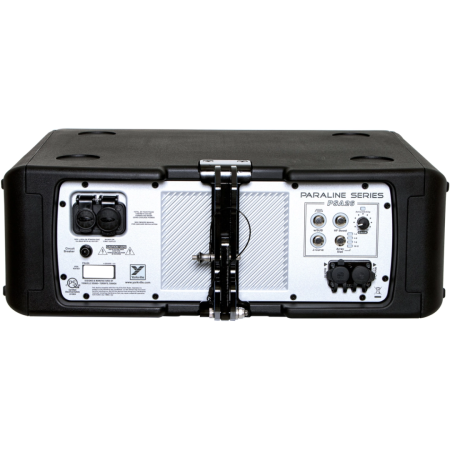

- XLR input and output
- Locking PowerCON® AC connectors

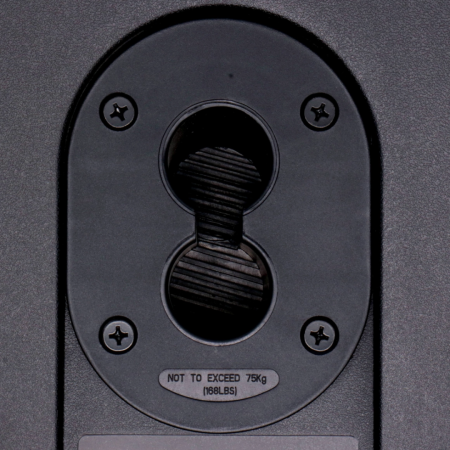

- Dual-angle 35 mm (1 3/8") pole mount

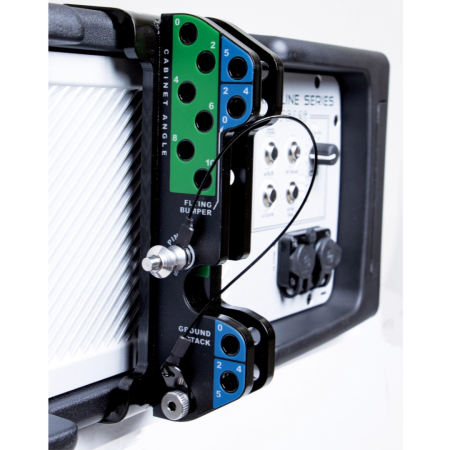

- Integrated skeletal rigging system
- Made in Canada
PSA26 Specifications
- System Type: Powered loudspeaker
- Power Rating: 850 W peak / 600 W program
- Max SPL: 134 dB
- Frequency Response: 75 Hz – 20 kHz
- Dispersion (H × V): 120° × 10°
- Drivers: LF: 2 × 6” neodymium | HF: 1 × 1” exit neodymium
- Inputs/Outputs: 1 × XLR input, 1 × XLR output
- Power Connections: PowerCON® locking connectors
- Enclosure: Polypropylene with powder-coated perforated steel grille
- Dimensions (D × W × H): 18.3" × 22.4" × 10.1" (46.5 × 56.9 × 25.7 cm)
- Weight: 40 lbs (18.1 kg)
Yorkville PSA26
(Yorkville PSA-26)
