High-Power Compact Powered Line Array Speaker
The
Yorkville PSA28 delivers massive output and pristine sound in a portable, weather-resistant design. With
1400 watts peak power, dual 8” neodymium LF drivers, and dual 1” exit neodymium HF drivers, this loudspeaker is built for professional touring and installation use. Featuring
Tom Danley’s patented Paraline Lens and
Synergy Horn technologies, it ensures consistent coverage, exceptional clarity, and maximum efficiency. IP54 weatherproofing allows for dependable outdoor performance, while flexible rigging and mounting options make it easy to adapt for any event.
Yorkville PSA28 Competitive Differences
- 1400W Peak / 1200W Program Power: High-output neodymium LF and HF drivers for exceptional volume and clarity
- Patented Paraline Lens & Synergy Horn: Seamless wavefront control with reduced comb filtering
- IP54 Rated: Weather-resistant construction for outdoor gigs and installations
- Versatile Deployment: Flyable, pole-mountable (dual-angle), or ground stackable
- Pro DSP Controls: High-pass filter (sub mode), HF boost, nearfield mode, and bass buildup compensation

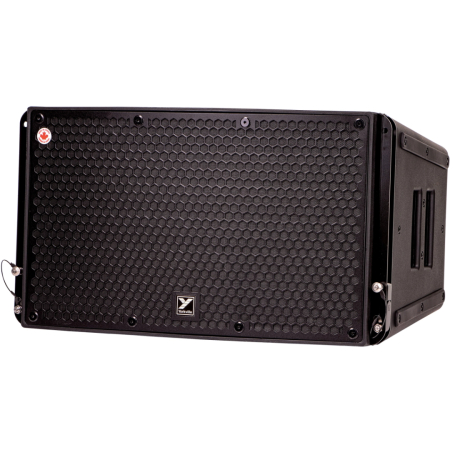

- Rugged Enclosure: Polypropylene cabinet with powder-coated perforated steel grille
- Made in Canada: Premium build quality and reliability for professional use
Yorkville PSA28 Description
The

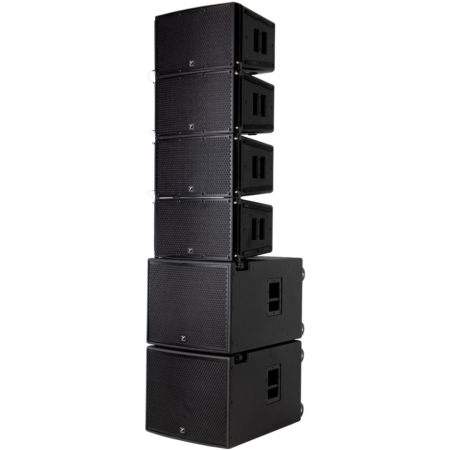

PSA28 is part of Yorkville’s Paraline Compact Line Array series, designed for high-power, full-range sound in a manageable form factor. The integration of

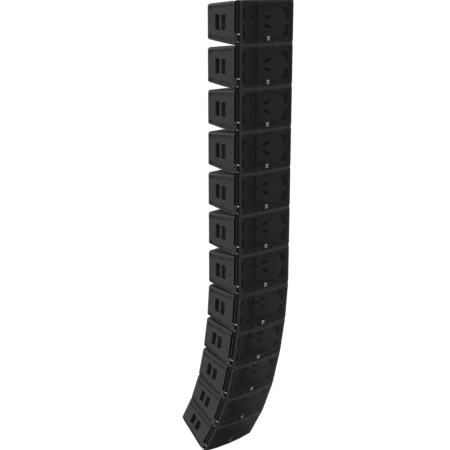

Tom Danley’s patented Paraline Lens creates a precise wavefront that matches the horn’s coverage pattern, allowing multiple cabinets to be seamlessly coupled in vertical arrays without comb filtering.
The
Synergy Horn design ensures the output of the HF compression drivers and LF cones is perfectly blended for smooth, natural sound. DSP controls make tuning quick and easy—whether you need to integrate a subwoofer, boost clarity, adjust for nearfield listeners, or balance bass buildup in multi-cabinet setups.

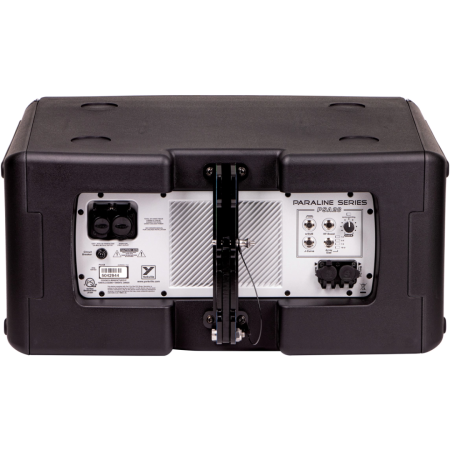

Built for real-world use, the PSA28 features a rugged polypropylene enclosure, powder-coated steel grille, integrated rigging hardware, and locking PowerCON® connectors. Its IP54 weather rating means it’s equally at home on outdoor festival stages or in fixed indoor installations.
PSA28 Features
- 1400 W peak (1200 W program) power output
- 2 × 8” neodymium LF drivers
- 2 × 1” exit neodymium HF drivers
- Patented Paraline Lens and Synergy Horn technologies

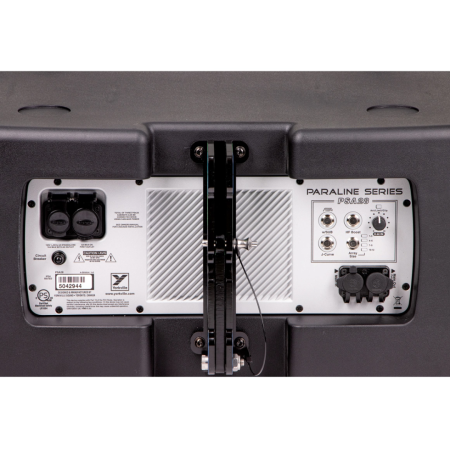

- DSP controls: Gain, HPF (sub mode), HF boost, nearfield mode, array size compensation
- IP54 rated for outdoor use
- XLR input and output
- Locking PowerCON® AC connectors

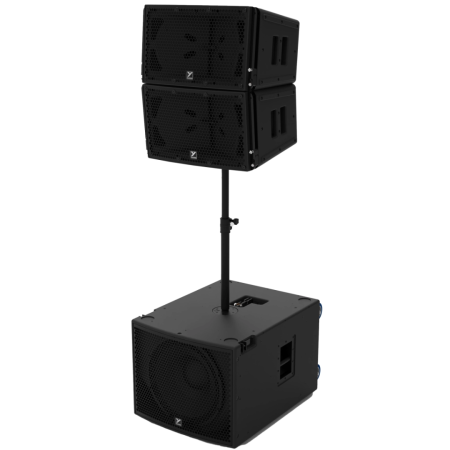

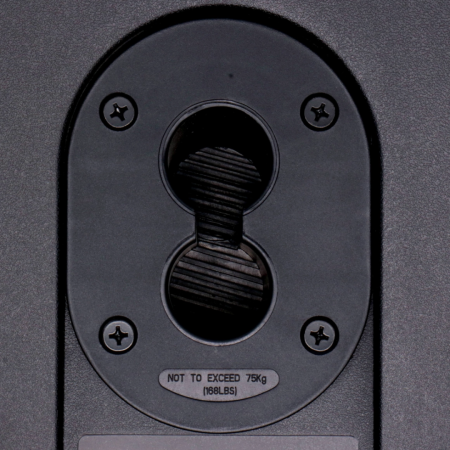

- Dual-angle 35 mm (1 3/8") pole mount

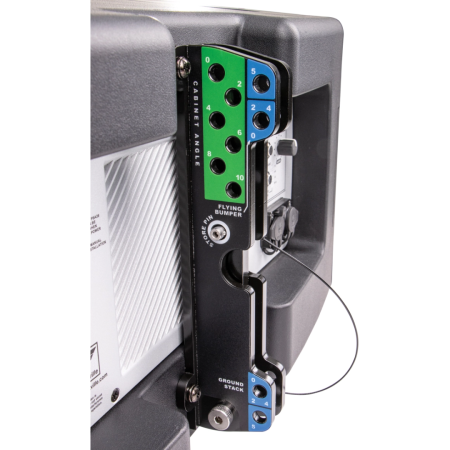

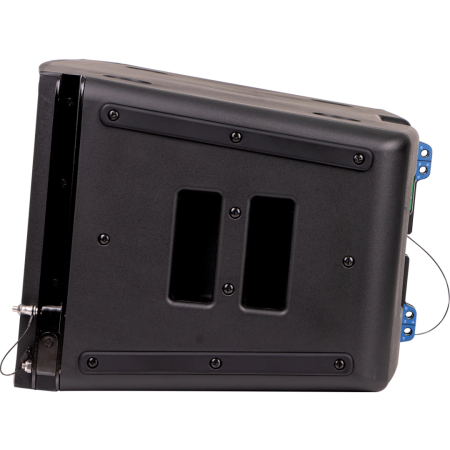

- Integrated skeletal rigging system
- Made in Canada
PSA28 Specifications
- System Type: Powered loudspeaker
- Power Rating: 1400 W peak / 1200 W program
- Max SPL: 140 dB
- Frequency Response: 65 Hz – 20 kHz
- Dispersion (H × V): 120° × 10°
- Drivers: LF: 2 × 8” neodymium | HF: 2 × 1” exit neodymium
- Inputs/Outputs: 1 × XLR input, 1 × XLR output
- Power Connections: PowerCON® locking connectors

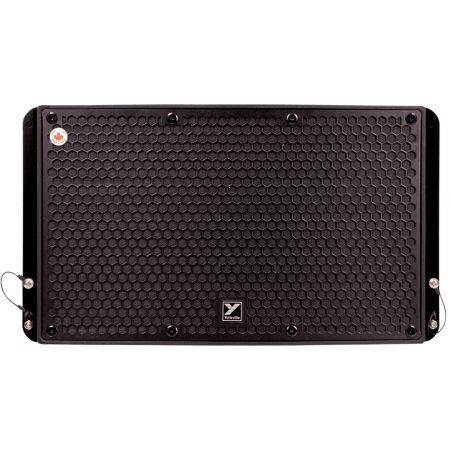

- Enclosure: Polypropylene with powder-coated perforated steel grille
- Dimensions (D × W × H): 18.5" × 24.6" × 14" (47 × 62.5 × 35.6 cm)
- Weight: 60 lbs (27.2 kg)
Yorkville PSA28
(Yorkville PSA-28)
