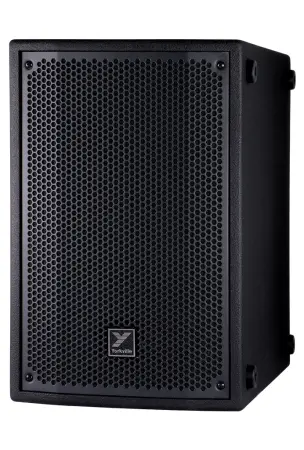

Yorkville YXL10SP | 10in- 126dB
$559.00
Introducing Yorkville Sound’s most affordable 10-inch Subwoofer.
The YXL10SP weighs in at just over 30 lbs, and opens up an option to
deliver hefty bass with a small footprint. Providing 1000 watts with
efficient speaker components, the YXL10SP provides an affordable
solution to add bass to your live sound without overwhelming the
mix in smaller venues.
Features
1000 Watts (Peak) 500 Watts (Program)
10-inch woofer with 2.4-inch voice coil
DSP processing with component protection
Master Level control with Activity indicator
3 Performance modes, Punch, Smooth and Deep

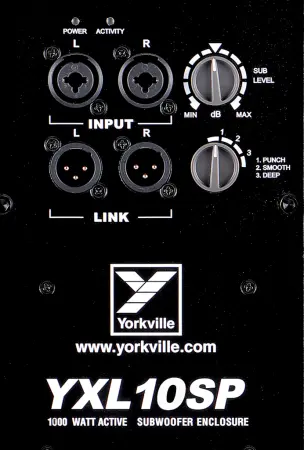

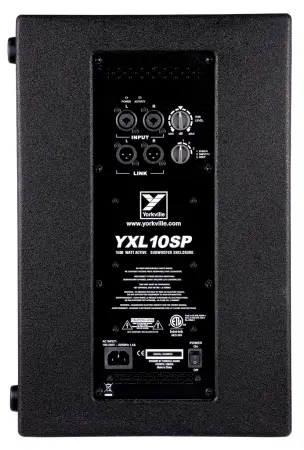

Recessed control panel
Specifications
System Type Subwoofer
Powered or Passive Powered
Power Rating (watts) 1000 watts peak
500 watts program
Max SPL (dB) 125dB continuous
Frequency Response (Hz +/- 3dB) 50 - 100Hz
Crossover Frequency (Hz) 100Hz
LF Woofer 10” (2.4” Voice Coil)
LF Amplifier Type Class D
Cooling Scheme Speed Controlled Fan
Power Cable Yes (Detachable IEC)
Level Controls Master
EQ Controls Pushbutton select,
Punch, Smooth, Deep
Inputs 2 x Combijack (XLR/1/4”)
Outputs 2 x LINK (XLR Male)
Bar Handles 1 x Top
Pole Mount Adapter (1 3/8-inch/3.5cm) 1 x Side
Enclosure Materials 12mm Plywood
Grille Powdered Coated
Perforated Steel
Covering / Finish Textured Paint
Dimensions (DWH xbackW, inches) 18.25 x 12 x 18.75
Dimensions (DWH xbackW, cm) 47 x 31 x 48
Weight (lbs/kg) 34.5 / 15.6
Box Dimensions (LxWxH, inches) 22.4 x 16.3 x 23
Box Dimensions (LxWxH, cm) 57 x 41.5 x 58
| Brand | Yorkville |
| Name | Yorkville YXL10SP | 10in- 126dB |
| Primary Category | Subwoofer |
| Build Material | 12mm Plywood |
| Dimensions | 18.25 x 12 x 18.75 inches inches |
| Included Accessories | Power Cable (Detachable IEC) |
| Mounting Options | Pole Mount Adapter (1 3/8-inch/3.5cm) side |
| Weight | 34.5 lbs / 15.6 kg kg |
| Control Interfaces | Master Level control, Pushbutton EQ controls (Punch, Smooth, Deep) |
| Frequency Response | 50 - 100Hz Hz |
| Max SPL | 125dB continuous dB |
| Power Rating | 1000 watts peak, 500 watts program watts |
| Woofer Size | 10 inch inch |
Right from your cart
$700+ Orders Qualify for 0% Interest or Up to 24 Months
Pay in 4 or Choose Your Financing Plan
NET/30, then Flexible Simple Interest
Get Longer 0% Options or Up to 60 Months
Prefer better payment terms over VIP discounts? Use our partner website. Standard priced products with up to 24 months at 0% interest, or up to 60 months of equal payments with interest.
View this item on SquareCable.com (opens in a new tab)Store card
Apply for KPODJ's Synchrony Store Card (opens in a new tab) for 6 months of deferred interest on all products and longer terms for certain items.
I was looking for a small footprint, lightweight sub to help put some bottom definition in our small p.a. I've always been a fan of Yorkville and this guy delivers! As soon as I am able, there will be another one in the van.
I am a 63 year old mobile DJ and cannot seem to stop my music love affair. However, nature has a way of taken its course. I own the full QSC K2 line of speakers including the KS212 Subs, but as many of you can guess those things can get heavy. So I ventured out to find mobile pro audio sub to use with my QSC K2.8s and along comes the Yorkville YXL10SP. It was only available from one Dealer at the time. I had no clue the sub had just been released. I did a small gig with the Yorkie connected and this thing rocked the house. Great clarity and the three-function sound setting for bass depth is a plus. The SPL is 3 decibels lower than the QSC K2.8, but trust me your audience will never know. I was disappointed to discover the pole mount socket was not M20 threaded. I got creative and found a M20 plate and attached it with JB Weld, because it is almost impossible to find a mount plate with the exact dimensions for the plate and screw widths. I just ordered another Yorkie to complete my setup. You can easily rock a party with up to 150 people and not miss a beat, and these things weigh in at just under 35 pounds each. Great job Yorkville!
