Passive Loudspeaker Distribution System
The

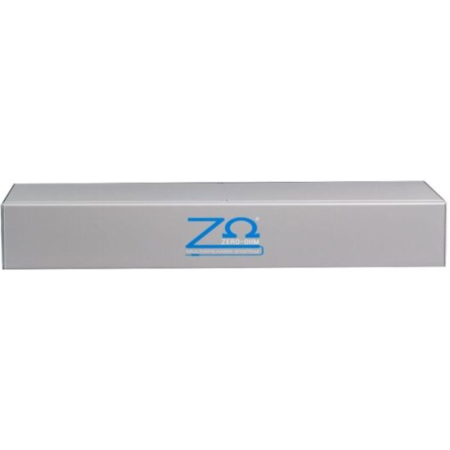

Zero Ohm ZOHM-2K-4 is a 4-channel passive interface designed to connect any amplifier to multiple loudspeakers — regardless of impedance — without concern for load balancing or cable length. It eliminates the need for traditional transformer-based systems while preserving full-range audio fidelity and safe, reliable distribution at ultra-low impedances.
Zero Ohm ZOHM-2K-4 Competitive Differences
- Four 2000W channels with ultra-low impedance tolerance
- Operates without transformers — supports sub-1Ω speaker loads
Zero Ohm ZOHM-2K-4 Description
Also known as the “2K-4 Renegade,” the
ZOHM-2K-4 provides powerful, flexible, and scalable speaker distribution without the typical load limitations found in traditional audio systems. It enables parallel wiring of multiple loudspeakers across four independent channels, all while maintaining phase consistency and delivering clean, full-range audio from 20Hz to 20kHz.

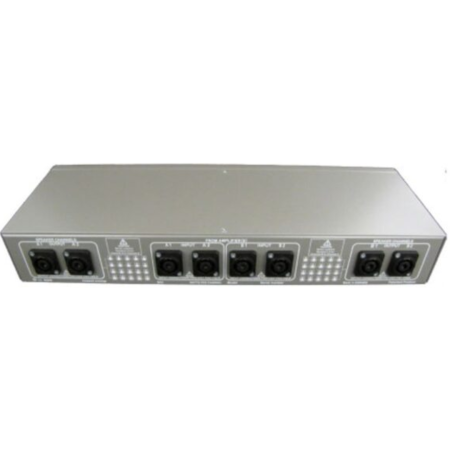

Whether you're designing a complex multi-zone audio installation or need long-distance coverage without transformers, the ZOHM-2K-4 is purpose-built to handle it — compatible with speaker loads as low as 0.1 ohm and supporting 2, 4, 8, or 16 ohm systems. Built in a rugged 2RU chassis with Neutrik NL4 connectors, it integrates seamlessly into pro audio racks for touring, installation, or fixed venue use.
The
Zero Ohm ZOHM-2K-4 is an ideal solution for integrators working in stadiums, arenas, houses of worship, and other environments requiring distributed sound with minimal infrastructure and maximum audio integrity.
Model Features
- 4-channel passive system with 2000W per channel handling
- Zero Ohm functionality — safely supports sub-1Ω parallel loads
- No need for 70V/100V transformers or impedance matching
- Compatible with 2Ω, 4Ω, 8Ω, and 16Ω speaker systems
- Full-range frequency response: 20Hz – 20kHz
- Maintains output phase alignment across all amplifiers
Model Specifications
- Max Power Handling: 2000W per channel
- Frequency Response: 20Hz – 20kHz
- Min. Output Impedance: 0.1 Ohms
- Input Connectors: Neutrik NL4
- Input Pin-Outs:
- Ch 1 Input 1A: Pin 1+ / 1−
- Ch 2 Input 2A: Pin 2+ / 2−
- Ch 3 Input 1B: Pin 2+ / 2−
- Ch 4 Input 2B: Pin 1+ / 1−
- Output Pin-Outs:
- Ch 1 Output 1A: Pin 1+ / 1−
- Ch 2 Output 2A: Pin 2+ / 2−
- Ch 3 Output 1B: Pin 2+ / 2−
- Ch 4 Output 2B: Pin 1+ / 1−
- Dimensions (H x W x D): 65.1 x 479.4 x 149.2 mm (with rack ears)
- Weight: 5 kg
- Shipping Weight: 5.5 kg
- Country of Origin: Canada
What's In The Box
- Main unit
- Rack ears (pre-installed)
- Quick start guide
Zero Ohm ZOHM-2K-4
(Zero Ohm ZOHM2K4)
