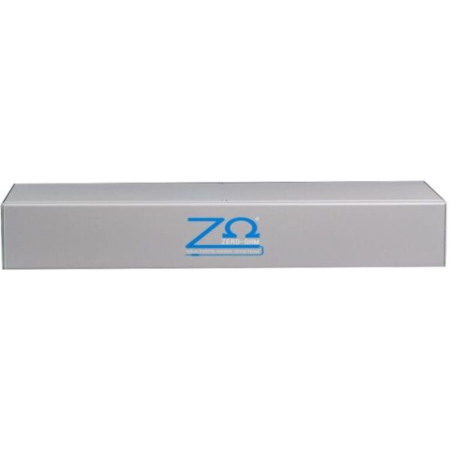

Passive Loudspeaker Distribution System
The
Zero Ohm ZOHM-4K-4 is a four-channel, high-power passive interface that allows amplifiers to safely drive multiple loudspeakers in parallel — even at impedance levels below 1 ohm. It replaces traditional 70V/100V transformer systems, offering full-range audio fidelity and reliable phase alignment across long cable runs.
Zero Ohm ZOHM-4K-4 Competitive Differences
- 4-channel, 4000W per channel passive speaker interface
- Runs parallel speaker loads at sub-1Ω without transformers
Zero Ohm ZOHM-4K-4 Description
The
ZOHM-4K-4, also called the "4K-4 Disruptor," delivers unmatched flexibility for complex loudspeaker arrays. This rackmount system connects between any amplifier and speaker network, enabling multiple speakers to be connected in parallel at extremely low impedances — safely and without compromising sound quality.
With support for speaker loads as low as 0.1 ohms, and compatibility with 2, 4, 8, and 16 ohm systems, the ZOHM-4K-4 provides integrators with a powerful alternative to conventional distributed audio solutions. It offers uniform power distribution across long cable runs and retains full-range performance from 20Hz to 20kHz — ideal for large venues, stadiums, and multi-zone environments.

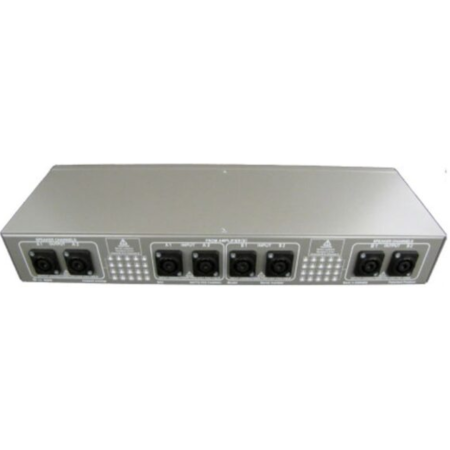

Using standard Neutrik NL4 connectors and a clearly labeled I/O layout, the
Zero Ohm ZOHM-4K-4 ensures clean signal routing with precise channel control. Built in Canada, it’s a rugged, passive solution for high-demand professional installs.
Model Features
- Passive 4-channel distribution system with zero-ohm functionality
- No transformers required — eliminates need for 70V/100V systems
- Connect multiple loudspeakers in parallel with sub-1Ω impedance
- Compatible with 2Ω, 4Ω, 8Ω, and 16Ω speaker loads
- Maintains phase alignment and full-range frequency response (20Hz–20kHz)
Model Specifications
- Max Power Handling: 4000W per channel
- Frequency Response: 20Hz – 20kHz
- Min. Output Impedance: 0.1 Ohms
- Input Connectors: Neutrik NL4
- Input Pin-Outs:
- Ch 1 Input 1A: Pin 1+ / 1−
- Ch 2 Input 2A: Pin 2+ / 2−
- Ch 3 Input 1B: Pin 2+ / 2−
- Ch 4 Input 2B: Pin 1+ / 1−
- Output Pin-Outs:
- Ch 1 Output 1A: Pin 1+ / 1−
- Ch 2 Output 2A: Pin 2+ / 2−
- Ch 3 Output 1B: Pin 2+ / 2−
- Ch 4 Output 2B: Pin 1+ / 1−
- Dimensions (H x W x D): 65.1 x 479.4 x 149.2 mm (with rack ears)
- Weight: 5 kg
- Shipping Weight: 5.5 kg
- Country of Origin: Canada
What's In The Box
- Main unit
- Rack ears (pre-installed)
- Quick start guide
Zero Ohm ZOHM-4K-4
(Zero Ohm ZOHM4K4)
