This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued

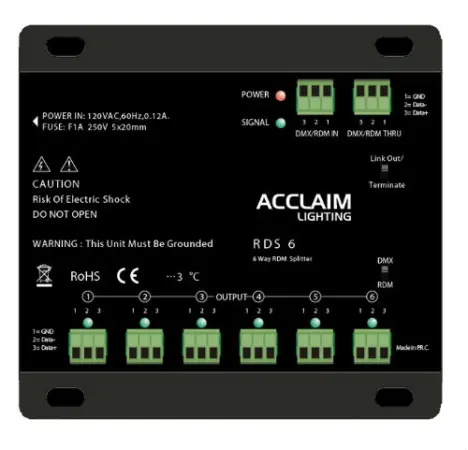

The RDS 6 is an RDM/DMX splitter and optimizer. It features one RDM/DMX input and six outputs, allowing for flexible configuration of your RDM/DMX signal. Each port is electrically isolated to ensure you get the maximum total run of 3,900 foot for each signal line.
Specifications:
Operating Voltage: 100-240VAC, 50/60Hz
RDM/DMX Inputs: 1
RDM/DMX Outputs: 6
RDM/DMX Thru Link: 1
Power Consumption: 0.12A, 14.4W @ 120VAC
Finish: Black
Housing Material: Sheet Metal
IP Rating: IP20, Dry Location
Operating Temperature: 14ºF to 112ºF (-10C to 50ºC)
Connectors: 3 pin terminal blocks for RDM/DMX, Bare wire 3 conductor for AC input
Warranty: 3 Year
Weight: 1.25 lbs (0.57 kg)
Dimensions (L x W x H): 5.27" x 4.92" x 1.57" (134 x 125 x 40 mm)
Certifications: cETLus, CE, RoHS
