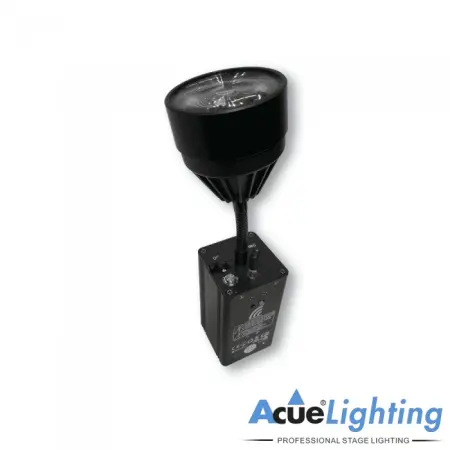

Acue Lighting Focus 1 LED Pinspot System

Portable LED Pinspot with Wireless DMX

The Acue Lighting Focus 1 LED Pinspot System is a 4-light kit with a soft carrying bag, designed to streamline pin-spotting with a compact, battery-powered design that operates wirelessly—no messy cables and rapid setup.

Acue Lighting Focus 1 LED Pinspot System Competitive Differences

• Includes 4 LED pinspot lights with soft carrying case
• Runs up to 6 hours on a single battery charge
• Eliminates wired setup entirely for faster deployment
• Features wireless DMX control compatible with Focus 8 and other Acue wireless DMX fixtures
• Includes IR remote for manual control of all functions
• Manual zoom from 2.5° to 35°, matching Focus 8 for seamless mixed operation

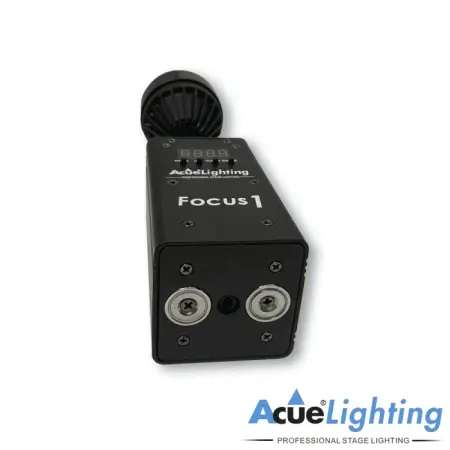

• Versatile mounting options: magnetic base and 8 mm clamp mount

Acue Lighting Focus 1 LED Pinspot System Description

The Acue Lighting Focus 1 LED Pinspot System is a battery-powered single-pinspot solution offered as a convenient 4-light package with carrying case. Engineered to simplify event lighting, it draws on customer feedback from the Focus 8 LED pinspot bar to create a sleeker, cable-free option that dramatically cuts setup time. With wireless DMX control, the Focus 1 integrates smoothly with existing Acue setups, while the IR remote adds flexibility for on-the-fly adjustments.

Each fixture houses a powerful 10 W warm white LED with manual zoom control ranging from 2.5° to 35°, enabling tight pinspot beams or broader wash lighting. Battery life lasts up to 6 hours on a full charge, powered via a charger operating on AC120–220 V, 50/60 Hz. The unit delivers linear dimming (0–100 %) and strobe/shutter effects up to 20 Hz through a 2-channel DMX setup. Versatile mounting is made easy via a magnetic base or 8 mm clamp, making the kit perfect for weddings, events, and stage setups.

Focus 1 LED Pinspot System Features

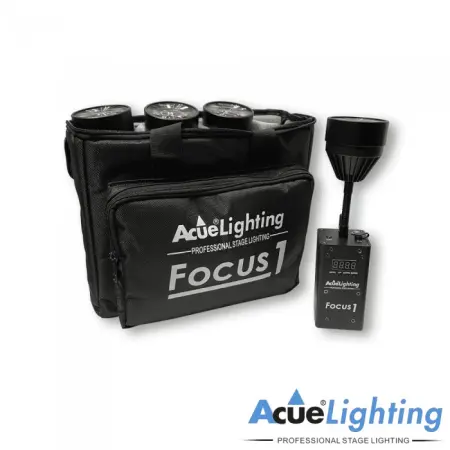

• 4-light kit with soft carrying case
• Battery-powered operation (up to 6 hours runtime)
• Wireless DMX control—fully compatible with Focus 8 and other Acue wireless DMX fixtures
• IR remote for manual control
• Manual zoom: 2.5° to 35°
• Versatile mounting: magnetic base and 8 mm clamp mount

Focus 1 LED Pinspot System Specifications

• Charger voltage: AC 120–220 V, 50/60 Hz
• Power consumption: 10 W
• Light source: 10 W warm white LED
• Beam angle: 2.5°–35° (manual zoom)
• Battery life: up to 6 hours per full charge
• Control modes: wireless DMX, RF remote (IR), via display
• DMX: 2 channels (dimmer & shutter)
• Dimmer: 0–100 % linear
• Strobe/shutter: 0–20 Hz
• Weight (kit of 4): 12 lbs (≈ 5.4 kg)
• Dimensions (kit of 4): 15 × 13 × 9 in (≈ 38 × 33 × 23 cm)

What’s In The Box

• 4 × Focus 1 LED pinspot units
• Soft carrying case

Acue Focus 1 LED Package (Acue Lighting Focus 1)
