Full-Color LED Ellipsoidal Spotlight
The

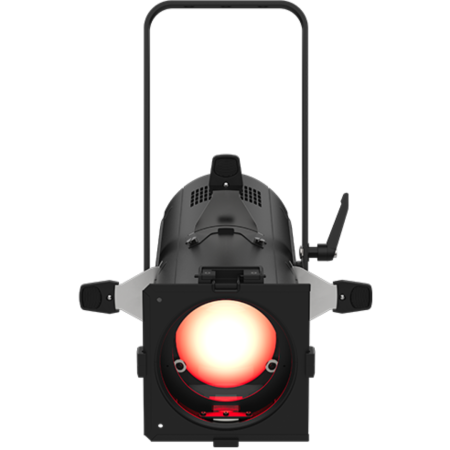

Chauvet DJ EVE E-160ZQ is a powerful, zoomable ellipsoidal LED fixture designed for stage lighting, installations, and mobile production. Equipped with a 160W quad-color (RGB+WW) LED, it delivers rich, customizable color and accurate white tones with variable color temperature presets. Built for flexibility, it features quiet, flicker-free performance and wireless DMX compatibility via D-Fi USB.
Chauvet DJ EVE E-160ZQ Competitive Differences
- 160W RGB+WW LED with adjustable zoom from 24° to 37°
- Pre-set color temperatures and flicker-free dimming for broadcast-ready output
Chauvet DJ EVE E-160ZQ Description
The
Chauvet DJ EVE E-160ZQ elevates lighting for theaters, houses of worship, live events, and broadcast environments with precise optics and vibrant color mixing. Its quad-color LED source combines RGB with warm white, allowing for rich saturated hues or natural white tones between 2800K and 8000K—without the need for gels or filters.
This fixture features a smooth zoom range (24°–37°), ensuring that your subject stays clearly lit across various throw distances. Pre-set color temperature macros make it easy to match other fixtures or ambient lighting without manual programming. With D-Fi USB support, the EVE E-160ZQ can be controlled wirelessly via DMX, reducing cable clutter for mobile or fixed setups.
Flicker-free operation makes this ellipsoidal spotlight ideal for use on camera, while its silent performance and power linking capability make it production-friendly. It also supports metal and glass gobos (M-size) for image projection and comes with a gobo holder and gel frame.
Model Features
- 160W RGB+WW quad-color LED engine
- Zoomable beam angle from 24° to 37°
- Pre-set color temperatures from 2800K to 8000K
- D-Fi USB compatible for wireless DMX control
- Flicker-free output for video and livestreaming
- Supports glass and metal gobos (M size)
- PowerCON-compatible input/output for linking
Model Specifications
- DMX Channels: 3, 4, or 11
- DMX Connectors: 3-pin and 5-pin XLR
- Light Source: 160W RGB+WW LED
- Zoom Angle: 24° to 37°
- Illuminance (24°): 7072 lux @ 2m | 1132 lux @ 5m
- Illuminance (37°): 2964 lux @ 2m | 474 lux @ 5m
- Strobe Rate: 1 to 30 Hz
- Color Temperature Range: 2800K – 8000K
- Lumens: 5,231
- Power Linking: 9 units @ 120V; 16 units @ 230V
- Power Consumption: 150W, 1.3A @ 120V | 0.7A @ 230V
- Gobo Size: M (66 mm outer, 48 mm image, 2 mm max thickness)
- Accessory Holder Size: 6.25 in (159 mm)
- Dimensions: 18.4 x 9.8 x 16.9 in (467 x 248 x 429 mm)
- Weight: 12.2 lb (5.5 kg)
- Certifications: CE, RoHS, MET
What's In The Box
- EVE E-160ZQ fixture
- Power cord
- Gel frame
- Metal gobo holder
- Glass gobo holder
- Quick reference guide
Chauvet Eve E160 ZQ
(Chauvet DJ EVE-F160-ZQ)
