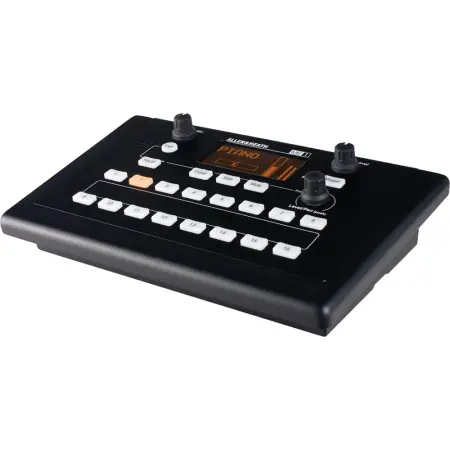

Allen & Heath AH-ME-1

Personal Monitor Mixer for Live Performance, Studio & Worship

The Allen & Heath AH-ME-1 is a powerful, standalone personal monitor mixer that gives musicians and performers total control over their in-ear or headphone mixes. Capable of receiving up to 40 audio sources over a single CAT5 cable, it’s ideal for use in live sound environments, studios, houses of worship, and rehearsal spaces. With advanced customization features, daisy-chaining, and seamless integration with Allen & Heath systems and third-party platforms via the ME-U hub, the ME-1 brings unmatched flexibility and ease of use to any monitoring setup.

Allen & Heath AH-ME-1 Competitive Differences

• Receives up to 40 audio channels from GLD or iLive mixers via CAT5
• Compatible with ME-U Hub for use with Dante, MADI, and EtherSound
• 16 assignable backlit keys for fast access to channels or groups
• OLED screen with dimmable display for level and pan visualization
• Built-in ambient microphone keeps performers connected to the stage
• Aviom Pro16 compatibility mode for cross-platform use
• Dual headphone outputs (3.5mm and 1/4") with discrete amplifier design
• Power via PoE (from ME-U or switch) or included AC power supply
• USB port for preset transfer, firmware updates, or device charging
• Mic stand mountable with included bracket and threaded insert

Allen & Heath AH-ME-1 Description

The AH-ME-1 mixer provides a simple and customizable interface for creating high-quality personal monitor mixes. It connects directly to Allen & Heath GLD or iLive systems using a single CAT5 cable and works with the optional ME-U Hub to interface with Dante, MADI, or EtherSound environments. Each unit can be set up quickly using 16 assignable keys, which can be configured to control mono or stereo sources, or groups of channels.

The mixer features a bright OLED screen, a built-in ambient mic for stage awareness, and a rotary control knob for adjusting level, pan, EQ, and limiter settings. With support for up to 16 user presets and automatic source naming via dSNAKE, the ME-1 simplifies setup and operation for both performers and engineers. Its compact, durable design supports daisy chaining or parallel connection using etherCON ports and standard Ethernet switches, making it easy to scale across multiple performers on stage.

AH-ME-1 Features

• Receives up to 40 sources via single CAT5 cable from GLD or iLive mixers
• Works with ME-U Hub for third-party integration via Dante, MADI, EtherSound
• 16 backlit assignable keys for channel/group control (mono or stereo)
• 16 user presets with recall of levels, pan, mute, and assignments
• OLED screen with dimmable stereo signal meter and setup menus
• Built-in ambient mic with independent volume control
• Rotary control knob for easy navigation of levels, pan, EQ, and limiter
• 3.5mm and 1/4" headphone outputs with 300 mW + 300 mW into 100 Ω
• Stereo 3.5 mm aux input for MP3 players, click tracks, or other local sources
• USB port for transferring presets, updating firmware, or charging devices
• Supports daisy-chaining or star topology via etherCON connectors
• Mountable on mic stand with built-in 3/8" insert or supplied side bracket

AH-ME-1 Specifications

• Inputs: 40 via CAT5, 1 x stereo aux (3.5mm), built-in ambient mic
• Outputs: 2 x stereo headphone (3.5mm & 1/4"), 1 x mono TRS line out
• Group Support: Up to 16 groups from 40 assignable sources
• Control Functions: Input level, pan, mute, solo, trim; master EQ & limiter
• Conversion: 24-bit Delta/Sigma, 48 kHz sample rate
• Frequency Response: +0/-1 dB, 10 Hz to 20 kHz
• Residual Output Noise: -95 dBu (20 Hz to 20 kHz)
• Aux Input: Stereo 3.5 mm, -8 dBu nominal, +10 dBu max, >10 kΩ impedance
• Mono Output: Balanced TRS, 0 dBu nominal, +18 dBu max
• Power Options: 100–240 VAC (via included PSU), or PoE (10 W draw)
• Product Dimensions: 8.9 x 5.9 x 2.2 in (225 x 150 x 55 mm)
• Product Weight: 2.0 lb (900 g)
• Shipping Dimensions: 13.8 x 11.75 x 6.55 in
• Shipping Weight: 4.8 lb
• UPC: 6938122239890

Allen and Heath ME1 (Allen & Heath ME 1)
