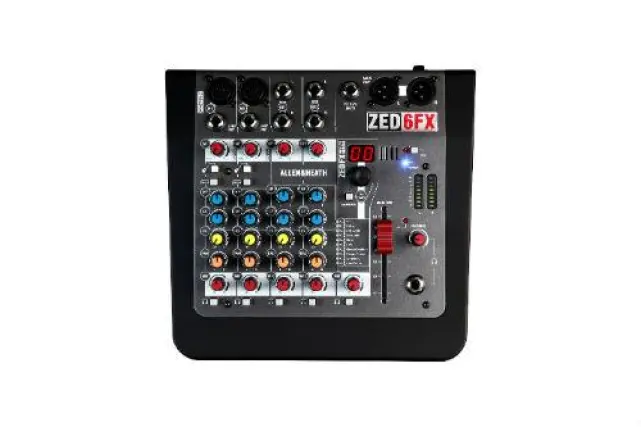

Allen and Heath ZED 6FX

COMPACT 6 INPUT ANALOGUE ALLEN AND HEATH MIXER WITH FX
ZED-6FX delivers Allen & Heath’s renowned build and audio excellence in a compact, portable format, making it the ideal choice for quality conscious musicians, singer / songwriters and venues. Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZED-6FX is a versatile companion for every step of the creative journey. Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analogue warmth and depth. ZED-6FX is the first mixer to include a specially created suite of studio quality reverbs, delays and special multi-model FX, crafted by Allen & Heath’s acclaimed in-house effects aficionados. Guitarists will be pleased to know that ZED-6FX comes with a pair of Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.

EXCEPTIONAL AUDIO QUALITY
ZED-6FX features an exceptional new preamp design, created by analogue guru, Mike Griffin and developed from his highly acclaimed GS-R24 studio recording console. Known as GSPre, the preamps deliver exceptionally low noise and massive headroom, and the warmth and depth that Allen & Heath’s analogue range is famous for. For tonal shaping, the precise MusiQ EQ controls have been carefully calibrated for responsiveness and precision, making it easy to shape and enhance each musical source.

ZEDFX MULTI MODEL
ZED-6FX boasts a brand new suite of studio quality reverbs and delays, painstakingly crafted to enhance your recordings and performances. Special multi-model effects provide uniquely dynamic combinations of reverbs and delays.

ROAD TOUGH
All ZED mixers are designed and built to Allen & Heath’s legendary touring grade standards to ensure a long life in the toughest environments. All channels are on individual, vertical circuit boards and all rotary controls are secured to the front panel with a steel nut to guard against impact damage.

MADE FOR GUITARS
ZED-6FX comes with two Guitar DI high impedance jack inputs, allowing guitars to be plugged straight into the mixer without the need for DI boxes. That’s one less piece of gear to buy, carry and set up.

IT’S AN ALLEN & HEATH
Allen & Heath has been a trusted name in professional audio since 1969. The ZED technology advances, but the commitment to audio excellence and build quality endures.

Features:

2 Mic / Line Inputs with separate XLR and TRS jack sockets
2 Stereo Inputs with TRS jack sockets
2 Guitar DI high impedance inputs, eliminating the need for DI boxes
Internal FX engine with tap tempo
Lo-cut filter for cleaning up unwanted low frequency noise
2 band EQ for easy creative and corrective tonal shaping
60mm smooth travel fader on main mix
XLR main outputs
Flexible signal monitoring
8 LED signal metering
48V Phantom Power for condenser mics
Robust internal power supply

Specifications:

Channels: 8

Inputs:
Mic Preamps: 2 x XLR
Line: 2 x TRS (CH 1-2); 4 x TRS (CH 3-4 ST)
Outputs (Main): 2 x XLR (Main)
Headphones: 1 x 1/4"
Send/Return I/O: 1 x 1/4" (FX)
Phantom Power: 2

EQ Bands: 2-band (CH 1-2); 2-band (CH 3-4 ST)

Aux / FX Sends: 1 x Post (Per Channel)

Effects: Yes

Busses/Groups: Stereo Bus

Rack-mountable: No

Dimensions (HxWxD): 3.5" x 9.8" x 9.3"

Weight: 3.0 lbs.

Allen & Heath ZED-6FX (Allen & Heath ZED6FX)
