Behringer P16 HQ

Personal Monitoring Mixer

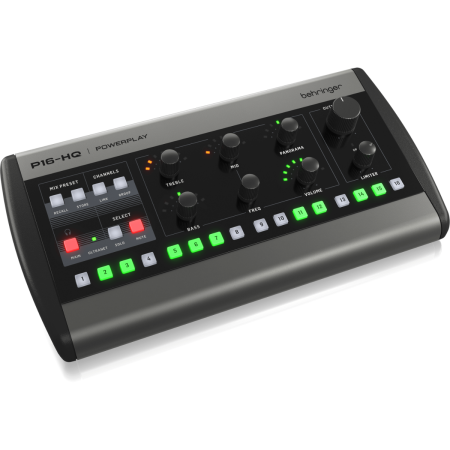

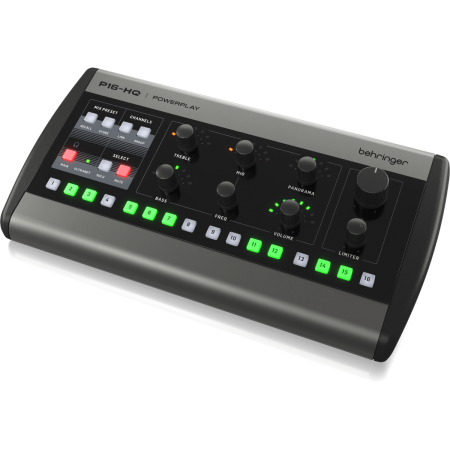

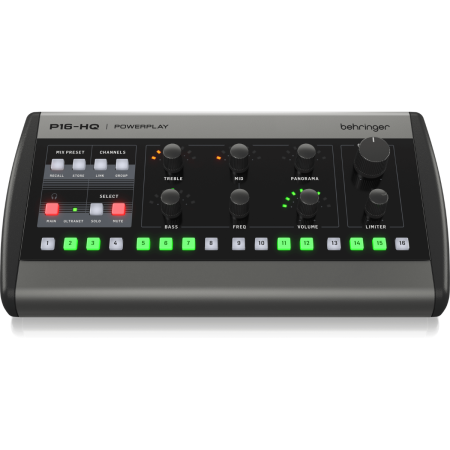

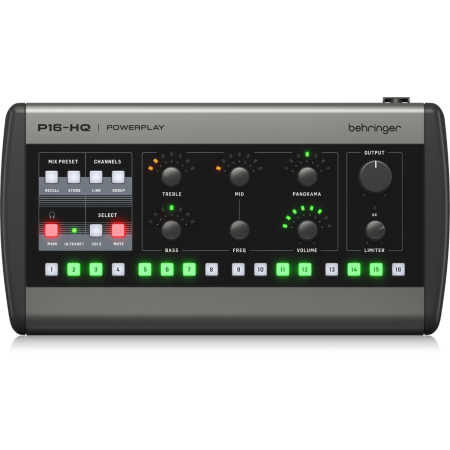

Behringer P16 HQ is a 16-channel personal monitoring mixer designed to give performers complete control over their monitor mix with exceptional audio quality and ultra-low latency. Using a single ULTRANET connection for both power and audio, it delivers a clean, efficient solution for stage and studio monitoring setups.

Behringer P16 HQ Competitive Differences

• High-performance 114 dB D/A converter for ultra-clean, detailed monitoring
• Enhanced headphone amplifier for higher output with low-impedance headphones and in-ear monitors

Behringer P16 HQ Description

The Behringer P16 HQ is built for musicians and performers who need precise, reliable control over their personal monitor mixes. With 16 channels of input via ULTRANET, users can quickly balance levels, adjust panning, and shape tone using the intuitive control surface with backlit channel buttons and LED indicators.

Audio quality is a major upgrade, thanks to a high-resolution 114 dB D/A converter and improved analog output stage. This ensures clean, noise-free monitoring even at high volumes, making it ideal for demanding live performances and in-ear monitoring setups.

Each channel includes a 3-band EQ with adjustable mid frequency, allowing detailed tonal shaping. Additional features like solo, mute, and output limiting provide both flexibility and hearing protection. The system also offers total recall and preset storage, enabling users to instantly access their preferred mixes.

The P16 HQ integrates seamlessly into ULTRANET ecosystems, drawing power and audio from a single CAT5e cable. It can be daisy-chained or connected through distribution hubs for larger setups, and includes MIDI input for real-time external control. Whether mounted on a mic stand or used in a studio environment, it delivers professional monitoring control in a compact format.

P16 HQ Features

• 16-channel personal monitoring mixer with ULTRANET connectivity
• 114 dB D/A converter for high-resolution, low-noise audio
• High-power headphone amplifier optimized for in-ear monitors
• 16 backlit channel select buttons for fast navigation
• Level and pan/balance controls with LED indicators
• 3-band EQ per channel and main with adjustable mid frequency
• Solo and mute functions for channels and master output
• Built-in output limiter for hearing protection
• Stereo headphone output and additional line outputs for monitors
• Single CAT5e ULTRANET connection for audio and power
• Daisy-chain capability or use with ULTRANET distribution hubs
• MIDI input for external real-time control
• Compatible with P16 monitoring systems
• Mountable via optional mic stand bracket

P16 HQ Specifications

• Channels: 16
• Headphone Output: 1 x 1/4" TRS (stereo)
• Line Outputs: 2 x 1/4" TS (unbalanced)

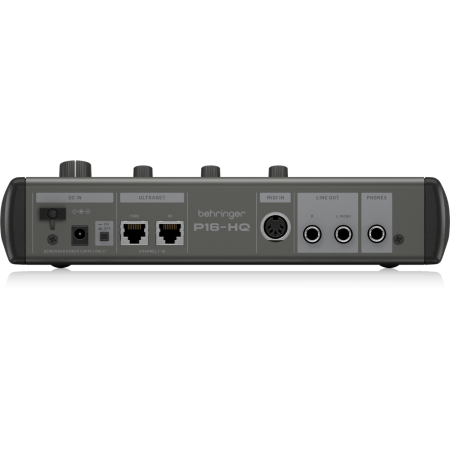

• ULTRANET I/O: 2 x RJ45 (In/Thru)
• MIDI Input: 5-pin DIN
• Frequency Response (Line Out): 20 Hz – 20 kHz (+0 / -0.5 dB)
• THD+N (Line Out): 0.002% typical
• Residual Noise (Line Out): -99 dBu (unweighted), -102 dBu (A-weighted)
• Crosstalk (Line Out): <-75 dB
• Output Impedance: 1 kΩ
• Max Output Level (Line): +12.5 dBu @ 200 kΩ, +2.7 dBu @ 600 Ω
• Frequency Response (Headphones): 20 Hz – 20 kHz (+0 / -0.1 dB)
• THD+N (Headphones): 0.002% typical (up to 0.007% @ 350 mW)
• Residual Noise (Headphones): -94.5 dBu (unweighted), -97.5 dBu (A-weighted)
• Crosstalk (Headphones): <-90 dB
• Max Output (Headphones): 50 mW @ 600 Ω, 100 mW @ 300 Ω, 400 mW @ 30 Ω
• EQ: 3-band (Bass ±12 dB @ 100 Hz, Mid ±12 dB variable 100 Hz–10 kHz, Treble ±12 dB @ 10 kHz)
• Limiter: Ratio ∞:1
• Output Level Range: -20 to +15 dBu (phones)

What's In The Box

• Behringer P16 HQ personal monitoring mixer
• External DC power supply
• Quick start guide

Behringer P16 HQ (Behringer 0609-AAP86-US1)
