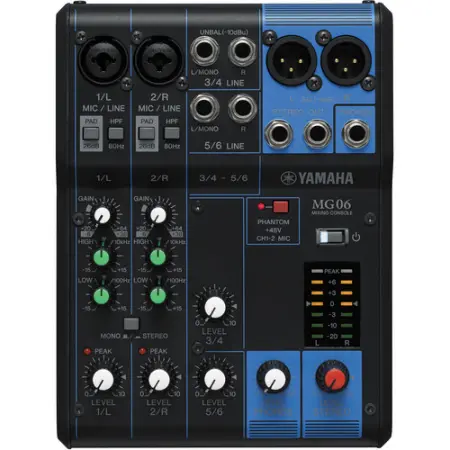

Yamaha MG06 | Ins: 2 Mic, 2 Line
$137.99
Yamaha used its extensive acoustical knowledge and engineering skills in offering you their MG06 mixer. This 6-channel mixer can bring order and balance to your sound, whether produced in school, church, home studio, or on the road.
This small mixer is perfect for an auditorium public address system that doesn't need a lot of microphone channels. The two microphone inputs feature Yamaha's D-PRE mic preamps, designed for their high-end recording consoles, which use a special Class A amplifier circuit to faithfully reproduce a microphone's signal without sacrificing warmth. The MG06 also offers stereo line-level inputs that can accommodate unbalanced signals via 1/4" TS or RCA plugs.
Channels 1 and 2 include two bands of EQ to help you adjust instruments and voices. You'll find the peak lights and LED meter handy for keeping channels clean and distortion-free. The MG06 comes in a powder-coated steel chassis that's ready to endure the occasional but inevitable bumps that occur along the way.
Features:
6-Channel Mixing Console
Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
1 Stereo Bus
"D-PRE" mic preamps with an inverted Darlington circuit
XLR balanced outputs
PAD switch on mono inputs
+48V phantom power
Metal chassis
Specifications:
On-board processors : SPX algorithm: 24 programs
Phantom power: +48 V
Input Channels: 2 Mono[MIC/LINE], stereo[LINE]: 2
Output Channels: STEREO OUT: 2
PHONES: 1
Bus: Stereo: 1
Input Channel Function
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono)
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20, -30 dB]
Dimensions 5.9 x 2.4 x 7.9" (149 x 62 mm x 202 mm)
Net Weight 1.98 lb (0.9 kg)
