American DJ 12P Hex Par

144W Hex LED

$499.99

VIP Image

Get $109 back. Or Join VIP for up-front discounts.

Staff Picks

Loading...

Accessories

Loading...

12P HEX
SKU: HEX120

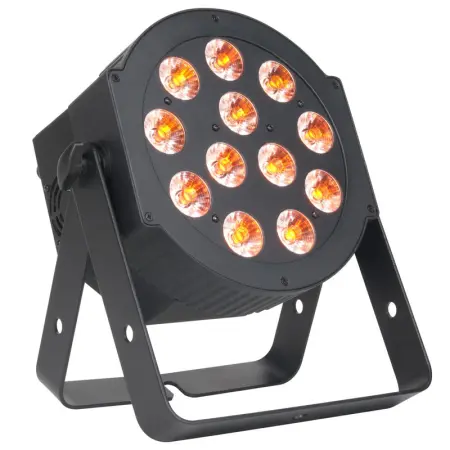

The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs.

Details
The ADJ 12P Hex is a versatile LED Par fixture with 12x 12-Watt, 6-IN-1 HEX LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue.
12P HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 6 units (110V) or 13 units (240V) together via the fixtures built-in IEC In/Out power connectors.
The ADJ 12P HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (Sold Separately). Alternatively the fixture may be operated via a DMX controller or the units built-in programs.

If you like the ADJ 12P Hex, make sure to also check out the ADJ 18P Hex IP.

American DJ 12P Hex Par Specifications
• Ultra bright, flat wash fixture with 12 x Red, Green, Blue, Amber, White & UV LED pixels
• Smooth RGBAW + UV color mixing
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
• 4 DMX Modes: 6, 7, 8, & 12 channel
• 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
• 7 Built-In Programs
• 63 built-in Color Macros
• Flicker Free operation (No flickering on camera)
• 5 selectable Dimmer Curves (Standard, Stage, TV, Architectural & Theatre)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• Beam angle: 30-degree

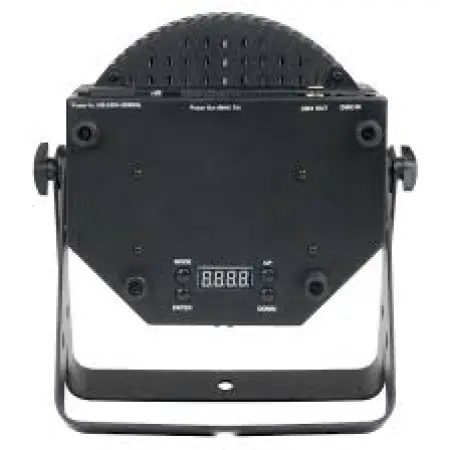

• 4-button, DMX digital display on rear panel
• Compatible with Dotz Par RF wireless remote control (sold separately)
• Dual yoke allows fixture to be hung or set on the ground
• Data linkable via 3-pin XLR cables
• Power linkable via IEC power cables. (6x 12P Hex’s Max @ 110V, 13x 12P Hex’s Max @ 240V
• Light Source: 12x 12-Watt RGBAW + UV LEDs, (Rated at approximately 50,000 hrs.)
• Power Draw: 150W total (All LED's @ Full On)
• Multi-voltage operation: AC 110-250V, 50/60Hz (IEC power In/Out)
• Dimensions (LxWxH): 11.75” x 10” x 5.5”/ 298 x 249 x 136mm
• Weight: 9 lbs. / 3.9 kgs

ADJ 12P Hex Par (American DJ 12PHEX Par)

Review (1 of 3) American DJ 12P Hex Par | 144W Hex LED By Michael Kennedy 116 points
July 09, 2025

So far so good. This unit is well constructed; steel not plastic. I feel better that it will last if dropped. I've tested it out and the colors are good. There is a slight hot spot, but it's gone with longer throws of 3 plus meters. The unit also has a gel frame, which I plan to add a diffuser to eliminate any hot spots and use this fixture more of a wash. Keep in mind, ALL LED RATINGS are devided by the colors. So, a 12-watt led in a hex format is really six 2-watt chips. Even so, as compared to my Chauvet Slimbank -18 UV's, it's just as bright with 12 2-watt UV chips. I also have the Dotz TPar, this one fixture is not as bright as the 4 Dotz, but it's close; it's definently richer in saturation. I love that I can have a couple fixtures that do so much. Also the colors with UV bring a whole new level of vibrance. I think KPODJ's price point is spot on.

Review (2 of 3) American DJ 12P Hex Par | 144W Hex LED By Michael Tawyea 81 points
July 09, 2025

The ADJ 12P Hex Lights are super bright. While there is 12 LED chips/colors at only 2 Watts each, please remember wattage is not how light out put is measured. These are extremely efficient LEDs. Producing higher light output at 2W than most any lights even of higher wattage. <br /> <br /> The Colors are very Rich and Vibrant. Mixing is easy and very straight forward. The UV intensity from the 12Ps is just incredible...<br /> <br /> I am currently using 8 of these fixtures, 4-left and 4-right, on stage and facing out to the dancing crowd. I do some very large venues and I am now buying another set of 8 to place on the backside of the floor. With The UV and strobing cababilities I hope to completely fill/saturate even the largest dance floors.<br /> <br /> In short the American DJ 12P Hex Lights are powerful, color rich and very versatile. A win / win / win light.<br /> <br />

Review (3 of 3) American DJ 12P Hex Par | 144W Hex LED By Michael Tawyea 81 points
July 09, 2025

I currently use 8 of the ADJ 12 Hex pars. These have an incredible amount of light including the UV. The case is Steel and very sturdy. The colors are very deep and rich. Mixing, Strobing, Pulsing and Fades are all smooth, natural and simple with any DMX controller. (I use ADJ Operator 384 or 192) At 9lb.s each a light bar with 4 is approximately 50lb.s but very worth it for the added punch of these pars. <br /> <br /> I would recommend these to anyone.
