ADJ Encore LP5IP
$429.99

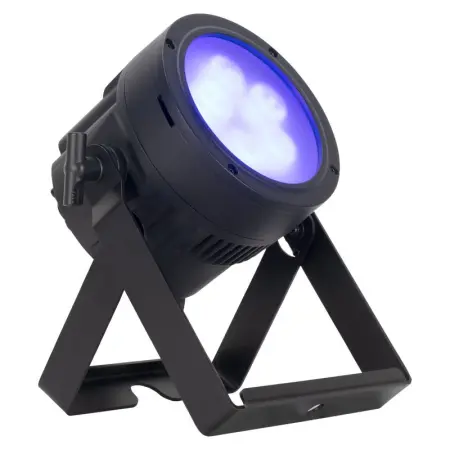

The ADJ Encore LP5IP is a versatile, heavy duty Par with five (5) 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), a 10° beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events. It offers flicker free operation for TV and film and linear white color temperature control from 2700K - 7000K. A removable 25° frost filter is included.
The ADJ Encore LP5IP is a versatile IP65 outdoor rated Par with 5 x 20-Watt (4-IN-1: Red, Green, Blue & Lime) Quad LEDs. With a 10° beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust.
The fixture’s Quad LED engine offers flicker free operation for TV and film and linear white color temperature control from 2700K to 7000K.
The Encore LP5IP professional features include: 6 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.

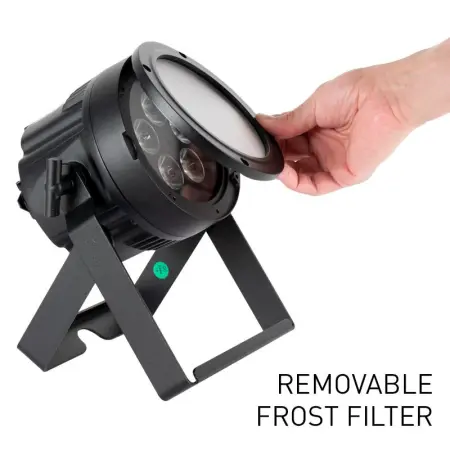

The Encore LP5IP includes a removable 25° frost filter. There are several additional frost filter options (sold separately) that customize the beam angle.
FEATURES:
Linear Color Temperature Control (2700K to 7000K)
Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
16-Bit Fine Color Control (Red, Green, Blue & Lime)
64 built-in Color Macros
SPECIFICATIONS:
SOURCE:
Light Source: 5 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
PHOTMETRIC DATA:
High CRI Data
Beam Angle: 9.7°
Field Angle: 18.8°
CRI: 83
CRI R9: 54
Color Temperature: 6942K
Lux: 2179 @ 3M, 785 @ 5M
Lumens: 771
Full ON Data
Beam angle: 9.6°
Field Angle: 18.8°
CRI: 67
CRI R9: -98
Color Temperature: 21188K
Lux: 1766 @ 3M, 636 @ 5M
Lumens: 607
CONTROL / CONNECTIONS:
4-button, DMX digital display on rear panel
Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
Supports RDM (Remote Device Management)
With Wired Digital Communication Network
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
Flicker Free operation (No flickering on camera)
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
6 DMX Modes: 4, 7, 8, 10, 13, & 16-channel
Quiet fan mode
CONSTRUCTION:
IP65 Rated: Ingress Protection against liquid, snow, dust and sand
All metal construction

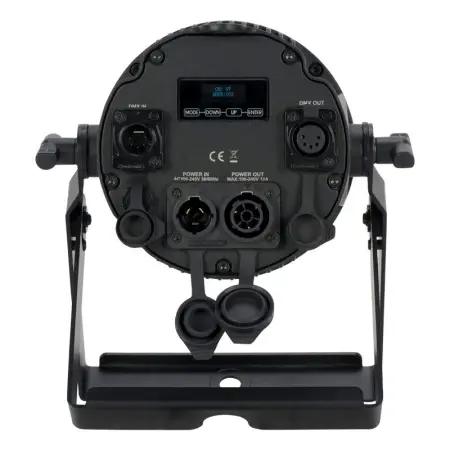

IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
Locking, outdoor IN/Out Power connectors
Data linkable via 5-pin XLR DMX connections
Scissor Yoke & safety eye
ELECTRICAL / THERMAL:
Multi-voltage operation: AC 100-240V, 47/63Hz
Daisy chain: 21 units max (110V) / 44 units max (240v)
Max power: 32W
DIMENSIONS / WEIGHT:
Dimensions (LxWxH): Dimensions (LxWxH): 5.92” x 8.23”x 10.06” / 150.48mm x 209.00mm x 255.40mm
Weight:5.3 lbs / 2.4 kgs
APPROVALS / RATINGS:
cETLus Pending
IP65
INCLUDED ACCESSORIES:
(1) 25° Frost Filter
(1) Power Cord
OPTIONAL ACCESSORIES:
ELP5L100: 100-degree frost filter for the Encore LP5IP
ELP5L60: 60-degree frost filter for the Encore LP5IP
ELP5L30X60: 30x60-degree frost filter for the Encore LP5IP
ELP5L1X40: 1x40-degree frost filter for the Encore LP5IP
ELP5L20: 20-degree frost filter for the Encore LP5IP
| Beam Angle | 10° degrees |
| Frequency Response | 900 – 25,000Hz Hz |
| IP Rating | IP65 |
| LED Type | Quad RGBL LEDs (Red, Green, Blue & Lime) |
| Power Rating | 5 x 20W Quad LEDs W |
| Wattage | 32W max power W |
| Brand | American DJ |
| Name | American DJ Encore LP5IP |
| Primary Category | Par Light |
| Color Mixing | Red, Green, Blue and Lime LEDs with 64 built-in color macros |
| Control Interfaces | 4-button DMX digital display, 6 DMX modes, RDM support |
| Dimensions | 5.92” x 8.23” x 10.06” (150.48mm x 209.00mm x 255.40mm) |
| Included Accessories | 25° Frost Filter, Power Cord |
| Weight | 5.3 lbs / 2.4 kgs kg |
| Warranty Length | cETLus Pending years |
