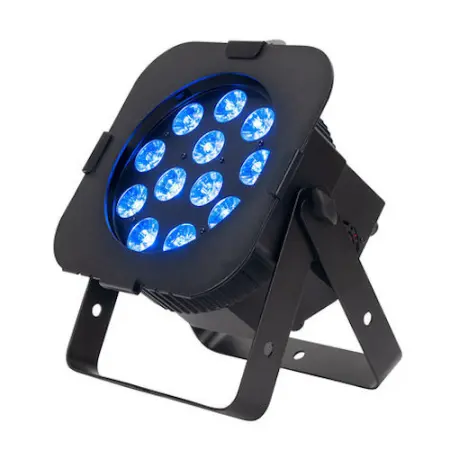

American DJ 12PX Hex (ADJ 12PX Hex Par)
Great for lighting any stage, the all metal ADJ 12PX Hex is a versatile LED PAR with 12 x 12-Watt, 6-IN-1 HEX LEDs. With a 30° beam angle, this fixture can produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Plus, its patent pending, intelligently designed power and DMX connectors make it ideal for uplighting a venue, or for use as a stage wash.
The American DJ 12PX Hex offers a host of professional features, including 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-button DMX menu with digital display. Users can choose either 3-pin or 5-pin DMX connectors.
The ADJ 12PX Hex Par is compatible with the Dotz Par RF wireless RF remote (sold separately). The fixture can also be operated via DMX controller or the unit's built-in programs. Order the ADJ 12PX Hex LED Par today!
Includes
powerCON power cable
Scissor yoke
Gel frame to use with diffusion filters (diffusion filters sold separately)
ADJ 12PX Hex Features:
Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
Scissor yoke + rubber feet allows fixture to be hung or set on the ground
Flicker Free operation (No flickering on camera)
Smooth RGBAW + UV color mixing
All metal black or white exterior housing
ADJ 12PX Hex Specifications:
Optical:
Light Source: 12 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)
LED life rated at approximately 50,000 hrs.
Beam angle: 30°
Control:

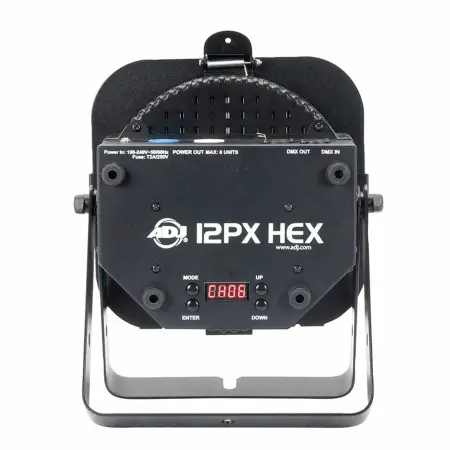

4-button, DMX digital display on rear panel
Compatible with Dotz Par RF wireless remote control (sold separately)
7 Built-In Programs
63 built-in Color Macros
4 DMX Modes: 6, 7, 8, & 12 channel
5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled

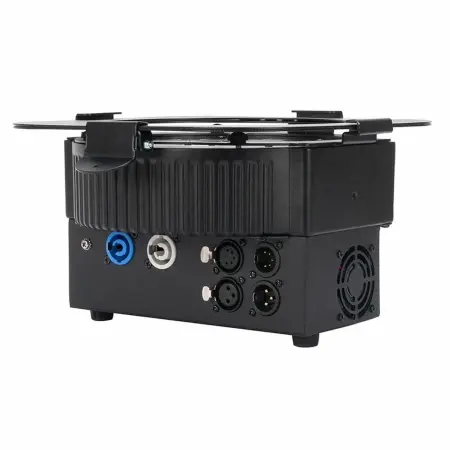

Connections:
Data linkable via 3-pin or 5-pin DMX connections
Daisy chain power from powerCON In/Out connection
With Wired Digital Communication Network
Electrical:
Multi-voltage operation: AC 100-240V, 50/60Hz (powerCON power In/Out)
Dimensions / Weight:
Dimensions (LxWxH): 5.34" x 9.8" x 11.7" (136 x 249 x 297.5 mm)
Weight: 8.7 lbs (4 kg)
Approvals:
ETL Approved
CE Approved
