Product: 3 Pin DMX Cables
3 Pin DMX Cables:
• AC3PDMX5 (5 Foot 3 Pin DMX Cable)
• AC3PDMX10 (10 Foot 3 Pin DMX Cable)
• AC3PDMX25 (25 Foot 3 Pin DMX Cable)
• AC3PDMX50 (50 Foot 3 Pin DMX Cable)

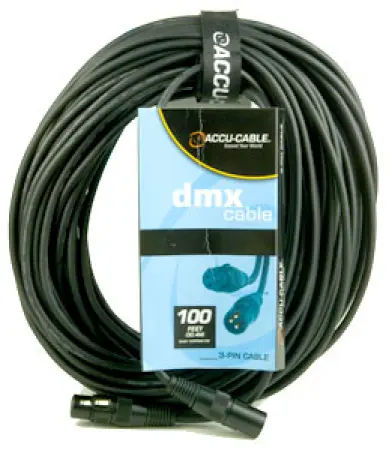

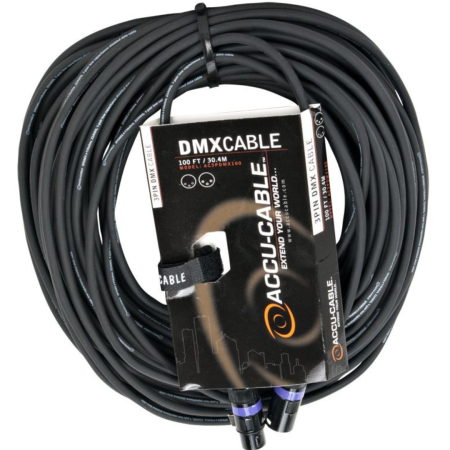

• AC3PDMX100 (100 Foot 3 Pin DMX Cable)
3 Pin Male to 5 Pin Female XLR Cable:
• AC3PM5PFM (3 Pin Male XLR to 5 Pin Female XLR Turnaround)
Description:
22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation,
twisted pair, polyethylene inner jacket, Duofoil® (100% coverage) and cotton
plus a tinned copper braid shield (85% coverage), PVC jacket.
American DJ ACCU 50ft DMX Cable (ADJ AC3PDMX50)
Physical Characteristics:
Conductor:
• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper
Insulation:
Insulation Material PE Polyethylene
Lay Length:
• Lay Length: 2.5"
• Direction: Left Hand Lay
• Twists: 4.8 per foot
Inner Jacket:
• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Black/White
Outer Shield:
• Outer Shield Trade Name: Duofoil®
• Outer Shield Type: Tape/Braid
Outer Shield Material:
• Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum
Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned
Copper, Coverage %: 85
Outer Jacket:
• Outer Jacket Material: PVC-Polyvinyl Chloride
Overall Nominal Diameter:
• Overall Nominal Diameter: .229"
Mechanical Characteristics:
• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight: 31 lbs/1000
• Minimum Bend Radius (Install): 3.2"
• Maximum Recommended Pull Tension: 72 lbs.
Electrical Characteristics:
• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
These cables have always worked for me without any problems. The jacket is soft and flexible, but rugged and tough. The plug ends don't fall apart like some of the lesser brands. Yet they can be taken apart if service is ever needed. American DJ to me has always been a good middle of the road company. There are higher brands and lesser brands. But for something simple like a cable I don't feel like I need to spend a ton of money, yet i didn't want to cheap out either.
