American DJ Aria X2 TB

Wireless DMX Transceiver

The American DJ Aria X2 TB is a high-performance wireless DMX transceiver designed for seamless lighting control in both portable and permanent installations. Offering robust signal reliability, a user-friendly interface, and flexible power options, it’s the ideal tool for professionals needing a powerful, compact wireless DMX solution.

American DJ Aria X2 TB Competitive Differences

• Built-in rechargeable battery provides up to 20 hours of wireless operation
• Bluetooth, 2.4GHz, and Sub-GHz support for versatile wireless performance

American DJ Aria X2 TB Description

The American DJ Aria X2 TB delivers professional-grade wireless DMX transmission and reception with unmatched flexibility. Engineered for mobile events, theatrical productions, and fixed lighting rigs, it supports both AC power and an internal lithium battery—providing up to 20 hours of wireless operation on a single charge. Its hybrid wireless architecture supports Sub-GHz, 2.4GHz, and Bluetooth 4.2 (BLE), ensuring reliable communication across varied signal environments. Configuration is easy via the Aria X2 BLE mobile app or through the intuitive front panel with rotary knob and display. Whether used as a transmitter or receiver, it supports a single DMX universe with low power consumption and stable signal integrity. The device features 5-pin XLR in/out for DMX connectivity, IP65-rated locking power connections, and rack or wall mounting options. Built with a durable IP20-rated metal enclosure, the Aria X2 TB is ready for rugged use in demanding environments. It also complies with strict EMC, safety, and radio standards for global compatibility. Ideal for production companies, DJs, lighting techs, and installers, this unit combines portability, functionality, and professional-grade wireless performance in one compact device.

Model Features

• Single DMX universe with wireless DMX transmit/receive
• Dual power: AC or internal lithium battery (up to 20 hrs)
• Supports Sub-GHz, 2.4GHz, and Bluetooth 4.2 BLE

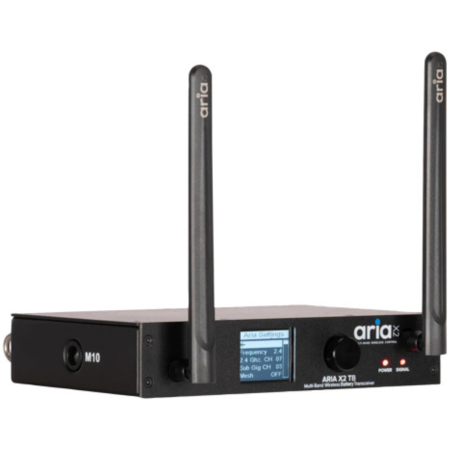

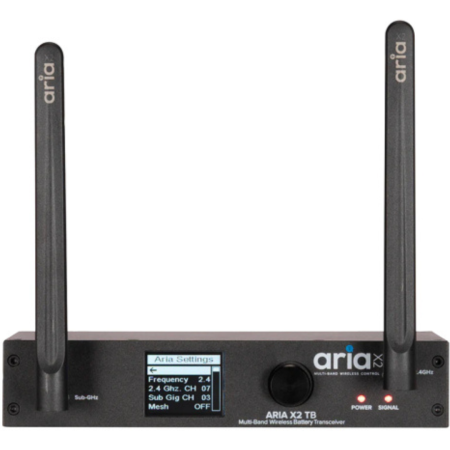

• Aria X2 BLE app and rotary knob for easy setup
• 5-pin XLR DMX input/output with IP65 power connectors

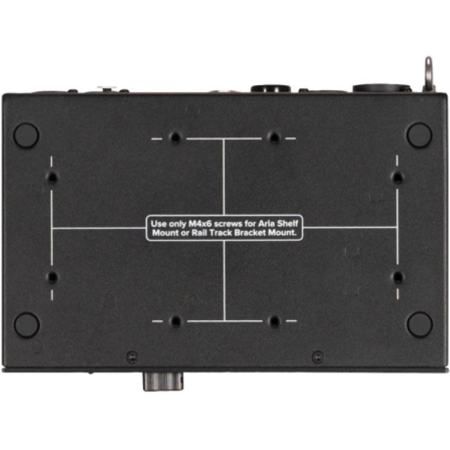

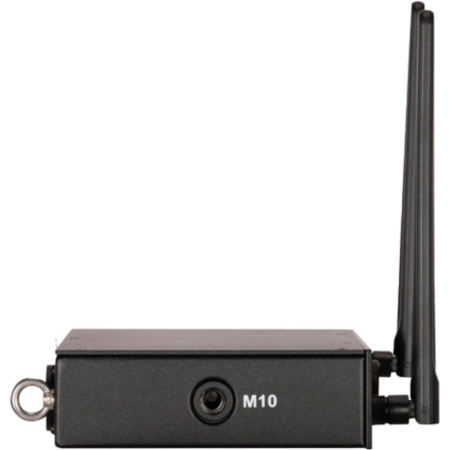

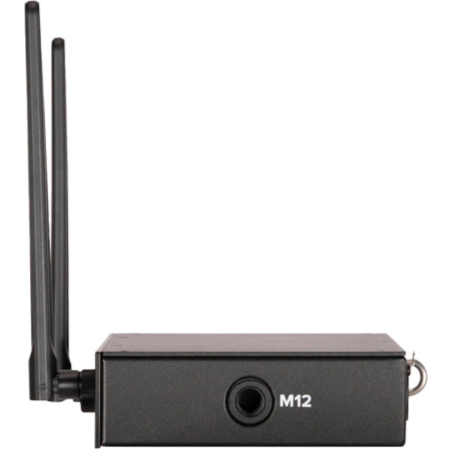

• Rugged aluminum enclosure with M10/M12 threads and safety eyelet

Model Specifications

• Wireless Protocols: DMX, Bluetooth 4.2 (BLE), Proprietary 802.15.4
• Frequency Ranges:
  • Bluetooth: 2402–2480 MHz
  • Zigbee: 2405–2480 MHz (EU)
  • Sub-GHz: 906–924 MHz (US)
• Power Supply: AC 100–240V 50/60Hz or 2x 18650 Li-ion (3.6V, 2600mAh)
• Battery Life: Up to 20 hours per full charge
• Power Consumption: 2W
• Power Fuse: T1.25A/250V (5x20mm)

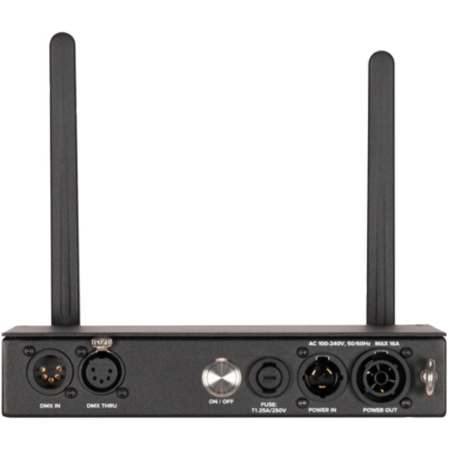

• Connectors: 5-pin XLR (DMX I/O), SMA Antenna, IP65 Locking Power In/Out
• Construction: IP20 aluminum/metal housing
• Max Ambient Operating Temp: 113°F (45°C)
• Max Operating Humidity: <75%
• Dimensions: 6.1 x 8.5 x 1.7 in (155 x 215 x 42 mm)
• Weight: 2.7 lb (1.23 kg)

What's In The Box

• Aria X2 TB Wireless DMX Transceiver
• AC Power Adapter
• Antenna
• Mounting accessories
• User manual

American DJ Aria X2 TB (American DJ Aria X2TB)
