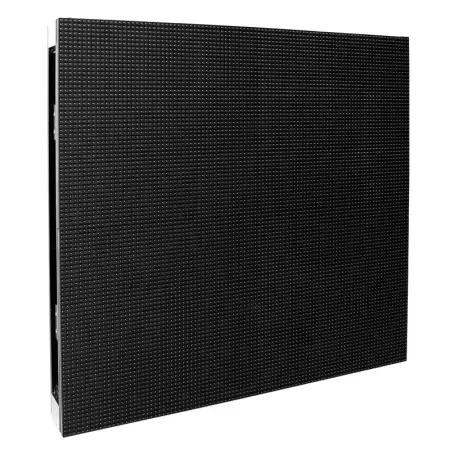

The AV6X is a new and improved video panel from ADJ. It still features the high resolution quality and performance that users have come to appreciate from the AV6, but it now features higher quality LEDs for better color consistency and a darker black masking for higher contrast.

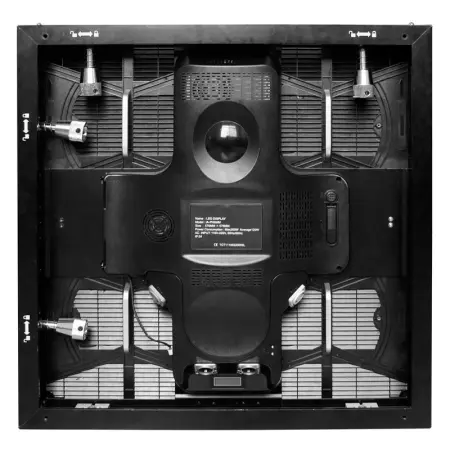

Each panel has a pixel pitch of 6.0mm with a configuration of a 3-in-1 RGB SMD2121 LED. The brightness is 1200NITS. There are 4 mini modular panels with-in the master panel. This allows for easy serviceability. The AV6X connections include powerCon In/Out and Ethercon In/Out. This panel has features a Navistar receiving card.
ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases.
SPECIFICATIONS:
• Pixel Pitch: 6.0mm (0.25”)
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 96x96; 27,777 per square meter
• Size: 22.75” x 22.75” x 3” / 576 x 576 x 75mm
• Module Quantity: 4
• Weight: 23lbs. / 8.15Kg
MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm
OPITCAL RATINGS:
• Brightness: 1200 NITS
• View Angle: Horizontal 140°/Vertical 140°
• Distance: 20ft. (6m)
• Gray Scale / Display Color: 14Bit
• Brightness Adjustment: 0~100% 100 Levels
• Processing: 14-bit
POWER SUPPLY:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 300W/per panel
• Ave. Power Consumption: 120W/per panel
• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out
CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/12 Duty
• Refresh Rate: 1200Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL:
• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/
10-90% (No Condensation)
• Operating Life / MTBF: 100,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
• Listings: CE, FCC Class A
OPTIONAL ACCESSORIES:
AV6FC: Flight Case - fits 8 AV6X Video Walls
AV6RB1: Rigging Bar - Connect up to 20 AV6X Video Walls
MCTRL-300: Video Processor
Media Master Express 4: Video Software
GrandVJ 2.0: Video Software
CABLES:
Cabinet to Cabinet Data Link Cables (NEUTRIK Ethercon Connectors)
MCTRL-300 Processor to Cabinet (NEUTRIK Ethercon Connectors)
NEUTRIK POWERcon Link Cables
NEUTRIK POWERcon Main Power Cables
ADJ AV-6X video panel
(American DJ AV6222)
