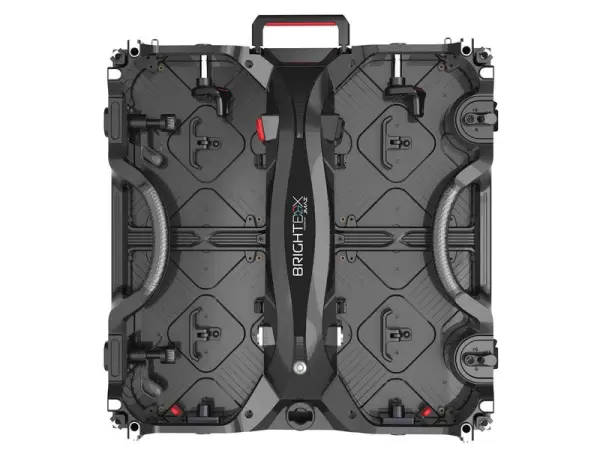

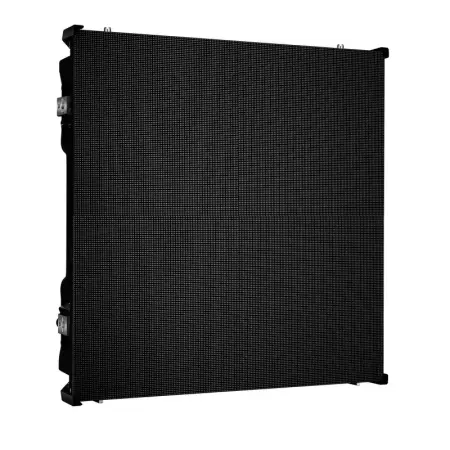

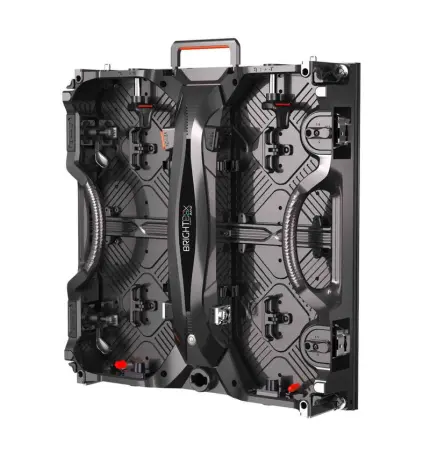

JMAZ BB1031 Osiris 3.9

Outdoor LED Video Wall Panel

The JMAZ BB1031 Osiris 3.9 is a compact outdoor LED video wall panel designed for concerts, festivals, touring productions, and professional event installations. Its 4500-nit brightness, weather-resistant cabinet, and flexible curvature support vivid outdoor displays in demanding production environments.

JMAZ BB1031 Osiris 3.9 Competitive Differences

• 4500-nit brightness provides strong visibility for daylight and outdoor applications
• IP65-rated front and IP54-rated rear provide protection for outdoor production environments
• Adjustable ±5° curvature supports flat, concave, and convex video wall configurations
• Front and rear serviceability provides flexible access for maintenance
• Swappable all-in-one power box helps simplify component replacement and servicing
• Integrated corner protection helps reduce cabinet damage during transportation and setup
• Compact 500 x 500mm cabinet weighs 17.6 lb for efficient mobile deployment
• Refresh rate of at least 3840Hz supports smooth playback and camera-facing applications

JMAZ BB1031 Osiris 3.9 Description

The JMAZ BB1031 Osiris 3.9 combines a 3.9mm pixel pitch with a native resolution of 128 x 128 pixels. Its SMD1921 LED configuration delivers clear graphics, video, and event content across modular outdoor video wall systems.

With 4500-nit brightness, the panel is designed to remain visible in bright outdoor environments. Its refresh rate of at least 3840Hz supports smooth motion reproduction and helps reduce visible flicker when the display is recorded by professional video cameras.

The 500 x 500mm cabinet features IP65 protection on the front and IP54 protection on the rear. Front and rear serviceability gives technicians flexible access to internal components, while the swappable all-in-one power box helps streamline maintenance during touring, rental, and installed applications.

Adjustable ±5° curvature allows production teams to create flat, concave, or convex display configurations. Corner protection adds durability during repeated handling, and the panel ships in a road case for transportation to mobile events and live productions.

BB1031 Features

• 3.9mm pixel pitch
• 500 x 500mm outdoor LED cabinet
• 128 x 128 native pixel resolution
• 4500-nit brightness
• SMD1921 LED technology
• Refresh rate of ≥3840Hz
• Adjustable ±5° curvature
• IP65-rated front
• IP54-rated rear
• Front and rear serviceability
• Swappable all-in-one power box
• Integrated corner protection
• ETL, FCC, RoHS, and CE certifications
• Ships in a road case

BB1031 Specifications

• Pixel Pitch: 3.9mm
• LED Type: SMD1921
• Panel Dimensions: 19.6 x 19.6 x 3.2 in (500 x 500 x 83 mm)
• Panel Weight: 17.6 lb (8 kg)
• Pixel Resolution: 128 x 128
• Total Pixels Per Panel: 16,384
• Brightness: 4500 nits
• Refresh Rate: ≥3840Hz
• Curvature: ±5°
• IP Rating: IP65 front / IP54 rear
• Serviceability: Front and rear
• Certifications: ETL, FCC, RoHS, and CE
• UPC: 618528598550

What's In The Box

• JMAZ BB1031 Osiris 3.9 outdoor LED video wall panel
• Road case
