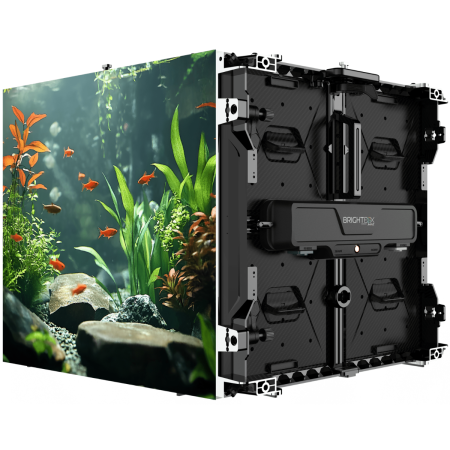

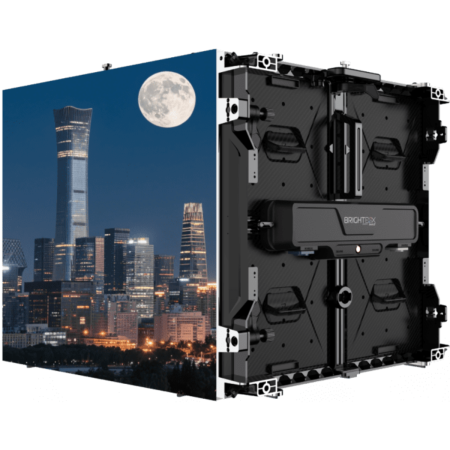

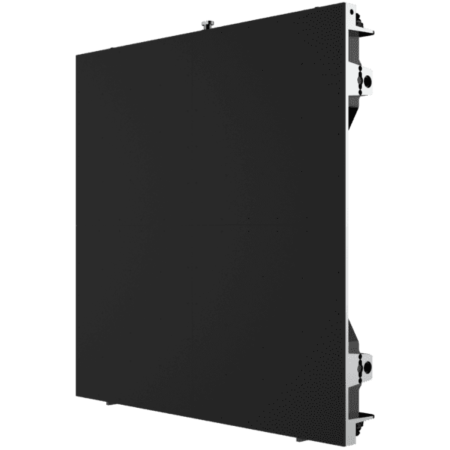

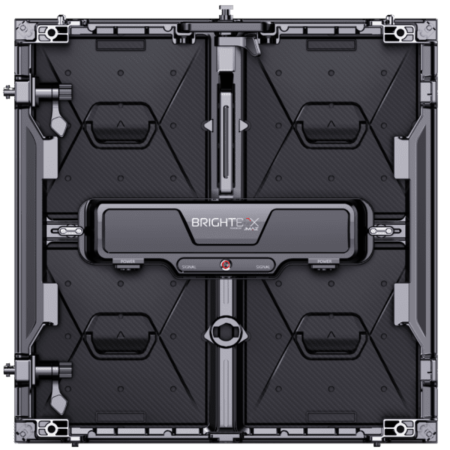

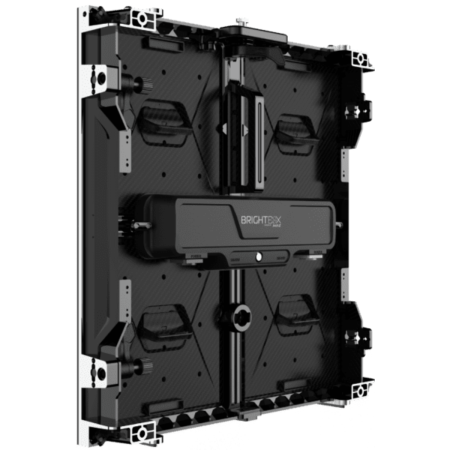

JMAZ BB1033 Osiris 2.6 Fixed / Mobile

Hybrid LED Video Wall Panel

The JMAZ BB1033 Osiris 2.6 Fixed / Mobile is a versatile indoor LED video wall panel designed for both permanent installations and portable production systems. Its lightweight cabinet, fine 2.6mm pixel pitch, flexible mounting options, and front or rear service access make it useful for venues, corporate events, houses of worship, rental inventories, and digital signage.

JMAZ BB1033 Osiris 2.6 Fixed / Mobile Competitive Differences

• Hybrid cabinet design supports both fixed installations and mobile event applications
• Fine 2.6mm pixel pitch provides detailed visuals at relatively close indoor viewing distances
• Native 192 x 192 resolution provides 36,864 pixels per panel
• Lightweight 11 lb cabinet simplifies transportation, handling, and installation
• Front and rear serviceability provides flexible maintenance access
• Direct wall-mount and hanging compatibility support multiple installation methods
• Swappable all-in-one power box helps streamline component replacement and maintenance
• Integrated corner protection helps reduce panel damage during setup, teardown, and transportation
• Refresh rate of at least 3840Hz supports smooth playback and camera-facing applications

JMAZ BB1033 Osiris 2.6 Fixed / Mobile Description

The JMAZ BB1033 Osiris 2.6 Fixed / Mobile combines a 2.6mm pixel pitch with a native resolution of 192 x 192 pixels. Its SMD1515 LEDs deliver detailed text, graphics, presentation content, and video across modular indoor display systems.

With 800-nit brightness, the panel produces vivid visuals for controlled indoor environments. Its refresh rate of at least 3840Hz supports smooth motion reproduction and helps reduce visible flicker during livestreams, recorded presentations, and other camera-facing productions.

The hybrid cabinet can be used for permanent wall-mounted systems or suspended mobile displays. Front and rear serviceability gives technicians multiple ways to access internal components, while the swappable all-in-one power box helps simplify servicing and component replacement.

The compact 500 x 500mm cabinet measures only 63mm deep and weighs 11 lb. Corner protection adds durability during repeated handling, and the panel can ship in either a road case or wood case for storage and transportation.

BB1033 Features

• 2.6mm pixel pitch
• Hybrid fixed and mobile cabinet design
• 500 x 500mm indoor LED cabinet
• 192 x 192 native pixel resolution
• 800-nit brightness
• SMD1515 LED technology
• Refresh rate of ≥3840Hz
• IP30-rated front
• IP20-rated rear
• Front and rear serviceability
• Direct wall-mount compatibility
• Hang-mount compatibility
• Swappable all-in-one power box
• Integrated corner protection
• FCC, RoHS, and CE certifications
• Ships in a road case or wood case

BB1033 Specifications

• Pixel Pitch: 2.6mm
• LED Type: SMD1515
• Panel Dimensions: 19.6 x 19.6 x 2.4 in (500 x 500 x 63 mm)
• Panel Weight: 11 lb (5 kg)
• Pixel Resolution: 192 x 192
• Total Pixels Per Panel: 36,864
• Brightness: 800 nits
• Refresh Rate: ≥3840Hz
• IP Rating: IP30 front / IP20 rear
• Serviceability: Front and rear
• Mounting: Direct wall mountable or hang mountable
• Certifications: FCC, RoHS, and CE
• UPC: 618528599533

What's In The Box

• JMAZ BB1033 Osiris 2.6 Fixed / Mobile hybrid LED video wall panel
• Road case or wood case, depending on configuration

Jmaz Osiris 2.6 (JMAZ BB1033)
