American DJ Duo Station
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued
American DJ Duo Station (ADJ DUO-STATION)

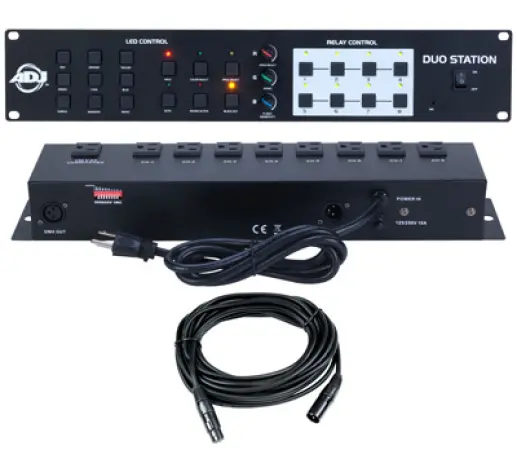

The American DJ DUO STATION features two controllers in one. One side
is a basic 3-channel RGB LED controller with the same functions as the ADJ
RGB3C, while the other side is an 8-channel On/Off Switching System similar to
the ADJ SC8 controller. The DUO STATION has separate outputs on the rear control
panel so each side runs independently from the other. It’s the ideal control
solution for DJs, bands, small night clubs, and bars that want simple LED
control and On/Off control of effect type lights.
MAIN FEATURES:
• System includes: 1x Duo Station Controller, 1x Relay Pack, 1 x 20-foot/7M DMX
Cable
• 2 Lighting Controllers in 1: RGB LED 3-channel Controller + Relay On/Off
controller WITH SEPARATE DATA OUTPUTS.
• BUILT IN PROGRAMS AND STATIC COLOR SCENES FOR 3-CHANNEL RGB LED FIXTURES.
LED CONTROL FEATURES:
• Basic 3-channel RGB LED controller designed to control any standard 3 channel
RGB fixture where channel 1 is Red, channel 2 is Green and channel 3 is Blue.
• 9 static color buttons
• Hold COLOR button
• Color Select button
• Program Select button: 16 single and multi color chase programs
• Auto button: activates the 16 chase programs to randomly sequence while the
speed of the chases can be controlled via the SPEED potentiometer
• Sound active button: actives 16 chase programs
• Black out button zeros output on the LED control side.
• 3 manual RGB potentiometers: allows the user to dial in a desired color on the
fly
• RGB potentiometers double as Program Select, Chase Speed and Flash/Sensitivity
manual controls
RELAY CONTROL (ON/OFF):
• 8 buttons to switch relative channels on/off
DUO STATION CONTROL PANEL TECHNICAL SPECS:
• DMX output connector: 3-pin XLR
• Power In: 12V 500mA (Included)
• Power consumption: 3.6 Watts
• Dimensions: 19”x 3.5”x3.5” / 483x89x89mm (2 rack spaces)
• Weight: 3.5 lbs. / 1.5 kg.
RELAY PACK TECHNICAL SPECS:
• DMX & Stand Alone operation modes
• DMX input & output connectors: 3-pin XLR
• Dip switches for DMX addressing and work mode setting
• 8 x 3-prong “switched” Edison sockets (120V/60Hz)
• 1 x 3-prong “Constant power” Edison socket (120V/60Hz)
• 5A max per socket
• Dimensions: 18.75”x3.5”x2.5” / 473x91x63mm
• Weight: 5 lbs. / 2.25kg.
The American DJ Duo Station is the best solution to controlling any simple RGB LED par lights and effect lights you can get, a single controller.<br /> <br /> Broken up into 2 sections the left side controls all of the functions of the RGB LED par lights and has 9 quick presets that you can easily call up a standard color with the push of a button. This is great for running LED pars on a truss or even controlling scrim lights. I wouldn't use it for up lighting a room unless you are going to dedicate the unit for uplighting.<br /> <br /> The section on the right has 8 ON / OFF buttons that easily and quickly allow you to turn on and off each light plugged into the corresponding plug on the relay pack.<br /> <br /> The unit comes with a 25' DMX cable that plugs into the DMX in and that controls everything once you have power running to both units. You will need to run a DMX cable out to control any RGB LED par or wash lights. The controller does come with a power adapter...Yes another Wall Wart.<br /> <br /> All IN ALL this is a GREAT solution for on the fly controlling simple ON / OFF effect DJ lighting and 3 Channel RGB LED Washes and Light Bars without having to have a college degree in DMX addressing. <br />
