Outdoor LED Zoom PAR Wash Fixture
The

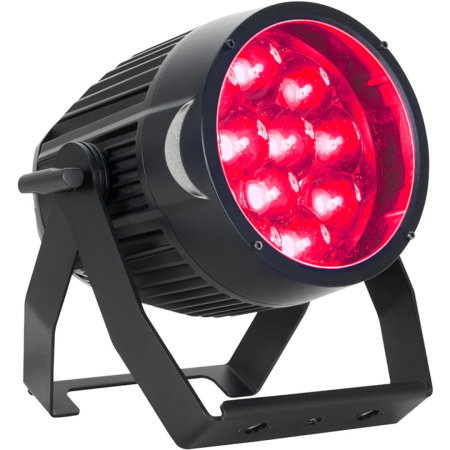

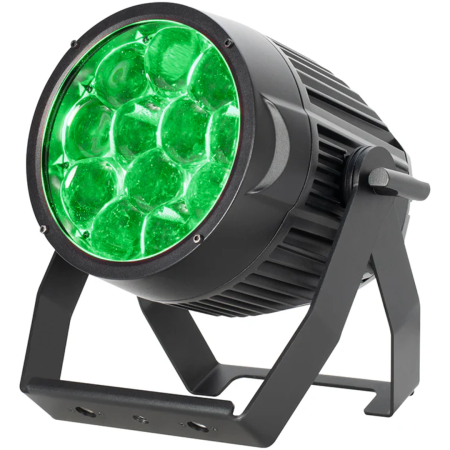

American DJ Encore LP12Z IP is a high-output, weatherproof RGBL wash light designed for professional outdoor and indoor events. Equipped with 12 x 20W Quad LEDs and a motorized zoom range of 9° to 50°, it delivers powerful and flexible coverage in a compact, road-ready housing. From festivals and concerts to architectural installations and theatrical stages, this IP65-rated fixture performs reliably in any environment.
American DJ Encore LP12Z IP Competitive Differences
- 12x 20W RGBL LEDs with 4400 lumen output
- IP65 rating for outdoor use with wireless DMX and RDM support
American DJ Encore LP12Z IP Description
The
Encore LP12Z IP from ADJ Lighting combines versatile performance, professional control features, and rugged build quality for lighting designers who need reliable gear for both indoor and outdoor environments. Its RGBL LED engine allows for a wide color spectrum including deep saturation, pastel tones, and clean tunable white light from 2700K to 6500K. Built-in presets offer quick setup with five selectable color temperatures and 64 color macros.
With a motorized zoom (5° to 30° beam / 9° to 50° field), the LP12Z IP gives you precise control over wash coverage. Whether highlighting a narrow architectural element or flooding a stage with vibrant color, this fixture adapts with ease.
Control options are equally robust, including DMX, RDM, and Aria X2 wireless DMX with up to 2500 ft line-of-sight range. Smooth 16-bit dimming, selectable curves, and flicker-free operation ensure top-tier performance in camera environments, making this a strong fit for broadcast, film, and corporate AV.

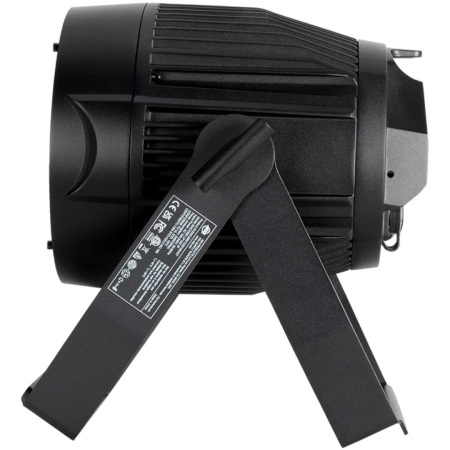

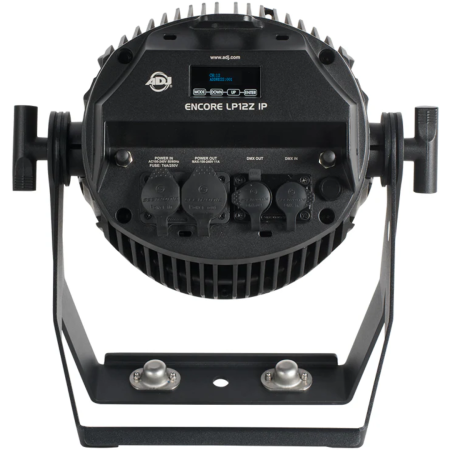

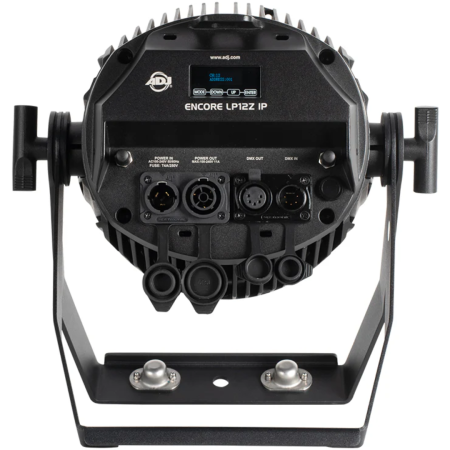

Housed in an all-aluminum chassis with C3 anti-corrosion coating and IP-rated connectors, the LP12Z IP is engineered to handle extreme weather conditions. It features locking power in/out connectors and a scissor yoke with safety eye for secure mounting in any rigging situation.
Model Features
- 12x 20W RGBL (Red, Green, Blue, Lime) quad-color LEDs

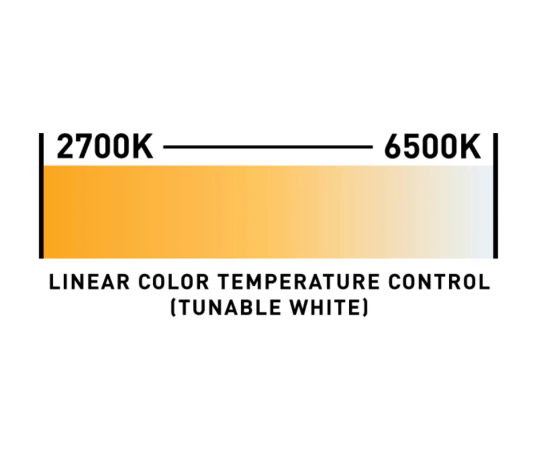

- 4400 lumens with tunable white from 2700K–6500K
- Motorized zoom: 5° to 30° beam, 9° to 50° field
- Wireless DMX (Aria X2) with RDM and wired DMX control

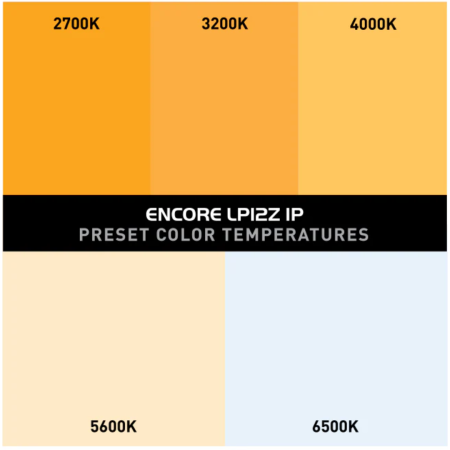

- 64 built-in color macros and 5 white presets
- 4 dimming curves and 6 dimming modes
- Flicker-free with adjustable refresh rates (900–25,000Hz)
- LED strobe, pulse, and 0–100% electronic dimming
Model Specifications
- LED Source: 12 x 20W RGBL (Quad) LEDs
- Output: 4400 Lumens
- Beam Angle: 5°–30° (Zoom)
- Field Angle: 9°–50°
- Color Temp Range: 2700K–6500K
- DMX Modes: 6, 9, 10, 12, 15, 18 channels
- DMX Control: Wired & Wireless (Aria X2), RDM compliant

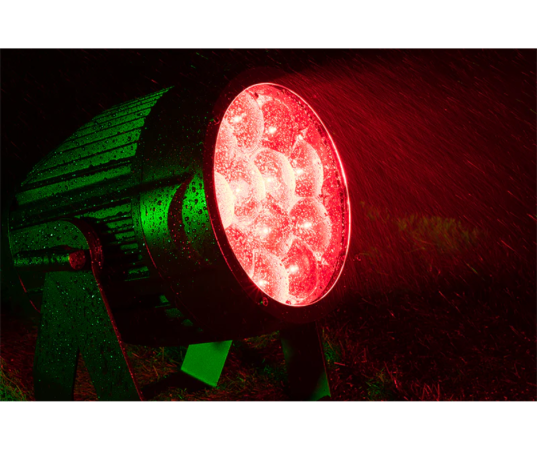

- IP Rating: IP65 (dust, water, snow, sand protection)
- Construction: Aluminum with anti-corrosion C3 coating
- Power: 100–240V AC, 227W Max
- Daisy Chain: 6 units @120V, 12 units @220V
- Dimensions: 14.6 x 12.4 x 13.6 in (371 x 316 x 346 mm)
- Weight: 16.6 lb (7.5 kg)
What's In The Box
- ADJ Encore LP12Z IP Fixture
- Power Cord
American DJ Encore LP12Z IP
(American DJ Encore-LP12Z-IP)
