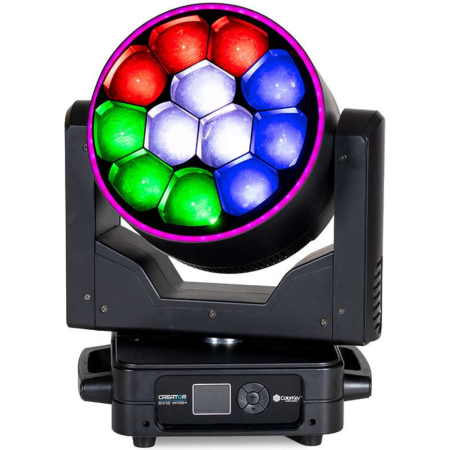

ColorKey Creator BX12 Wash

Moving Head Bee-Eye Wash

ColorKey Creator BX12 Wash is a 480W LED moving head Bee-Eye luminaire designed for stage washes, audience color, pixel effects, and animated beam looks. With twelve 40W RGBW LEDs, motorized zoom, individual pixel control, a rotating front lens cluster, and a multicolor UHX™ halo, it gives lighting designers a flexible fixture for both immersive wash coverage and high-impact aerial effects.

ColorKey Creator BX12 Wash Competitive Differences

• 480W output from 12 x 40W RGBW LEDs for powerful wash and beam effects
• Motorized zoom shifts from a wide wash to a tight multi-beam effect
• Individual pixel control lets each LED segment use its own color and intensity
• Continuous bi-directional lens rotation creates flower, kaleidoscope, and breathing wash effects
• 84 x 0.2W RGB UHX™ halo LEDs add synchronized chases, patterns, and color mixing
• Frame Set position control helps keep beams focused away from walls or audience sightlines

ColorKey Creator BX12 Wash Description

The ColorKey Creator BX12 Wash is built for productions that need more than a standard moving wash. Its twelve 40W RGBW LEDs deliver vibrant color output across a wide zoom range, making it useful for washing stages, dance floors, audiences, and architectural spaces with saturated color.

With the zoom set wide, the BX12 creates a soft, even wash for coverage across a performance area or venue. When zoomed tight, the fixture transforms into a multi-beam effect where individual pixels create crisp rays that can spin, chase, and move independently for high-energy aerial looks.

The rotating front lens cluster adds motion and depth by creating flower and kaleidoscope-style visuals, while individual pixel control makes it possible to build color waves, chase patterns, and animated effects. For faster programming, the fixture also includes 50 preset pixel patterns.

As part of ColorKey’s Creator Series, the ColorKey Creator BX12 Wash includes a multicolor UHX™ halo around the lenses for consistent visual identity with compatible UHX™ fixtures. It also includes practical touring and install features such as quick-release brackets, PowerCon locking power in/out, DMX Hold, RDM support, and a color LCD display for easy navigation.

Creator BX12 Wash Features

• 480W LED moving head Bee-Eye wash fixture
• 12 x 40W RGBW LEDs
• Motorized zoom for wide wash and narrow beam effects
• Individual pixel control for independent color and intensity per LED segment
• Continuous bi-directional front lens cluster rotation
• Flower, kaleidoscope, and breathing wash-style effects
• 50 preset pixel patterns for quick chase and animated looks
• 84 x 0.2W RGB UHX™ halo LEDs with built-in dynamic effects
• Independent dimmer and strobe control for wash and halo
• Frame Set position control with Frame Forward and Frame Up modes
• DMX Hold maintains current values if DMX signal is lost

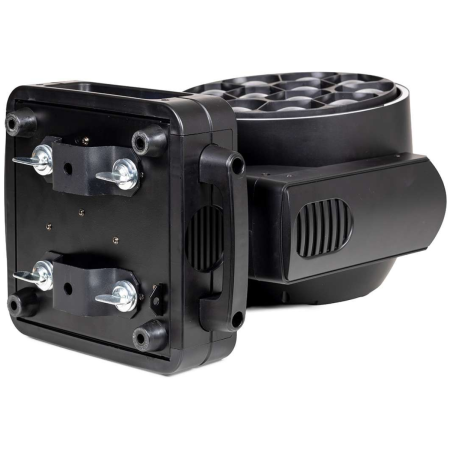

• Quick-release bracket included for faster setup and teardown
• Color LCD display for intuitive fixture navigation
• DMX512, Auto, Master/Slave, Sound Active, and RDM control modes

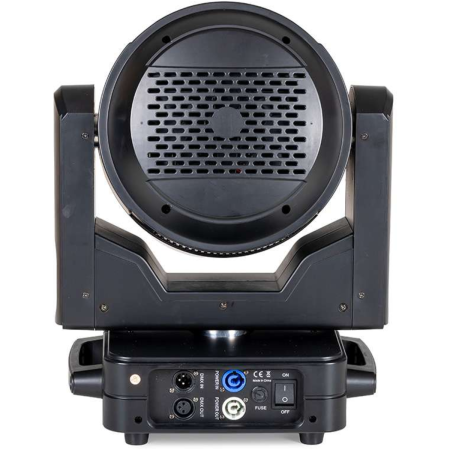

• PowerCon locking power input and output
• 3-pin DMX input and output

Creator BX12 Wash Specifications

• SKU: CKU-5170
• Light Source: 12 x 40W RGBW LEDs
• Halo: 84 x 0.2W RGB LEDs with built-in dynamic effects
• Color Temperature: 2800K to 8500K
• Illuminance at 5°: 111,700 lux @ 2m
• Illuminance at 18°: 17,600 lux @ 2m
• Zoom Beam Angle: 5° to 25°
• Wash Field Angle: 30°
• Strobe: 1 to 30 Hz
• Dimmer: 0–100% linear dimming
• Movement: Pan 540° + fine, Tilt 250° + fine
• DMX Channel Modes: 25 / 73 CH
• Control Modes: DMX512, Auto, Master/Slave, Sound Active, RDM
• Display: 1.77-inch LCD display
• Power Connection: PowerCon locking in/out
• DMX Connectors: 3-pin DMX in/out
• LED Lifetime: 50,000 hours
• Max Power Consumption: 500W
• Voltage: AC100-240V, 50/60Hz
• Dimensions: 13.2 x 9.8 x 15.9 in (335 x 250 x 405 mm)
• Weight: 29 lb (13.15 kg)

Colorkey CKU-5170 (Color Key Creator BX12 Wash)
