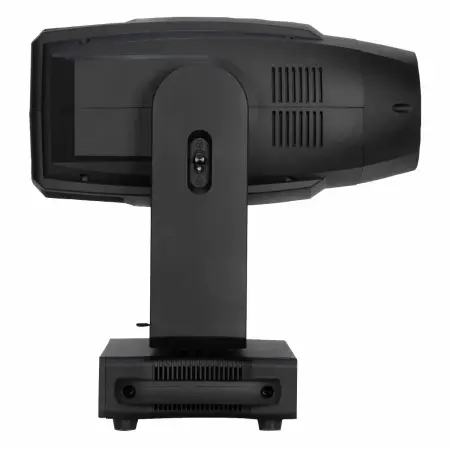

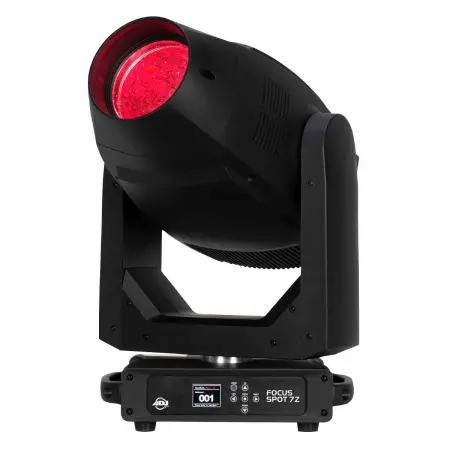

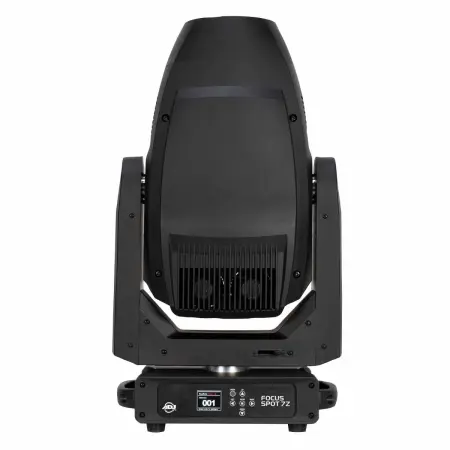

ADJ Focus Spot 7Z

Part of ADJ's popular Focus Series of LED-powered moving head luminaires, the Focus Spot 7Z is a potent and feature-rich spot fixture. Its light source is an efficient 420W white (8,000K) LED engine, which has an average operational life of 20,000 hours. Focused through precision-engineered optics, it allows the fixture to generate a bright, punchy and even output of 20,000 Lumens.

An exhaustive collection of beam-shaping tools is packed into the Focus Spot 7Z, equipping lighting designers to fully unleash their creative potential. This begins with an advanced color selection system which combines a variable CMY and CTO (2,700K to 8,000K) color mixing system with a color wheel that features seven dichroic slots (including High CRI and CRB filters). The fixture features two independent GOBO wheels, each of which incorporate seven slots for interchangeable, indexed-rotating patterns. In addition, it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6° ~ 48°), focus and iris are integrated into the optical system as are two separate frost filters (Light to blur GOBO patterns and Heavy to generate a wash output). Weighting in at only 51.7 lbs. (23.45kg), the Focus Spot 7Z is lighter and has a smaller footprint than other leading hybrid fixtures in its class.

FEATURES:

4-Facet Circular & 6-Facet Linear Rotating Prisms .
2 Frost Filters (Light & Heavy).
Animation Wheel (Rotatable and Indexable).
Motorized Zoom (6° ~ 48°).
Motorized Focus.
Motorized Iris.
Electronic Dimming & Strobe (1-20Hz).
Full CMY color mixing.
Variable CTO (2,700K to 8,000K).
Colors Wheel with 7 dichroic slots.
Includes High CRI and CTB Filters.
CMY and Color Wheel preset macros.

SPECIFICATIONS:

Source:
420W White LED Engine
20,000 Hour Average LED Life

Photometric Data:
20,000 Total Lumens
8,000K, >73CRI (without CRI Filter)
7,700K >85CRI (with CRI Filter)
56,513 LUX @16.4' (5m) (6° Beam)
1,585 LUX @16.4' (5m) (48° Beam)

Effects:
4-Facet Circular & 6-Facet Linear Rotating Prisms
2 Frost Filters (Light & Heavy)
Animation Wheel (Rotatable and Indexable)
Motorized Zoom (6° ~ 48°)
Motorized Focus
Motorized Iris
Electronic Dimming & Strobe (1-20Hz)

Color:
Full CMY color mixing
Variable CTO (2,700K to 8,000K)
Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
CMY and Color Wheel preset macros

Gobos:
(2) Gobo Wheels
#1 - (7) Interchangeable Rotating-Indexing Gobos
#2 - (7) Interchangeable Rotating-Indexing Gobos

Control/Connections:
(3) DMX Channel Modes (30 / 34 / 45)
DMX512, ArtNet and sACN protocols
Aria XT Wireless DMX (Let's Say WiFLY For now)
RDM (Remote Device Management) compliant
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5-pin XLR DMX In/Out
RJ45 In/Out
Locking In/Out power connections
Safety eye
With Wired Digital Communication Network

Pan/Tilt:
Pan: 540-degrees
Tilt: 270-degrees
Pan & Tilt Locks

Size/Weight:
Length: 14.73" (374mm)
Width: 9.22" (234mm)
Vertical Height: 24.81" (630mm)
Weight: 51.7 lbs. (23.45kg)

Electrical/Thermal:
AC 100-240V - 50/60Hz
Max Power Consumption: 524W
Max ambient temperature: 14°F to 113°F (-10°C to 45°C)
Max housing temperature: 136°F (58°C)

Technical Data:
DB Rating @ 3ft.: 49dB
BTU: 0.53
BTU/H: 1,909.60

Apprivals/Ratings:
CE | ETL (Pending)
IP20

American DJ Focus Spot-7Z (ADJ FocusSpot 7Z)
